PPX 46 Z (967721901-00) - Poulan Pro 46" Zero-Turn Mower (2018-01) IGNITION SYSTEM Parts Diagram

46" Zero-Turn Mower

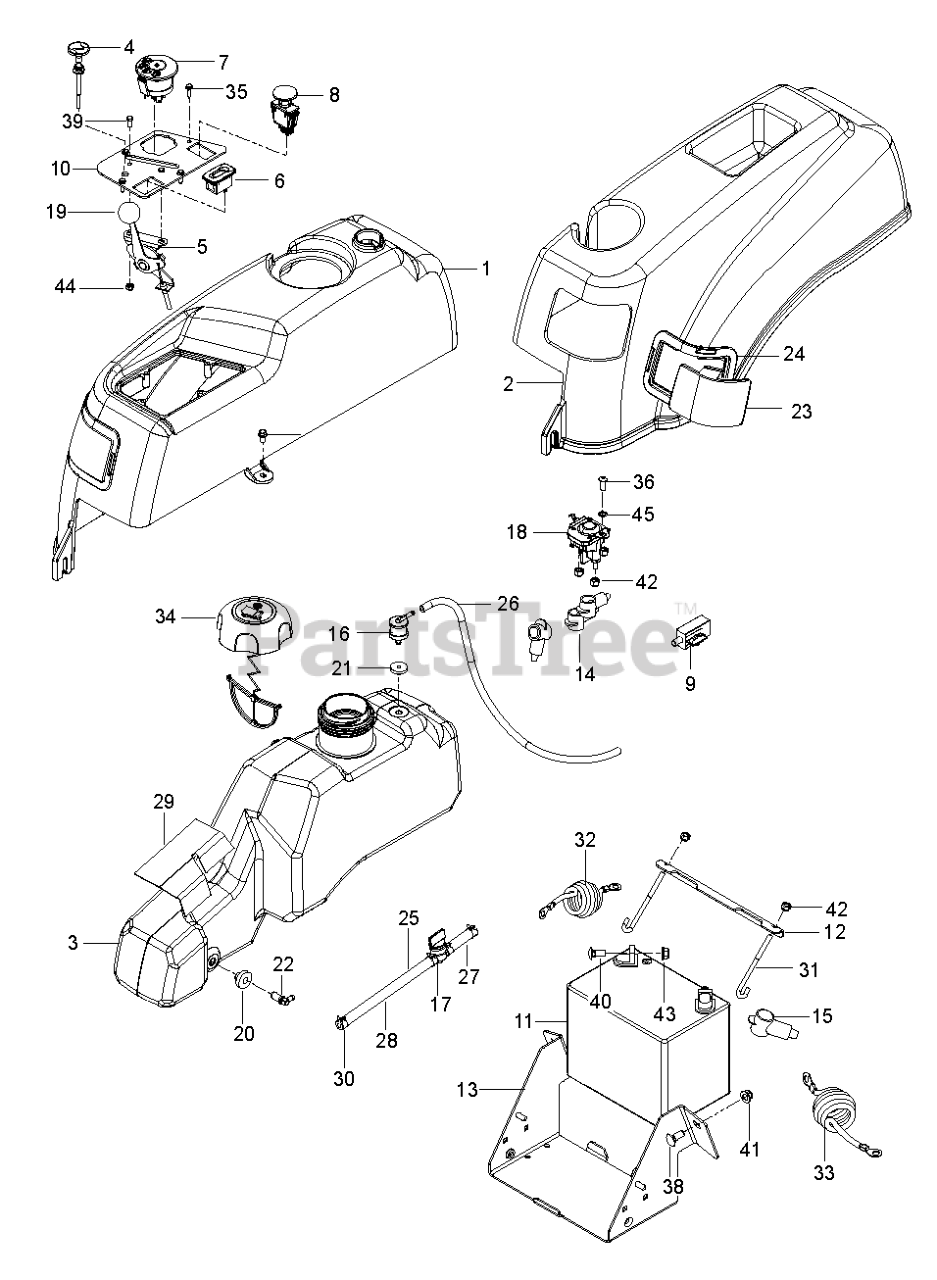

IGNITION SYSTEM Parts Diagram

  • Title

1

Poulan 578179002

FENDER.RT.BLK.3IN.FUEL.NECK

$85.99

$

Usually ships in 3-10 days

0

2

Poulan 576370501

FENDER, LT, BLK

$85.99

$

In Stock, only 1 left!

0

3

Poulan 589926101

FUEL TANK ASSY LARGE 3 NECK TH

$206.99

$

Usually ships in 3-10 days

0

4

Poulan 539112439

CHOKE CABLE

$34.99

$

In Stock, only 1 left!

0

5

Poulan 539112734

THROTTLE CABLE

$34.99

$

In Stock, Qty 11

0

6

Poulan 586161801

GUAGE.SRVCMNDR.HRMTR.
(Superseded to 594919101)

$24.99

$

In Stock, Qty 5

0

7

Poulan 539107541

IGNITION SWITCH
(Superseded to 532175566)

$26.99

$

In Stock, only 4 left!

0

8

Poulan 582107602

RP SWITCH.PTO.TERMINAL.STD.RED
(Superseded to 582107601)

$28.99

$

In Stock, Qty 8

0

9

Poulan 532197802

SWITCH.INTRLCK.CLUTCH.

$18.99

$

In Stock, Qty 7

0

10

Poulan 584254602

CONTROL PLATE RZ STD X431

$4.99

$

Usually ships in 3-10 days

0

11

Poulan 539102436

BATTERY, 12 V 330 AMP TBR
(Superseded to 579411601)

$

$

Not available

12

Poulan 510030003

BRACKET.PNT.MOUNT.BATTERY.EDIP
(Superseded to 510030001)

$51.99

$

In Stock, only 1 left!

0

13

Poulan 582609602

BOX.PNT.BATTERY.RZ.EDIP

$37.99

$

Usually ships in 3-10 days

0

14

Poulan 532131563

Terminal Cover (For Solenoid) (AYP part number)
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

15

Poulan 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

16

Poulan 576618101

VALVE.FUEL.CHECK

$25.99

$

In Stock, Qty 17

0

17

Poulan 539916325

FUEL VALVE

$47.99

$

In Stock, only 1 left!

0

18

Poulan 582042801

SOLENOID.STARTER.BRASS.PLUNGER
(Superseded to 582042802)

$26.99

$

In Stock, Qty 16

0

19

Poulan 539133049

KNOB ROUND BALL

$18.99

$

In Stock, Qty 20+

0

20

Poulan 532003645

Bushing (Dana part number) (AYP part number)

$4.99

$

In Stock, only 2 left!

0

21

Poulan 532437492

GROMMET.ROV.SENTEC
(Superseded to 576618201)

$4.99

$

In Stock, Qty 20+

0

22

Poulan 532139277

Stem, Tank Fuel (AYP part number)

$8.99

$

In Stock, only 1 left!

0

23

Poulan 576371101

PANEL, LT

$6.49

$

In Stock, only 1 left!

0

Poulan 576371201

PANEL, RT, BLK

$6.49

$

In Stock, only 1 left!

0

24

Poulan 576370901

RING, LT BLK

$4.99

$

In Stock, only 1 left!

0

Poulan 576371001

RING, TRIM, RT-BLK

$4.99

$

In Stock, Qty 6

0

25

Poulan 586123904

FUEL.HOSE.SHUT.OFF.ASM.10".3"

$13.99

$

Usually ships in 3-10 days

0

26

Poulan 587044520

HOSE.3/16".VAPOR.LINE.20"LGTH

$

$

Not available

27

Poulan 587044803

HOSE.1/4".LOW.PERM.FUEL.LN.3"

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 587044810

HOSE.1/4".LOW.PERM.FUEL.LN.10"

$11.99

$

Usually ships in 3-10 days

0

29

Poulan 522559101

SHIELD, HEAT

$37.99

$

Usually ships in 3-10 days

0

30

Poulan 532123487

Clamp Hose Black (AYP part number)

$7.49

$

In Stock, only 1 left!

0

31

Poulan 588839401

HOOK.J.BATTERY

$4.99

$

In Stock, only 2 left!

0

32

Poulan 586108101

CABLE BATTERY GROUND RZ

$9.49

$

Usually ships in 3-10 days

0

33

Poulan 586108201

CABLE BATTERY POS RZ

$10.99

$

In Stock, only 2 left!

0

34

Poulan 585124802

CAP ASSY FUEL 3" BLACK

$18.99

$

In Stock, only 1 left!

0

35

Poulan 539110673

SCR #10-12X3/4 HEX WAS HD ZD

$4.99

$

Usually ships in 3-10 days

0

36

Poulan 539111229

SCR 1/4-20 X 5/8 BTN SKT HD ZD

$3.99

$

Usually ships in 3-10 days

0

37

Poulan 817490408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

38

Poulan 539990645

RHSNB 3/8C X 1
(Superseded to 595316801)

$4.99

$

In Stock, only 3 left!

0

39

Poulan 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

40

Poulan 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

41

Poulan 539976977

NUT 10-24 NYLOC
(Superseded to 596040801)

$3.99

$

In Stock, Qty 20+

0

42

Poulan 539976978

NUT 1/4-20 NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

43

Poulan 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

44

Poulan 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.99

$

In Stock, Qty 20+

0

45

Poulan 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 3 left!

0

Poulan 585727701

HARNESS.WIRING.RZ

$93.99

$

In Stock, only 1 left!

0

Poulan 532140401

Key, Molded (AYP part number)

$6.99

$

In Stock, Qty 7

0

Poulan 505280001

TIE WRAP, 8-3/8", W/CLIP

$3.99

$

Usually ships in 3-10 days

0
