PPX 20VA46 (960420206-00) - Poulan Pro Lawn Tractor (2017-10) STEERING Parts Diagram

Lawn Tractor

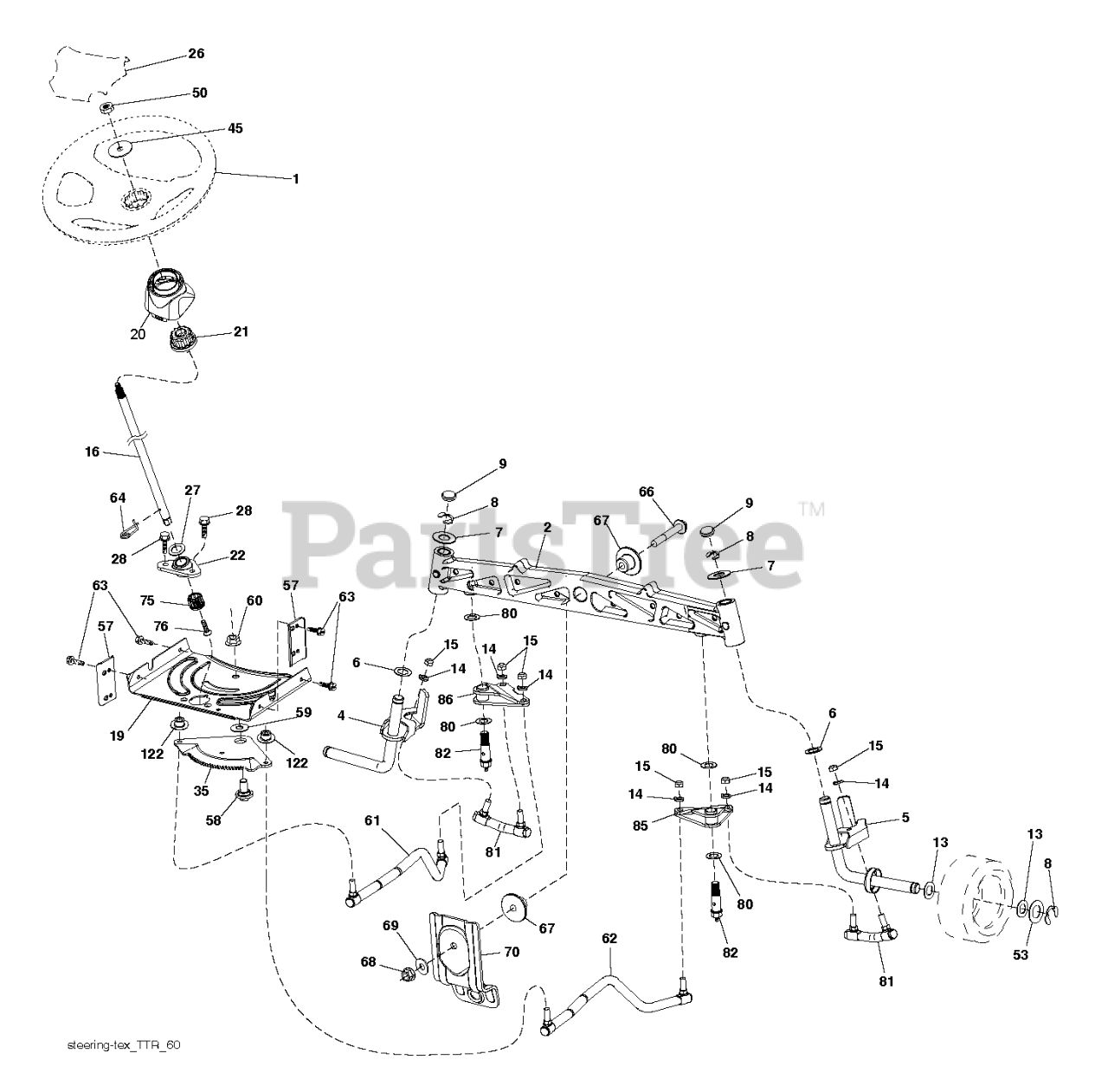

STEERING Parts Diagram

  • Title
1

Poulan 532424543

WHEEL.STEERING.HARD.RIM.BLAC

$43.99

$

In Stock, Qty 6

0

2

Poulan 532436870

RP SUBASM.AXLE.CAST.NZTR.
(Superseded to 583512701)

$206.99

$

Usually ships in 3-10 days

0

4

Poulan 532436873

SPINDLE WELDMENT.SPINDLE.LH.15
(Superseded to 583512801)

$50.99

$

In Stock, only 1 left!

0

5

Poulan 532436874

SPINDLE WELDMENT.SPINDLE.RH.15
(Superseded to 583512901)

$50.99

$

Usually ships in 3-10 days

0

6

Poulan 532124931

Bearing Race Thrust Harden (AYP part number)
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

7

Poulan 532121748

Washer 25/32 x 1-5/8 x 16 Gauge (AYP part number)

$4.99

$

In Stock, Qty 20+

0

8

Poulan 812000029

Ring, Klip #T5304-75 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 532121232

Cap Spindle Fr Top Blk (AYP part number)

$4.99

$

In Stock, Qty 9

0

13

Poulan 532121749

Washer 25/32 x 1-1/4 x 16 Gauge (AYP part number)

$3.49

$

Usually ships in 3-10 days

0

14

Poulan 539990118

SLW 3/8 STD
(Superseded to 596238701)

$4.99

$

In Stock, Qty 17

0

15

Poulan 873540600

Nut, Crownlock 3/8-24 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

16

Poulan 587016002

SHAFT.STEER.2HIGH.SPLND.PLATED
(Superseded to 587738904)

$40.99

$

In Stock, Qty 14

0

19

Poulan 532194729

PLATE.STEER.DDL.NLT/NG

$18.99

$

Usually ships in 3-10 days

0

20

Poulan 532424740

BOOT.STRNG.PREDATOR.YT/GT.428

$6.99

$

In Stock, only 1 left!

0

21

Poulan 586840201

ADAPTER.WHEEL.STEER.SPLND.ALUM
(Superseded to 587738905)

$9.49

$

In Stock, Qty 8

0

22

Poulan 585029802

BEARING.SHAFT.STEER.LOWER.625
(Superseded to 587738901)

$17.99

$

In Stock, only 4 left!

0

26

Poulan 532424691

INSERT, WHEEL STEERING

$7.99

$

In Stock, only 1 left!

0

27

Poulan 819211616

Washer 21/32 x 1 x 16 Gauge (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

28

Poulan 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

35

Poulan 532440770

GEAR GEAR.SECTOR.TEX.NZTR
(Superseded to 583551401)

$45.99

$

In Stock, only 1 left!

0

45

Poulan 587016401

WASHER.3/8ID.2-3/8OD.12GA.PLTD

$4.99

$

Usually ships in 3-10 days

0

50

Poulan 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

53

Poulan 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

57

Poulan 532407465

BRACKET.UPSTOP.TEX

$6.99

$

In Stock, only 1 left!

0

58

Poulan 532194747

BOLT.SHOULDER.SECTOR.P

$9.49

$

In Stock, only 3 left!

0

59

Poulan 532194748

WASHER.THURST.SECTOR.S

$7.49

$

In Stock, only 3 left!

0

60

Poulan 873971000

NUT FLANGE LOCK 5/8-11
(Superseded to 583612801)

$7.49

$

In Stock, only 1 left!

0

61

Poulan 532436884

LINK SUBASM.LINK.DRAG.LH.NZTR
(Superseded to 583513301)

$34.99

$

In Stock, only 2 left!

0

62

Poulan 532436885

TUBE TUBE
(Superseded to 583513401)

$

$

Not available

63

Poulan 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

64

Poulan 532199849

RETAINER.CLIP.SPRING.S

$6.49

$

In Stock, Qty 8

0

66

Poulan 871020748

BOLT HEX FGHD 7/16-14 X 3 SERR

$6.49

$

In Stock, only 4 left!

0

67

Poulan 532194737

BUSHING.PM.FRONT AXLE

$

$

Not available

68

Poulan 873900700

NUT.LOCK.FLANGE.7/16

$7.49

$

In Stock, Qty 13

0

69

Poulan 532199162

WASHER.1.5X.505X.118

$6.49

$

In Stock, only 1 left!

0

70

Poulan 585338801

BRACKET.FRT.DECK.SUSP.RR.MT431

$9.99

$

Usually ships in 3-10 days

0

75

Poulan 580683701

PINION.ZINC PLATED
(Superseded to 587738906)

$5.99

$

In Stock, only 2 left!

0

76

Poulan 580683601

SCREW HEAD SOCKET LRVB

$4.99

$

In Stock, only 1 left!

0

80

Poulan 532001370

Washer, Thrust 5/8 x 1.10 x 1/32 (AYP part number)

$6.49

$

In Stock, only 2 left!

0

81

Poulan 532436887

LINK SUBASM.LINK.CROSS.NZTR
(Superseded to 583513501)

$

$

Not available

82

Poulan 532442147

SUBASM;PIVOT;BOLT;NZTR

$7.99

$

In Stock, only 2 left!

0

85

Poulan 532441873

PIVOT SUBASM.PIVOT.RH.NZTR
(Superseded to 583561101)

$

$

Not available

86

Poulan 532441872

PIVOT SUBASM.PIVOT.LH.NZTR
(Superseded to 583561001)

$40.99

$

In Stock, only 1 left!

0

122

Poulan 532444962

CAP.GEAR.SECTOR.TEX
(Superseded to 583576601)

$6.49

$

In Stock, only 3 left!

0
