PPX 19A46 (960420205-00) - Poulan Pro Lawn Tractor (2017-10) DRIVE Parts Diagram

Lawn Tractor

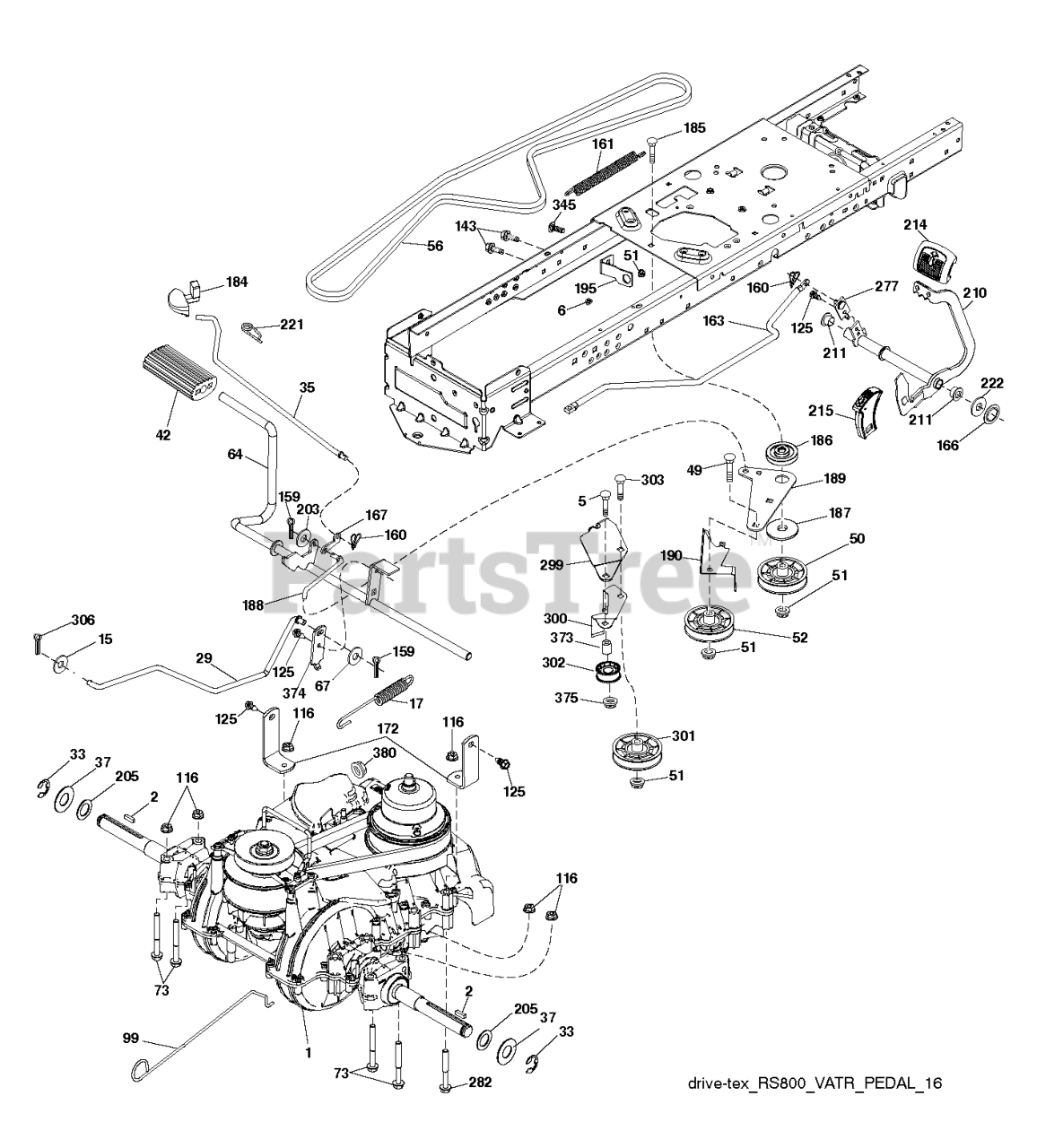

DRIVE Parts Diagram

  • Title

1

Poulan 000000000

Note: TRANSAXLE, VARIATOR, SD PEDAL (590277601)

$

$

Not available

2

Poulan 532123583

Key, Square 2.5 x .1845/.1865 (AYP part number)

$4.99

$

In Stock, Qty 7

0

5

Poulan 874760636

Bolt, Hex 3/8-16 UNC x 2-1/4 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

6

Poulan 532124028

Bushing Snap Nyl Blk Fuel Line

$5.99

$

In Stock, only 3 left!

0

15

Poulan 819131316

Washer 13/32 x 1-3/16 x 12 Gauge (AYP part number)

$4.99

$

In Stock, Qty 5

0

17

Poulan 501487101

SPRING.BRAKE.VARIATOR

$5.99

$

In Stock, only 1 left!

0

29

Poulan 584823102

ROD.BRAKE.VARIATOR.SD3.X431

$11.99

$

In Stock, only 1 left!

0

33

Poulan 812000001

E-ring #5133-75 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

35

Poulan 590605902

ROD ROD.PARKINGBRAKE.GT.HUSQ/P

$9.49

$

In Stock, only 1 left!

0

37

Poulan 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

42

Poulan 532124872

Cover Pedal Blk Round (AYP part number)
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

49

Poulan 872110614

Bolt, Carriage 3/8-16 x 1-3/4 Grade 5 (AYP part number)
(Superseded to 596136201)

$4.99

$

In Stock, only 1 left!

0

50

Poulan 532194327

IDLER.FLAT.910.OFFSET

$20.99

$

In Stock, Qty 12

0

51

Poulan 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Poulan 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

Usually ships in 3-10 days

0

56

Poulan 532197253

BELT.DRIVE.MOWER.TEX.42"
(Superseded to 592855001)

$39.99

$

In Stock, Qty 8

0

64

Poulan 589671401

SHAFT VARIATOR PEDAL CROSS

$56.99

$

Usually ships in 3-10 days

0

67

Poulan 582580101

WASHER.NYLON;13/32X13/16X.109

$5.99

$

Usually ships in 3-10 days

0

73

Poulan 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

99

Poulan 532435935

ROD.BYPASS.VARIATOR.GEN2

$6.49

$

In Stock, only 1 left!

0

116

Poulan 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

125

Poulan 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

143

Poulan 539990858

SCR 5/16-18 X 1/2 SELFTAP ZN

$3.99

$

Usually ships in 3-10 days

0

159

Poulan 876020412

Pin Cotter 1/8 x 3/4 CAD. (AYP part number)
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

160

Poulan 532169484

RETAINER CLIP
(Superseded to 596029401)

$4.99

$

In Stock, only 1 left!

0

161

Poulan 532105709

X Spring Return Clutch 6 75 (AYP part number)

$11.99

$

In Stock, only 3 left!

0

163

Poulan 587847902

ROD.CONTROL.PEDAL.VARIATOR
(Superseded to 587847901)

$34.99

$

In Stock, only 1 left!

0

166

Poulan 532429164

NUT.PUSH.625

$6.49

$

In Stock, only 2 left!

0

167

Poulan 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

172

Poulan 583974201

STRAP.TORQUE.VARIATOR

$6.99

$

In Stock, only 1 left!

0

184

Poulan 587653701

HANDLE.PARKING.BRAKE.H (BLK)
(Superseded to 532196439)

$12.99

$

In Stock, Qty 20+

0

185

Poulan 872110622

Bolt, Carriage 3/8 - 16 x 2-3/4 (AYP part number)

$4.99

$

In Stock, Qty 10

0

186

Poulan 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 11

0

187

Poulan 819133210

Washer 12/32 x 2 x 10 Gauge (AYP part number)
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

188

Poulan 582217001

LINK.CLUTCH.GROUND DRIVE.LONG
(Superseded to 532194323)

$5.99

$

In Stock, Qty 10

0

189

Poulan 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$

$

Not available

190

Poulan 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, only 1 left!

0

195

Poulan 581504601

BRACKET.BRAKE.BRAKE.VAR.SD

$7.99

$

Usually ships in 3-10 days

0

203

Poulan 819111116

Washer, Nut Lock Hex w/Ins. 5/6-18 (AYP part number)
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

205

Poulan 532121748

Washer 25/32 x 1-5/8 x 16 Gauge (AYP part number)

$4.99

$

In Stock, Qty 20+

0

210

Poulan 588921001

PEDAL.ASM.ROCKET.VARIATOR.LT

$40.99

$

Usually ships in 3-10 days

0

211

Poulan 532120183

Bearing Nylon Blk 629 Id (AYP part number)

$6.99

$

In Stock, only 4 left!

0

214

Poulan 532421263

PEDAL.FORWARD.PAD.TEX

$8.99

$

In Stock, only 1 left!

0

215

Poulan 532448254

CAP.PEDAL.REVERSE.VARIATOR

$6.99

$

Usually ships in 3-10 days

0

221

Poulan 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, only 3 left!

0

222

Poulan 879212010

WASHER 21/32 X 1-1/4 X 10 GA.

$6.49

$

In Stock, only 1 left!

0

277

Poulan 532448500

SUBASM.LINK.ROCKER.PEDAL

$15.99

$

In Stock, only 1 left!

0

282

Poulan 874490548

BOLT HEX FLGHD 5/16-18X3 GR. 5

$6.49

$

In Stock, only 1 left!

0

299

Poulan 532415683

BRACKET.MOUNT.IDLERS

$10.99

$

In Stock, only 2 left!

0

300

Poulan 532415681

KEEPER.IDLERS.REAR.VARIATOR

$6.49

$

Usually ships in 3-10 days

0

301

Poulan 532415680

PULLEY.IDLER.V-GROOVE

$31.99

$

In Stock, Qty 6

0

302

Poulan 581420501

PULLEY.IDLER.FLAT.2"

$26.99

$

In Stock, only 3 left!

0

303

Poulan 872110618

Bolt, Carriage 3/8-16 x 2 1/4 (AYP part number)

$6.49

$

In Stock, only 2 left!

0

306

Poulan 876020416

Pin Cotter 1/8 X 1 Cad (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

345

Poulan 872110606

Bolt Rdhd Sht Sqnk 3/8 - 16 x 3/4 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

373

Poulan 581461801

SPACER.IDLER

$4.99

$

In Stock, only 2 left!

0

374

Poulan 581475201

ARM.CONTROL.BRAKE

$6.49

$

Usually ships in 3-10 days

0

375

Poulan 873680600

Nut, Hex, Lock Hex w/wsh 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

380

Poulan 582478601

NUT.FLG.NYLOCK.1/4-20.GR.G.ZY

$

$

Not available
