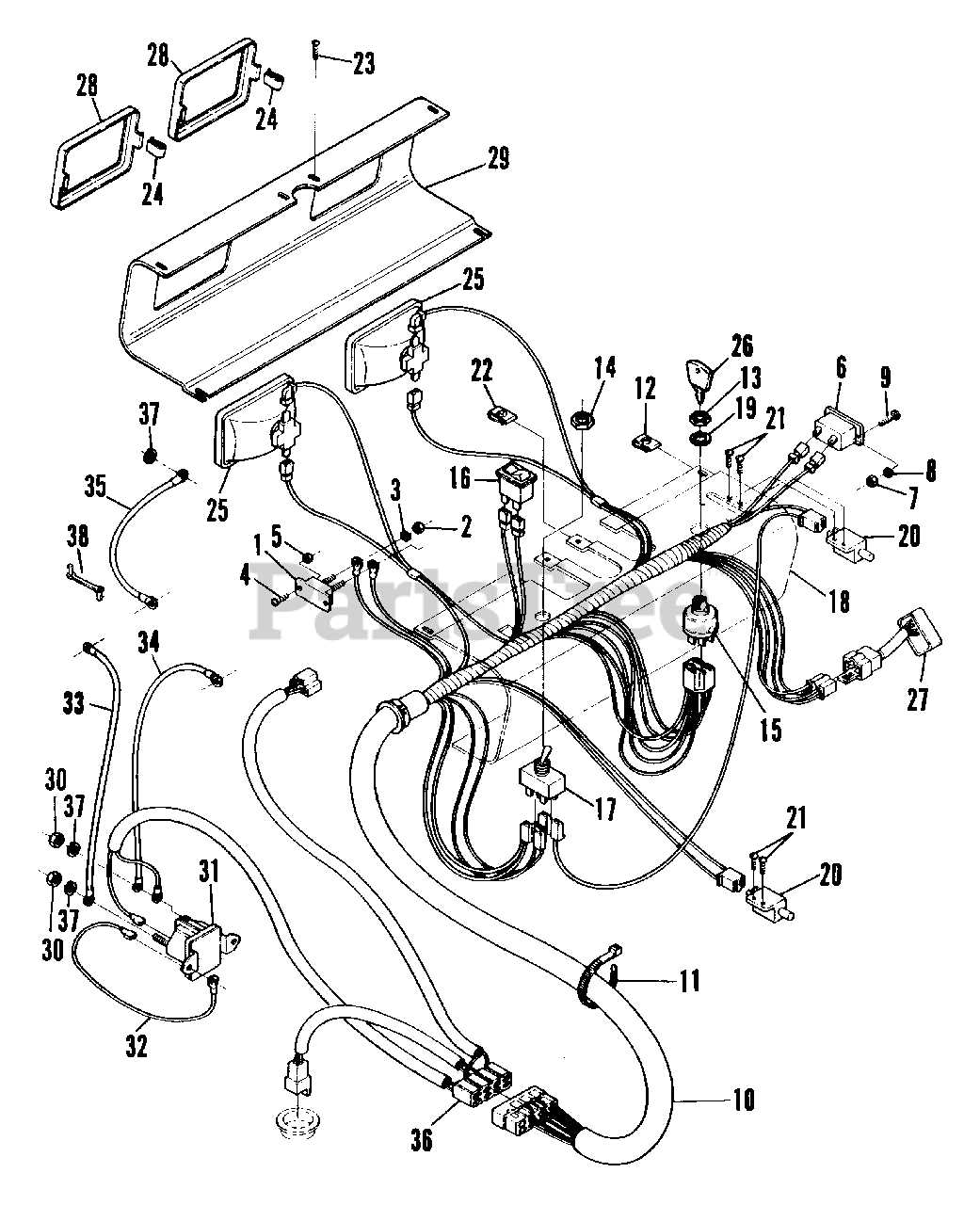

PPU 180KE (88940) - Snapper Walk-Behind Mower, 18hp Wiring Harness Assembly Parts Diagram

Walk-Behind Mower, 18hp

Wiring Harness Assembly Parts Diagram

  • Title

1

Snapper 7013941

CIRCUIT BREAKER
(Superseded to 1665238SM)

Note: (Includes Items 2 and 3)

$14.99

$

In Stock, Qty 20+

0

2

Snapper 7090013

NUT, #10-32

$

$

Not available

3

Snapper 7090011

LOCKWASHER, #10,Internal Tooth
(Superseded to 7090011SM)

$3.99

$

In Stock, only 1 left!

0

4

Snapper 7090610

MACHINE SCREW, #10-24 x 1/2

$

$

Currently unavailable

5

Snapper 7091053

NUT, Keps, #10-24
(Superseded to 7091053YP)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 7060788

HOURMETER, LT

Note: Was 15277

$

$

Not available

7

Snapper 7090925

NUT, MS #6-32
(Superseded to 7090925YP)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 7090926

WASHER, #6, Internal Tooth
(Superseded to 7090926YP)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7090927

MACHINE SCREW, #6 C x 1/2, Round Head
(Superseded to 7090927YP)

$2.49

$

Usually ships in 2-12 days

0

10

Snapper 7017742

HARNESS WIRING
(Superseded to 7017742YP)

$94.99

$

Usually ships in 2-12 days

0

11

Snapper 7012080

CABLE TIE
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

12

Snapper 7015098

CLIP NUT

$

$

Currently unavailable

13

Snapper 7012685

NUT, 5/8"-32
(Superseded to 7012685YP)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 7012686

NUT, 1/2"-27, HT
(Superseded to 7012686YP)

$5.49

$

Usually ships in 2-12 days

0

15

Snapper 7027698

KEY SWITCH
(Superseded to 7027698YP)

Note: Was 18562

$32.99

$

In Stock, Qty 9

0

16

Snapper 7023187

SWITCH-ROCKER SPST
(Superseded to 7023187YP)

$14.99

$

In Stock, only 1 left!

0

17

Snapper 7019545

TOGGLE SWITCH
(Superseded to 7019545YP)

$44.99

$

Usually ships in 2-12 days

0

18

Snapper 36340

PANEL, Rear

$

$

Currently unavailable

19

Snapper 7091546

WASHER, 5/8", Internal Tooth
(Superseded to 1960547SM)

Note: Was 90880

$4.49

$

In Stock, only 4 left!

0

20

Snapper 7019098

SWITCH
(Superseded to 1723552SM)

$

$

Not available

21

Snapper 7077873

SCREW, #12-14 x 1/2, Hex Flat Head, Self-Tapping
(Superseded to 7077873YP)

$3.49

$

Usually ships in 2-12 days

0

22

Snapper 7091056

CLIP NUT

$

$

Not available

23

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: Was 90307

$3.49

$

In Stock, Qty 11

0

24

Snapper 7015664

CLIP, Headlight
(Superseded to 7015664YP)

$4.49

$

Usually ships in 2-12 days

0

25

Snapper 7016221

LIGHT, Head
(Superseded to 7016221YP)

$88.99

$

Usually ships in 2-12 days

0

26

Snapper 7073406

KEY, Switch (With Cover)
(Superseded to 1717163SM)

Note: Was 23504

$8.99

$

In Stock, Qty 20+

0

27

Snapper 7016475

MODULE

$

$

Not available

28

Snapper 7018828

MOUNTING BEZEL

$

$

Currently unavailable

29

Snapper 36341

PANEL, Front

$

$

Currently unavailable

30

Snapper 7091576

NUT, 1/4" Hex C
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 20+

0

31

Snapper 7075622

SOLENOID
(Superseded to 1755382YP)

Note: Was 18604

$29.99

$

In Stock, Qty 20+

0

32

Snapper 7016498

CABLE, Solenoid 6" (14 HP Kohler/18 HP Kohler)

$

$

Currently unavailable

33

Snapper 7023149

CABLE, 28" (14 HP Kohler)
(Superseded to 7023149YP)

$6.49

$

Usually ships in 2-12 days

0

Snapper 7016835

CABLE, 13" (18 HP Kohler)
(Superseded to 7016835YP)

$8.49

$

In Stock, only 1 left!

0

34

Snapper 7016835

CABLE, 13" (14 HP Kohler/18 HP Kohler)
(Superseded to 7016835YP)

$8.49

$

In Stock, only 1 left!

0

35

Snapper 7073962

CABLE, 23" (14 HP Kohler/18 HP Kohler)
(Superseded to 7073962YP)

Note: Was 16836

$9.49

$

Usually ships in 2-12 days

0

36

Snapper 7017740

HARNESS (14 HP Kohler)
(Superseded to 7017740YP)

$35.99

$

Usually ships in 2-12 days

0

Snapper 7017741

HARNESS (18 HP Kohler)

$

$

Not available

37

Snapper 7090053

WASHER, 1/4" Int. Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 7

0

38

Snapper 7014451

WIRE TIE (14 HP Kohler)
(Superseded to 7014451YP)

$3.49

$

Usually ships in 2-12 days

0
