PPU 180KE (88940) - Snapper Walk-Behind Mower, 18hp 52" Mower, Front Deck Parts Diagram

Walk-Behind Mower, 18hp

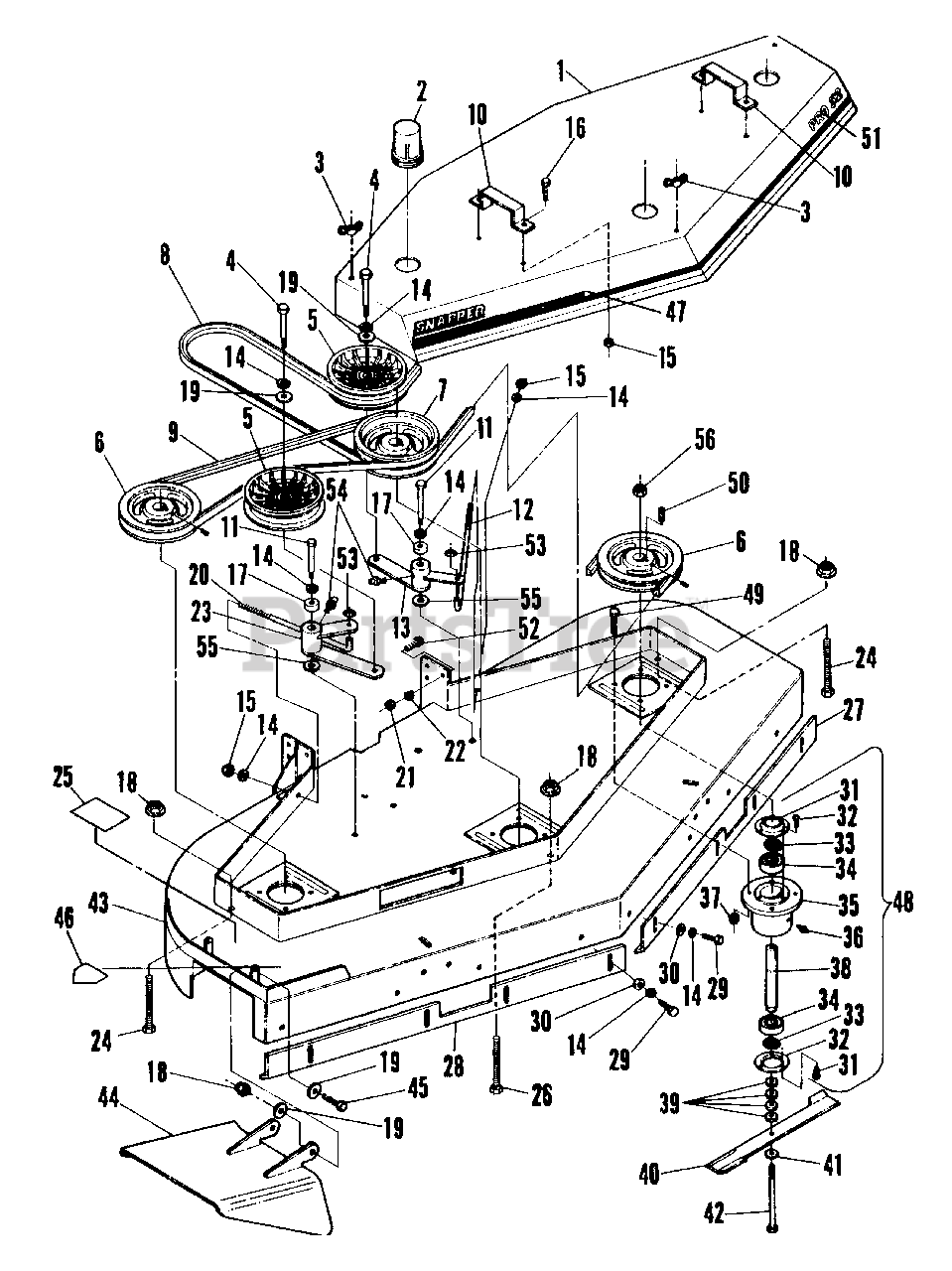

52" Mower, Front Deck Parts Diagram

  • Title

1

Snapper 52442

HOOD w/Decals 52

$

$

Currently unavailable

2

Snapper 7019248

CAP, Spindle
(Superseded to 7019248YP)

$5.99

$

Usually ships in 2-12 days

0

3

Snapper 7091049

WING-NUT, 3/8-16 Nyloc
(Superseded to 7091049SM)

$5.49

$

In Stock, only 2 left!

0

4

Snapper 7091111

SCREW, 3/8-16 x 1-3/4" Hex Head Cap, Grade 8

$

$

Not available

5

Snapper 7024761

PULLEY, Idler
(Superseded to 7024761YP)

Note: Was 19160

$76.99

$

Usually ships in 2-12 days

0

6

Snapper 7019317

PULLEY, w/Set Screws

$

$

Not available

7

Snapper 7019320

PULLEY, Double w/Set Screws
(Superseded to 7019320YP)

$193.99

$

Usually ships in 2-12 days

0

8

Snapper 7016102

BELT, Engine to Deck
(Superseded to 7016102YP)

$51.99

$

Usually ships in 2-12 days

0

9

Snapper 7016101

BELT, Cutter Spindle
(Superseded to 7016101YP)

$44.99

$

Usually ships in 2-12 days

0

10

Snapper 7033189

HANDLE, Hood

$

$

Currently unavailable

11

Snapper 7091044

SCREW, 3/8-26 x 3-1/4" Hex Head Cap, Grade 5

$

$

Not available

12

Snapper 7017161

ROD, Belt Adjusting
(Superseded to 7017161YP)

$32.99

$

Usually ships in 2-12 days

0

13

Snapper 7040655

ARM, Engine to Deck Idler Weldment

$

$

Not available

14

Snapper 7090118

WASHER, 3/8" Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

15

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

16

Snapper 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap, Grade 5
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

17

Snapper 7016173

SPACER, Pivot
(Superseded to 7016173YP)

$6.99

$

Usually ships in 2-12 days

0

18

Snapper 7091619

NUT, 3/8-16 Hex Flange lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

19

Snapper 7090517

WASHER, 3/8" Flat
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

20

Snapper 7016886

ROD

$

$

Not available

21

Snapper 7091316

NUT, 1/2-13 Hex
(Superseded to 703340)

Note: Was 90258

$7.99

$

In Stock, only 1 left!

0

22

Snapper 90252

WASHER, 1/2" Lock

$

$

Currently unavailable

23

Snapper 7040654

ARM, Blade to Blade Idler Weldment

$

$

Not available

24

Snapper 7027169

TAP BOLT, 3/8 x 5"
(Superseded to 7027169YP)

Note: Was 91132

$20.99

$

Usually ships in 2-12 days

0

25

Snapper 7076533

DECAL, Caution

$

$

Not available

26

Snapper 7091131

TAP BOLT, 3/8 x 4"
(Superseded to 7091131YP)

$10.99

$

Usually ships in 2-12 days

0

27

Snapper 38511

SKIRT, Front L.H.

$

$

Currently unavailable

28

Snapper 38512

SKIRT, Front R.H.

$

$

Currently unavailable

29

Snapper 7091086

SCREW, 3/8-16 x 3/4" Hex Head Cap, Grade 5
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

30

Snapper 7091047

WASHER, 3/8" Flat

$

$

Not available

31

Snapper 7019096

CAP, Cutter Housing
(Superseded to 7019096YP)

$33.99

$

Usually ships in 2-12 days

0

32

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap
(Superseded to 704060)

Note: Was 91034

$3.49

$

In Stock, Qty 9

0

33

Snapper 7023548

RING, Retaining
(Superseded to 7023548YP)

$3.99

$

Usually ships in 2-12 days

0

34

Snapper 7019125

BEARING, Single Seal
(Superseded to 7019125YP)

$30.99

$

Usually ships in 2-12 days

0

35

Snapper 7027685

HOUSING, Cutter
(Superseded to 7027685YP)

Note: Was 22158

$85.99

$

Usually ships in 2-12 days

0

36

Snapper 7076997

FITTING, 1/8" NPT Grease

$

$

Currently unavailable

37

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

38

Snapper 7019189

SPINDLE, Cutter
(Superseded to 7019189YP)

$63.99

$

Usually ships in 2-12 days

0

39

Snapper 7076436

SPACER, Blade
(Superseded to 7076436YP)

$7.49

$

In Stock, only 4 left!

0

40

Snapper 7075751

BLADE, 18" High Lift
(Superseded to 7075751BZYP)

Note: Was 17037

$27.99

$

In Stock, only 3 left!

0

41

Snapper 7016440

WASHER, 5/8" Bevel
(Superseded to 7016440SM)

$7.99

$

In Stock, Qty 20+

0

42

Snapper 7016447

SCREW, 5/8-18 x 8-1/2 Hex Head Cap, Grade 5

$

$

Not available

43

Snapper 7040648

DECK, 52" Mowing

$

$

Currently unavailable

44

Snapper 40652

DEFLECTOR, Chute

$

$

Currently unavailable

45

Snapper 7091304

SCREW, 3/8-16 x 1" Hex Head Cap, Grade 5
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

46

Snapper 7013010

DECAL, Warning
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 10

0

47

Snapper 7017823

DECAL, 52 Hood

$

$

Currently unavailable

48

Snapper 7052569

HOUSING, Asy. Cutter

Note: (Incl. Items 31 thru 36 & 38)

$

$

Currently unavailable

49

Snapper 7091328

SCREW, 3/8-16 x 1-1/4" Hex Head Cap, Grade 5
(Superseded to 703871)

Note: Was 76941

$4.99

$

Usually ships in 2-12 days

0

50

Snapper 7091033

KEY, Spindle

Note: Was 16375

$

$

Not available

51

Snapper 7016912

DECAL, Pro 52

$

$

Currently unavailable

52

Snapper 7090622

BOLT, 1/2-13 x 1-1/4" Hex Flange Lock
(Superseded to 7090622YP)

$4.99

$

Usually ships in 2-12 days

0

53

Snapper 7013946

RETAINER, 3/8" Rod
(Superseded to 7013946YP)

$3.99

$

Usually ships in 2-12 days

0

54

Snapper 7076998

FITTING, Grease
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

55

Snapper 7016561

BUSHING, 1" x 14 Ga. Machine
(Superseded to 7016561YP)

$5.49

$

In Stock, Qty 5

0

56

Snapper 7076980

NUT, 5/8-18 Hex
(Superseded to 7076980YP)

$3.99

$

In Stock, Qty 7

0
