PPU 180KE (88940) - Snapper Walk-Behind Mower, 18hp 18 HP Engine Subassembly Parts Diagram

Walk-Behind Mower, 18hp

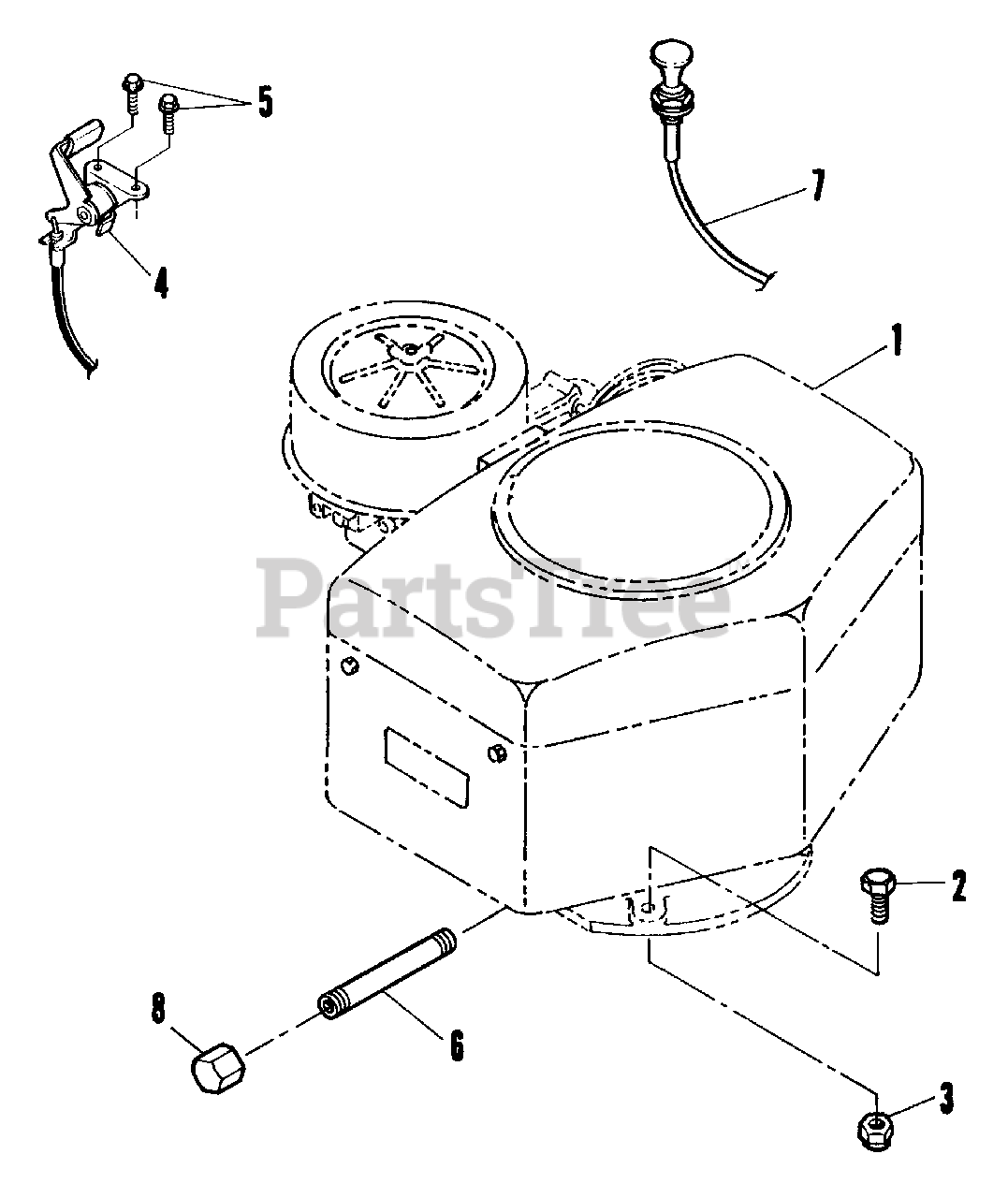

18 HP Engine Subassembly Parts Diagram

  • Title

1

ENGINE, 18 HP Kohler (Kohler MV18S PS-58539)

$

$

Not available

2

Snapper 7091540

SCREW, 5/16 C x 1 1/2, Hex Cap, Gr. 5
(Superseded to 703906)

Note: Was 91066

$4.99

$

In Stock, only 4 left!

0

3

Snapper 7091298

NUT, 5/16-18 Lock
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0

4

Snapper 7016510

THROTTLE, 18 H.P.Kohler
(Superseded to 7016510YP)

$20.99

$

Usually ships in 2-12 days

0

5

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: Was 90307

$3.49

$

In Stock, Qty 9

0

6

Snapper 7017783

TUBE, Oil Drain

$

$

Currently unavailable

7

Snapper 7016511

CHOKE ASSEMBLY
(Superseded to 7016511YP)

$69.99

$

Usually ships in 2-12 days

0

8

Snapper 7017814

CAP, Oil Drain

$

$

Currently unavailable
