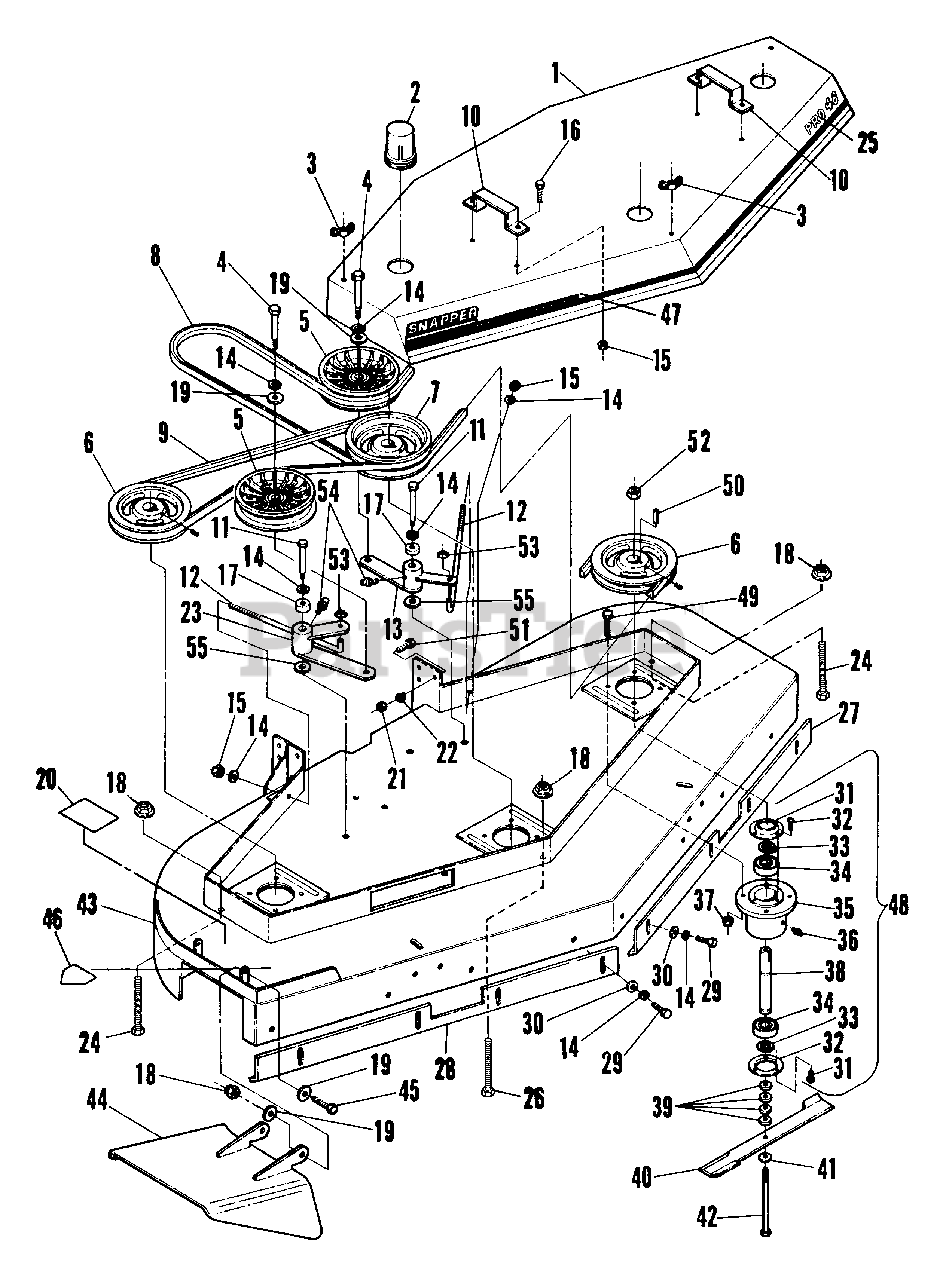

PPU 140KVE (80116) - Snapper Walk-Behind Mower, 14hp 48" Mower, Front Deck Parts Diagram

Walk-Behind Mower, 14hp

48" Mower, Front Deck Parts Diagram

  • Title

1

Snapper 7052441

HOOD w/DECALS 48

$

$

Currently unavailable

2

Snapper 7019248

CAP, Spindle
(Superseded to 7019248YP)

$5.99

$

Usually ships in 2-12 days

0

3

Snapper 7091049

NUT, 3/8"-16 Wing
(Superseded to 7091049SM)

$5.49

$

In Stock, only 2 left!

0

4

Snapper 7091111

SCREW, 3/8"-16 x 1 3/4" Hex Head Cap

$

$

Not available

5

Snapper 7024761

PULLEY, Idler
(Superseded to 7024761YP)

Note: Was 19160

$76.99

$

Usually ships in 2-12 days

0

6

Snapper 7019317

PULLEY, w/Set Screws

$

$

Not available

7

Snapper 7019320

PULLEY, Double w/Set Screws
(Superseded to 7019320YP)

$193.99

$

Usually ships in 2-12 days

0

8

Snapper 7029908

BELT, Engine to Deck
(Superseded to 7029908YP)

Note: Was 38624

$56.99

$

Usually ships in 2-12 days

0

9

Snapper 7019205

BELT, Cutter Spindle
(Superseded to 7019205YP)

$56.99

$

In Stock, only 1 left!

0

10

Snapper 7033189

HANDLE, Hood

$

$

Currently unavailable

11

Snapper 7091044

SCREW, 3/8"-26 x 3 1/4" Gr. 5 Hex Head Cap

$

$

Not available

12

Snapper 7016172

ROD, Belt Adjusting

$

$

Not available

13

Snapper 7040655

ARM, Engine to Deck Idler Weldment

$

$

Not available

14

Snapper 7090118

WASHER, 3/8" Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

15

Snapper 7076978

NUT, 1/4"-20 Nylon Ring Hex Lock
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

16

Snapper 7090072

SCREW, 1/4"-20 x 5/8" Gr. 5 Hex Head Cap
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

17

Snapper 7016173

SPACER, Pivot
(Superseded to 7016173YP)

$6.99

$

Usually ships in 2-12 days

0

18

Snapper 7091619

NUT, 3/8"-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

19

Snapper 7090517

WASHER, 3/8" Flat
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

20

Snapper 7076533

DECAL, Caution

$

$

Not available

21

Snapper 7091316

NUT, 1/2"-13 Hex
(Superseded to 703340)

Note: Was 90258

$7.99

$

In Stock, only 1 left!

0

22

Snapper 90252

WASHER, 1/2" Lock

$

$

Currently unavailable

23

Snapper 7040654

ARM, Blade to Blade Idler Weldment

$

$

Not available

24

Snapper 7027169

TAP BOLT, 3/8" x 5"
(Superseded to 7027169YP)

Note: Was 91132

$20.99

$

Usually ships in 2-12 days

0

25

Snapper 7016909

DECAL, Pro 48

$

$

Currently unavailable

26

Snapper 7091131

TAP BOLT, 3/8" x 4"
(Superseded to 7091131YP)

$10.99

$

Usually ships in 2-12 days

0

27

Snapper 7032957

SKIRT, Front L.H.

$

$

Not available

28

Snapper 7032958

SKIRT, Front R.H.

$

$

Currently unavailable

29

Snapper 7091086

SCREW, 3/8"-16 x 3/4" Gr. 5 Hex Head Cap
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

30

Snapper 7091047

WASHER, Flat

$

$

Not available

31

Snapper 7019096

CAP, Cutter Housing
(Superseded to 7019096YP)

$33.99

$

Usually ships in 2-12 days

0

32

Snapper 7090913

SCREW, #10-24 x 1/2" Self-Tapping
(Superseded to 704060)

Note: Was 91034

$3.49

$

In Stock, Qty 11

0

33

Snapper 7023548

RING, Retaining
(Superseded to 7023548YP)

$3.99

$

Usually ships in 2-12 days

0

34

Snapper 7019125

BEARING, Single Seal
(Superseded to 7019125YP)

$30.99

$

Usually ships in 2-12 days

0

35

Snapper 7027685

HOUSING, Cutter
(Superseded to 7027685YP)

Note: Was 22158

$85.99

$

Usually ships in 2-12 days

0

36

Snapper 7076997

ZERK, 1/8" NPT

$

$

Currently unavailable

37

Snapper 7091299

NUT, 3/8"-16 Nylon Ring Hex
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

38

Snapper 7019189

SPINDLE, Cutter
(Superseded to 7019189YP)

$63.99

$

Usually ships in 2-12 days

0

39

Snapper 7076436

SPACER, Blade
(Superseded to 7076436YP)

$7.49

$

In Stock, only 4 left!

0

40

Snapper 7017043

BLADE, 16 1/2" High Lift
(Superseded to 7017043YP)

$28.99

$

In Stock, Qty 8

0

41

Snapper 7016440

WASHER, 5/8" Bevel
(Superseded to 7016440SM)

$7.99

$

In Stock, Qty 20+

0

42

Snapper 7016447

SCREW, 5/8"-18 x 8 1/2" Gr. 5 Hex Head Cap

$

$

Not available

43

Snapper 7040647

DECK, 48" Mowing

$

$

Currently unavailable

44

Snapper 7040659

DEFLECTOR, Chute
(Superseded to 7040659YP)

$128.99

$

Usually ships in 2-12 days

0

45

Snapper 7091304

SCREW, 3/8"-16 x 1" Gr. 5 Hex Head Cap
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

46

Snapper 7013010

WARNING DECAL
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 11

0

47

Snapper 7017822

DECAL, 48 Hood

$

$

Currently unavailable

48

Snapper 7052569

HOUSING, Assembly Cutter

Note: (Includes Items 31 thru 36 & 38)

$

$

Currently unavailable

49

Snapper 7091328

SCREW, 3/8"-16 x 1 1/4" Hex Head Cap
(Superseded to 703871)

Note: Was 76941

$4.99

$

Usually ships in 2-12 days

0

50

Snapper 7091033

KEY, Spindle

Note: Was 16375

$

$

Not available

51

Snapper 7090622

BOLT, 1/2"-13 x 1 1/4" Hex Flange Lock
(Superseded to 7090622YP)

$4.99

$

Usually ships in 2-12 days

0

52

Snapper 7076980

NUT, 5/8"-18 Hex
(Superseded to 7076980YP)

$3.99

$

In Stock, Qty 7

0

53

Snapper 7013946

RETAINER, 3/8"
(Superseded to 7013946YP)

$3.99

$

Usually ships in 2-12 days

0

54

Snapper 7076998

ZERK, Fitting
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

55

Snapper 7016561

BUSHING, 1" x 14 Ga. Machine
(Superseded to 7016561YP)

$5.49

$

In Stock, Qty 7

0
