PPT-280 - Echo Pole Saw (SN: E09213001001 - E09213999999) Fan Case S/N: E09213002871-E09213999999 Parts Diagram

Pole Saw

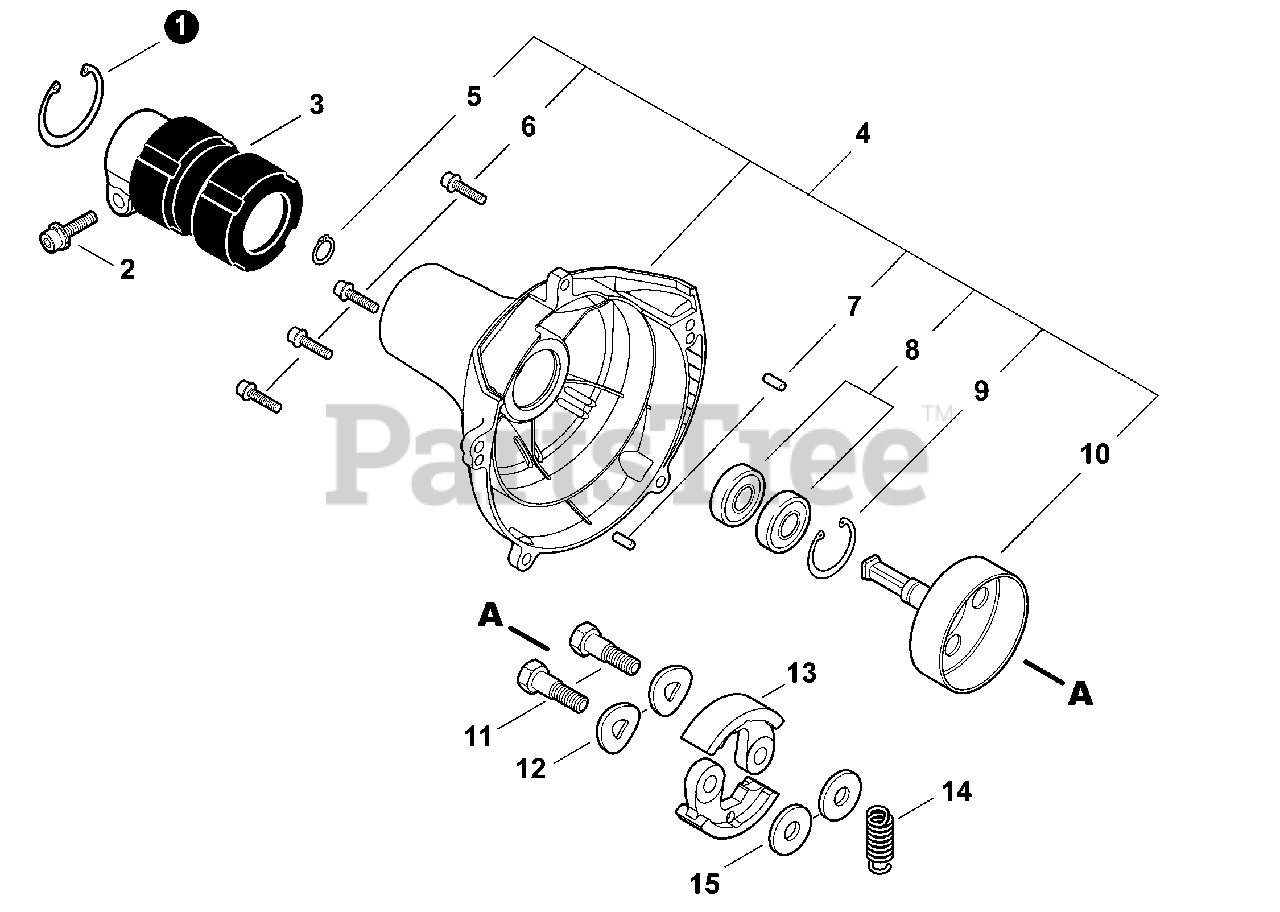

Fan Case S/N: E09213002871-E09213999999 Parts Diagram

  • Title

1

Echo 90070200042

CIRCLIP 42

$1.99

$

In Stock, Qty 16

0

2

Echo 90016205028

BOLT, H.S. 5×28

$1.99

$

In Stock, Qty 19

0

3

Echo 61092255931

HOLDER, MAIN PIPE

$33.99

$

Usually ships in 2-4 days

0

4

Echo P021046400

FAN CASE ASY

Note: Includes Items 5-10

$103.99

$

Usually ships in 2-4 days

0

5

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

6

Echo 90010605020

SCREW - 5×20

$1.49

$

In Stock, Qty 20+

0

7

Echo 90033040080

PIN, DOWEL

$0.99

$

In Stock, Qty 20+

0

8

Echo 9405106001

BEARING, BALL - 6001
(Superseded to 9406106001)

$6.49

$

In Stock, Qty 6

0

9

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 13

0

10

Echo A556000600

DRUM, CLUTCH

$23.99

$

Usually ships in 2-4 days

0

11

Echo 17504656030

BOLT, CLUTCH

$4.99

$

In Stock, Qty 6

0

12

Echo 17504956030

WASHER - SPRING

$1.49

$

In Stock, Qty 20+

0

13

Echo A553000050

SHOE, CLUTCH

$15.99

$

In Stock, only 3 left!

0

14

Echo A566000020

SPRING, CLUTCH

$1.99

$

In Stock, Qty 19

0

15

Echo 17504805530

WASHER - 6

$1.49

$

In Stock, Qty 7

0
