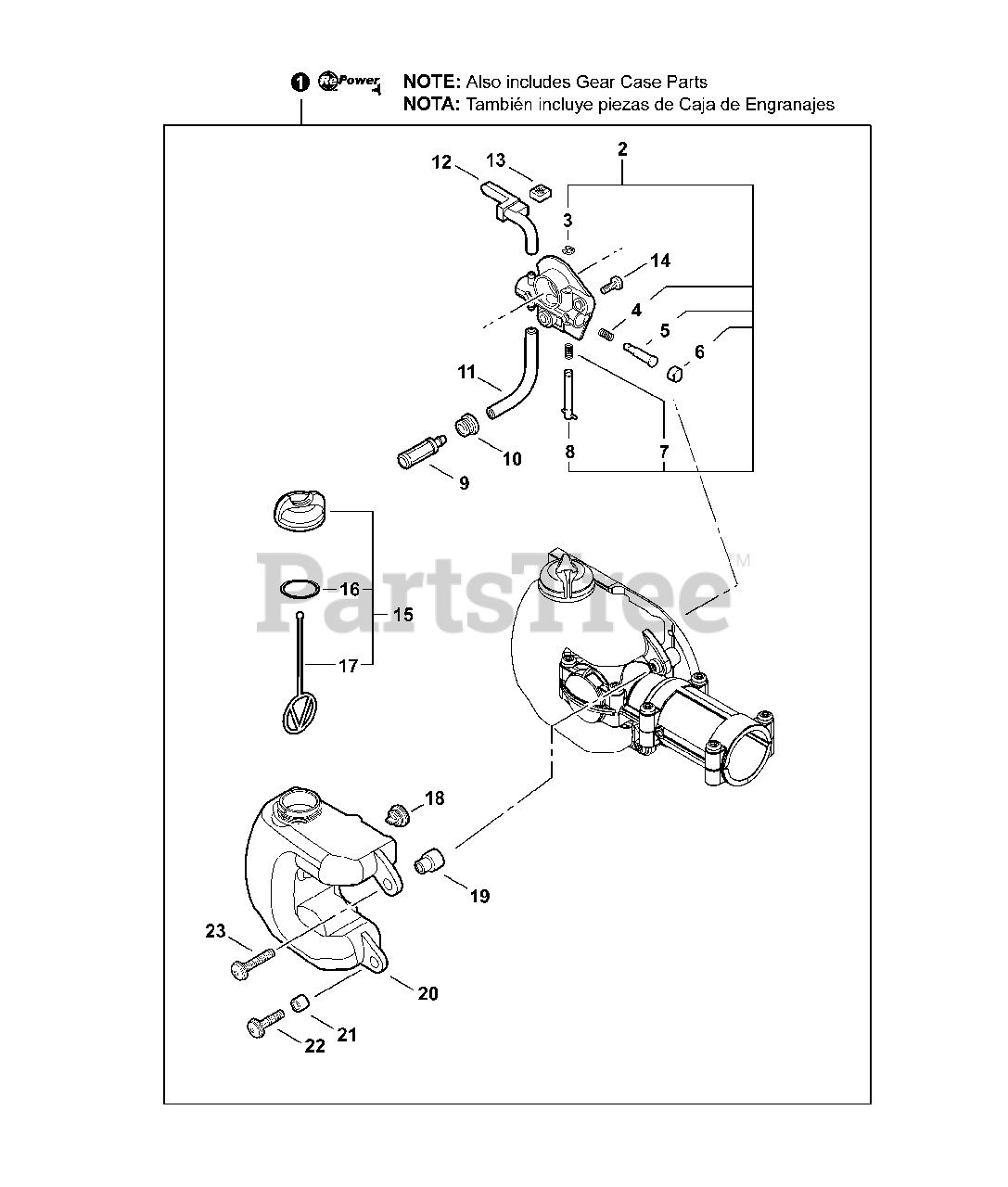

PPT-280 - Echo Pole Saw (SN: E08612001001 - E08612999999) Gear Case, Auto-Oiler Parts Diagram

Pole Saw

Gear Case, Auto-Oiler Parts Diagram

  • Title

1

Echo 9001015

CUTTING HEAD ASY

Note: Includes Items 2-24

$170.99

$

In Stock, only 2 left!

0

2

Echo C022000010

AUTO-OILER ASY

Note: Includes Items 3-8

$49.99

$

In Stock, Qty 7

0

3

Echo 12532715130

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

4

Echo P022010660

SPRING

$1.99

$

In Stock, only 2 left!

0

5

Echo P022010650

PLUNGER

$11.99

$

In Stock, only 1 left!

0

6

Echo P022010640

CAP, OIL PUMP

$0.99

$

In Stock, Qty 9

0

7

Echo P022010670

SPRING

$1.99

$

In Stock, only 4 left!

0

8

Echo P022010680

NEEDLE, ADJUST

$7.49

$

In Stock, only 1 left!

0

9

Echo 43620502832

FILTER, OIL

$8.99

$

Usually ships in 2-4 days

0

10

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 17

0

11

Echo 13011014330

PIPE - 3×6×75 -- BLACK

$2.99

$

In Stock, Qty 7

0

12

Echo V470000180

PIPE, OIL OUTLET
(Superseded to V470000181)

$1.99

$

In Stock, only 3 left!

0

13

Echo 43724439130

PAD, FOAM

$0.99

$

In Stock, Qty 20+

0

14

Echo V253000200

SCREW - 5×10

$0.99

$

In Stock, Qty 9

0

15

Echo P021014940

CAP ASY - ORANGE
(Superseded to P021005591)

Note: Includes Items 16-17

$4.49

$

In Stock, Qty 20+

0

16

Echo 90072000018

O-RING - 18

$1.99

$

In Stock, Qty 20+

0

17

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0

18

Echo 13131406320

VENT ASY

$5.49

$

In Stock, only 2 left!

0

19

Echo V354000010

COLLAR 6

$6.99

$

Usually ships in 2-4 days

0

20

Echo C200000080

TANK, OIL
(Superseded to C200000081)

$10.99

$

In Stock, only 3 left!

0

21

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 20+

0

22

Echo V253000230

SCREW - 5×20

$0.99

$

In Stock, Qty 12

0

23

Echo V253000240

SCREW - 5×25

$0.99

$

In Stock, Qty 20+

0
