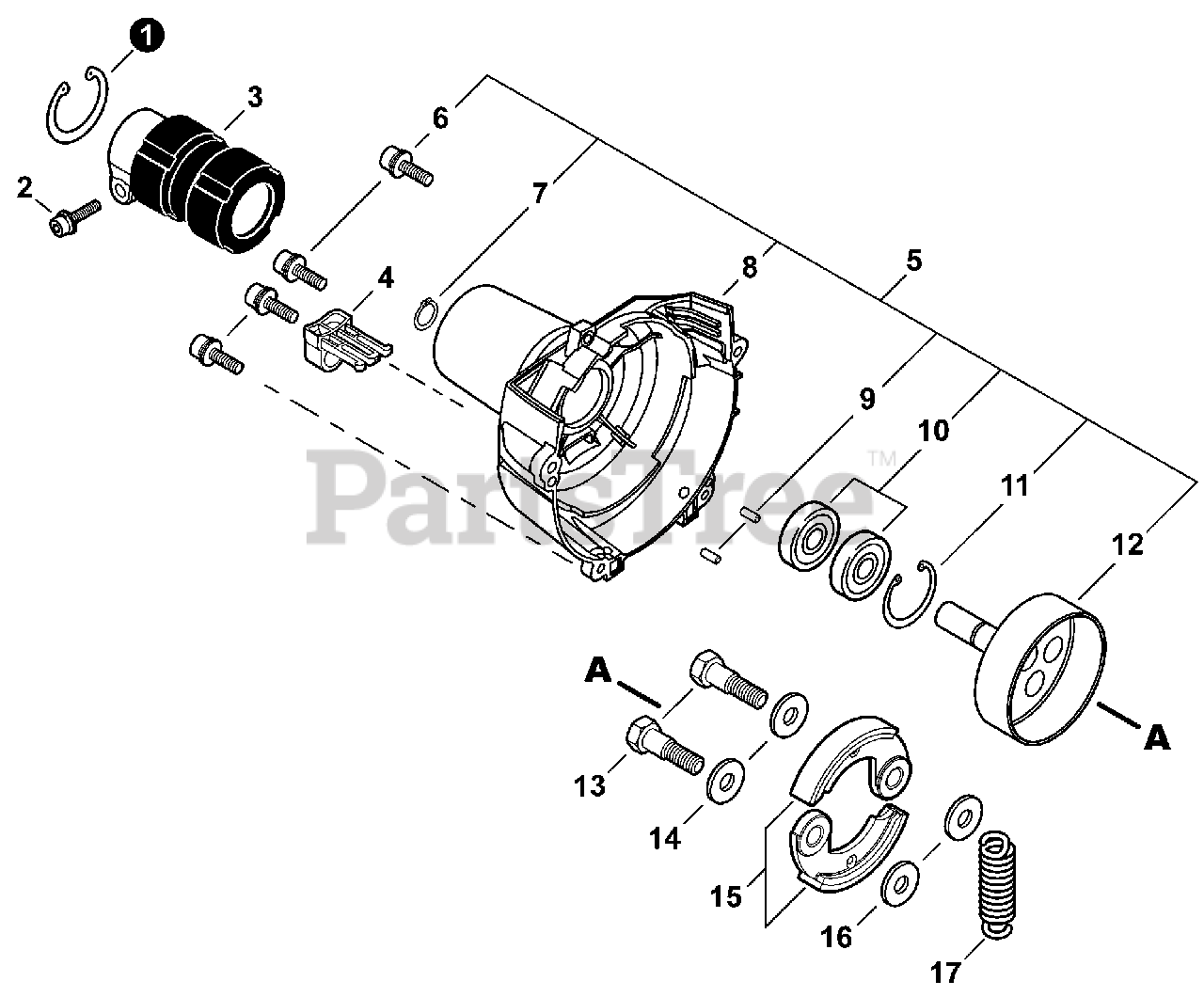

PPT-266 - Echo Pole Saw (SN: E06426001001 - E06426999999) Fan Cover Parts Diagram

Pole Saw

Fan Cover Parts Diagram

  • Title

1

Echo 90070200042

RING, SNAP 42

$1.99

$

In Stock, Qty 18

0

2

Echo 90016205028

BOLT 5x28

$1.99

$

In Stock, Qty 20+

0

3

Echo 61092255931

HOLDER, MAIN PIPE

$33.99

$

In Stock, only 1 left!

0

4

Echo V491000180

CLIP

$0.99

$

In Stock, Qty 20+

0

5

Echo P021048580

COVER ASSY, FAN

Note: Includes Items 6-12

$69.99

$

Usually ships in 2-4 days

0

6

Echo 90016304016

BOLT 4x16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

7

Echo 90070100012

RING, SNAP 12

$0.99

$

In Stock, Qty 20+

0

8

Echo A172002570

COVER, FAN

$49.99

$

Usually ships in 2-4 days

0

9

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, Qty 7

0

10

Echo 9405106001

BEARING, BALL 6001
(Superseded to 9406106001)

$6.49

$

In Stock, Qty 18

0

11

Echo 90070200028

RING, SNAP 28

$1.49

$

In Stock, Qty 15

0

12

Echo A556001320

DRUM, CLUTCH

$39.99

$

In Stock, only 1 left!

0

13

Echo 17504656030

BOLT, CLUTCH 8x7.9xM6

$4.99

$

In Stock, Qty 11

0

14

Echo 17504956030

WASHER, SPRING 8.5x16x0.5

$1.49

$

In Stock, Qty 20+

0

15

Echo A553000010

SHOE, CLUTCH
(Superseded to A553000200)

$15.99

$

In Stock, Qty 20+

0

16

Echo 17504805530

WASHER 6.2x19x1.0

$1.49

$

In Stock, Qty 20+

0

17

Echo V451000400

SPRING, CLUTCH
(Superseded to V451001390)

$3.49

$

In Stock, Qty 20+

0
