PPT-265 H - Echo Pole Saw (SN: E06812001001 - E06812999999) Main Pipe -- Lower Parts Diagram

Pole Saw

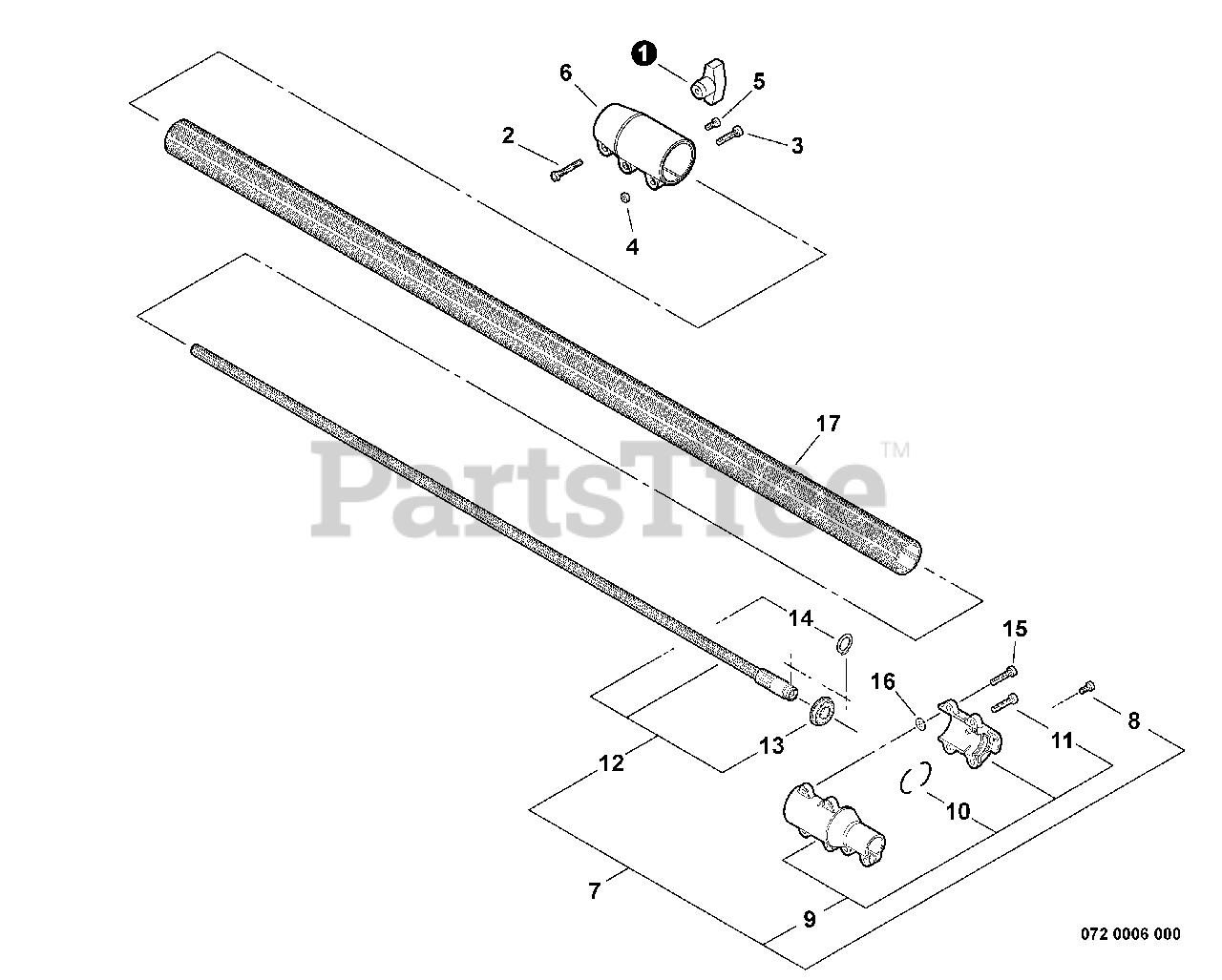

Main Pipe -- Lower Parts Diagram

  • Title

1

Echo V299000321

THUMBSCREW
(Superseded to V299000660)

$3.99

$

In Stock, Qty 16

0

2

Echo 90010006025

BOLT - 6X25

$0.99

$

In Stock, Qty 20+

0

3

Echo 90010505020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

4

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

5

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

6

Echo C510000280

COUPLING

$7.99

$

In Stock, only 2 left!

0

7

Echo P021038660

DRIVESHAFT ASSY
(Superseded to P021017322)

Note: Includes ITEMS 8-14

$133.99

$

In Stock, only 3 left!

0

8

Echo 90010505014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

9

Echo C510000164

COUPLING ASSY
(Superseded to C510000165)

Note: Includes ITEMS 10-11

$50.99

$

In Stock, Qty 6

0

10

Echo V420001810

CUSHION

$1.99

$

In Stock, only 2 left!

0

11

Echo 90010505020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

12

Echo C504000372

DRIVESHAFT ASSY - LOWER

Note: Includes ITEMS 13-14

$72.99

$

In Stock, Qty 5

0

13

Echo 9405736002

BEARING, BALL - 6002

$7.99

$

In Stock, only 1 left!

0

14

Echo 10022922460

RING, RETAINING

$0.99

$

In Stock, only 3 left!

0

15

Echo 90010505020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

16

Echo V303000071

WASHER - 5

$0.99

$

In Stock, Qty 15

0

17

Echo C500000271

PIPE, MAIN - ORANGE

$56.99

$

In Stock, only 3 left!

0
