PPT-265 H - Echo Pole Saw (SN: E06812001001 - E06812999999) Gear Case, Auto-Oiler Parts Diagram

Pole Saw

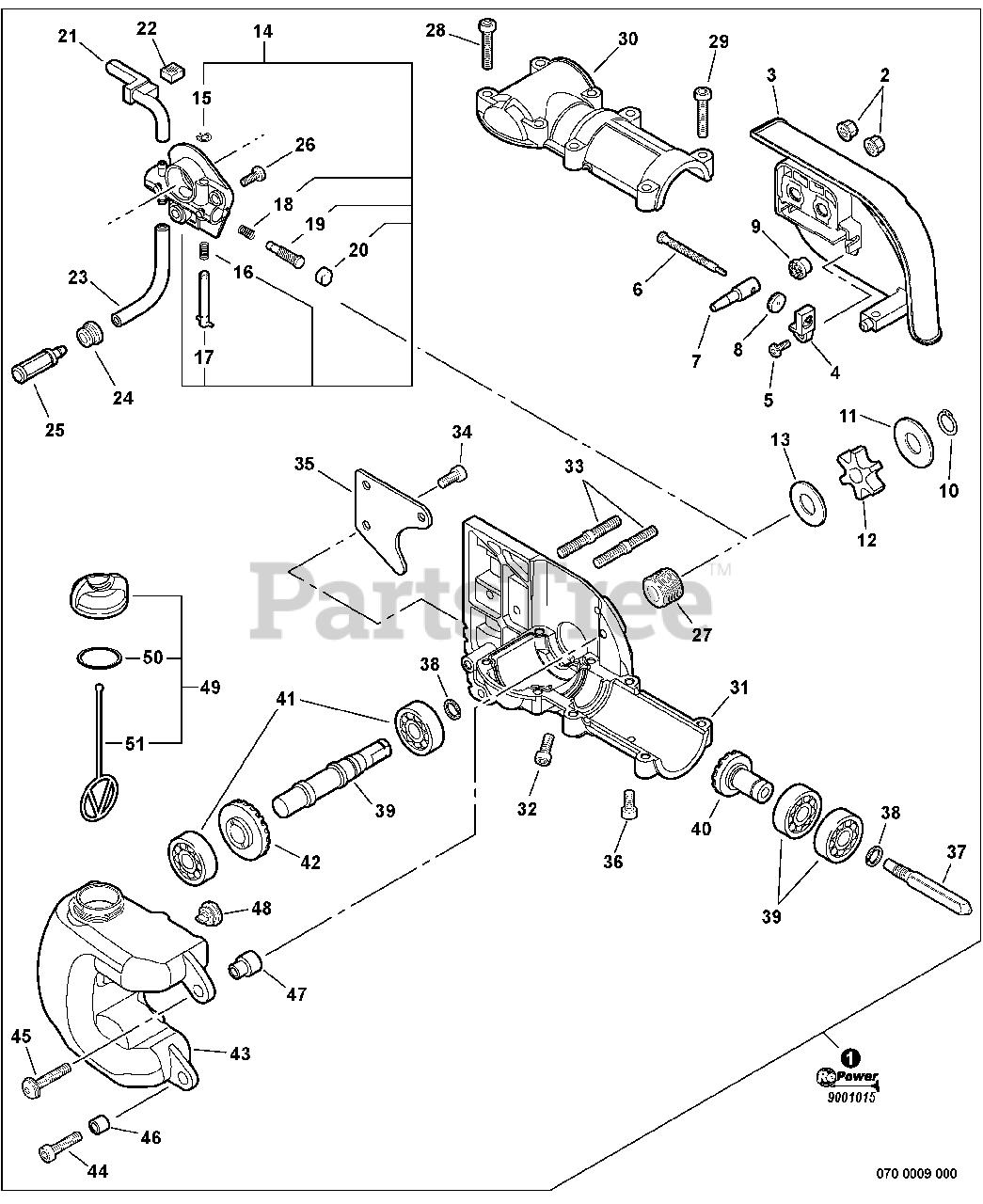

Gear Case, Auto-Oiler Parts Diagram

  • Title

1

Echo 9001015

CUTTING HEAD ASSY

Note: Includes ITEMS 2-51

$170.99

$

In Stock, only 2 left!

0

2

Echo 43301903933

NUT - 6 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

3

Echo C300000920

GUARD, SPROCKET
(Superseded to C300000921)

$7.49

$

In Stock, Qty 11

0

4

Echo V355000140

BRACKET, TENSIONER

$0.99

$

In Stock, Qty 20+

0

5

Echo V252000040

SCREW - 4X8

$1.49

$

In Stock, Qty 19

0

6

Echo V203000041

SCREW, TENSIONER

$5.99

$

In Stock, Qty 6

0

7

Echo C309000030

TENSIONER, CHAIN

$4.49

$

In Stock, Qty 20+

0

8

Echo V651000310

GEAR - BEVEL

$1.49

$

In Stock, only 2 left!

0

9

Echo V651000320

GEAR - BEVEL

$1.99

$

In Stock, Qty 15

0

10

Echo V583000090

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

11

Echo V307000160

WASHER - 10

$0.99

$

In Stock, Qty 20+

0

12

Echo C580000070

SPROCKET, DRIVE

$4.99

$

In Stock, Qty 10

0

13

Echo 17501439131

WASHER

$2.49

$

In Stock, only 4 left!

0

14

Echo C022000010

AUTO-OILER ASSY

Note: Includes ITEMS 15-20

$49.99

$

In Stock, Qty 7

0

15

Echo 12532715130

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

16

Echo P022010670

SPRING

$1.99

$

In Stock, only 4 left!

0

17

Echo P022010680

NEEDLE, ADJUST

$7.49

$

In Stock, only 1 left!

0

18

Echo P022010660

SPRING

$1.99

$

In Stock, only 2 left!

0

19

Echo P022010650

PLUNGER

$11.99

$

In Stock, only 1 left!

0

20

Echo P022010640

CAP, OIL PUMP

$0.99

$

In Stock, Qty 9

0

21

Echo V470000180

PIPE, OIL OUTLET
(Superseded to V470000181)

$1.99

$

In Stock, only 3 left!

0

22

Echo 43724439130

PAD, FOAM

$0.99

$

In Stock, Qty 20+

0

23

Echo 13011014330

PIPE - 3X6X75 -- BLACK

Note: RePower BULK OPTION: 90014

$2.99

$

In Stock, Qty 7

0

24

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 19

0

25

Echo 43620502832

FILTER, OIL

$8.99

$

Usually ships in 2-4 days

0

26

Echo V253000200

SCREW - 5X10

$0.99

$

In Stock, Qty 9

0

27

Echo V652000021

GEAR - WORM

$14.99

$

In Stock, only 1 left!

0

28

Echo V253000240

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

29

Echo 90010505025

SCREW - 5X25

$1.49

$

In Stock, Qty 15

0

30

Echo C531000030

CASE, GEAR - UPPER

$91.99

$

In Stock, only 1 left!

0

31

Echo C531000430

CASE, GEAR - LOWER

$74.99

$

In Stock, only 1 left!

0

32

Echo V253000200

SCREW - 5X10

$0.99

$

In Stock, Qty 9

0

33

Echo V224000040

STUD, GUIDE BAR

$1.49

$

In Stock, Qty 16

0

34

Echo V253000200

SCREW - 5X10

$0.99

$

In Stock, Qty 9

0

35

Echo C649000140

HOOK

$2.49

$

Usually ships in 2-4 days

0

36

Echo 90010505010

SCREW - 5X10

$1.49

$

In Stock, Qty 10

0

37

Echo 61002522361

CONNECTOR, SHAFT

$5.99

$

Usually ships in 2-4 days

0

38

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 6

0

39

Echo 9404206001

BEARING, BALL - 6001

$9.99

$

In Stock, only 2 left!

0

40

Echo V651000210

GEAR - BEVEL

$20.99

$

Usually ships in 2-4 days

0

41

Echo C534000430

GEAR - SHAFT

$15.99

$

Usually ships in 2-4 days

0

42

Echo V651000201

GEAR - BEVEL
(Superseded to P021009732)

$74.99

$

In Stock, only 1 left!

0

43

Echo C200000080

TANK, OIL
(Superseded to C200000081)

$10.99

$

In Stock, only 2 left!

0

44

Echo 90010505020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

45

Echo V253000240

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

46

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 20+

0

47

Echo V354000010

SPACER

$6.99

$

Usually ships in 2-4 days

0

48

Echo 13131406320

VENT

$5.49

$

In Stock, only 2 left!

0

49

Echo P021014940

CAP ASSY - ORANGE
(Superseded to P021005591)

Note: Includes ITEMS 50-51

$4.49

$

In Stock, Qty 20+

0

50

Echo 90072000018

O-RING - 18

$1.99

$

In Stock, Qty 20+

0

51

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0
