PPT-265 H - Echo Pole Saw (SN: E06812001001 - E06812999999) Clutch, Fan Case Parts Diagram

Pole Saw

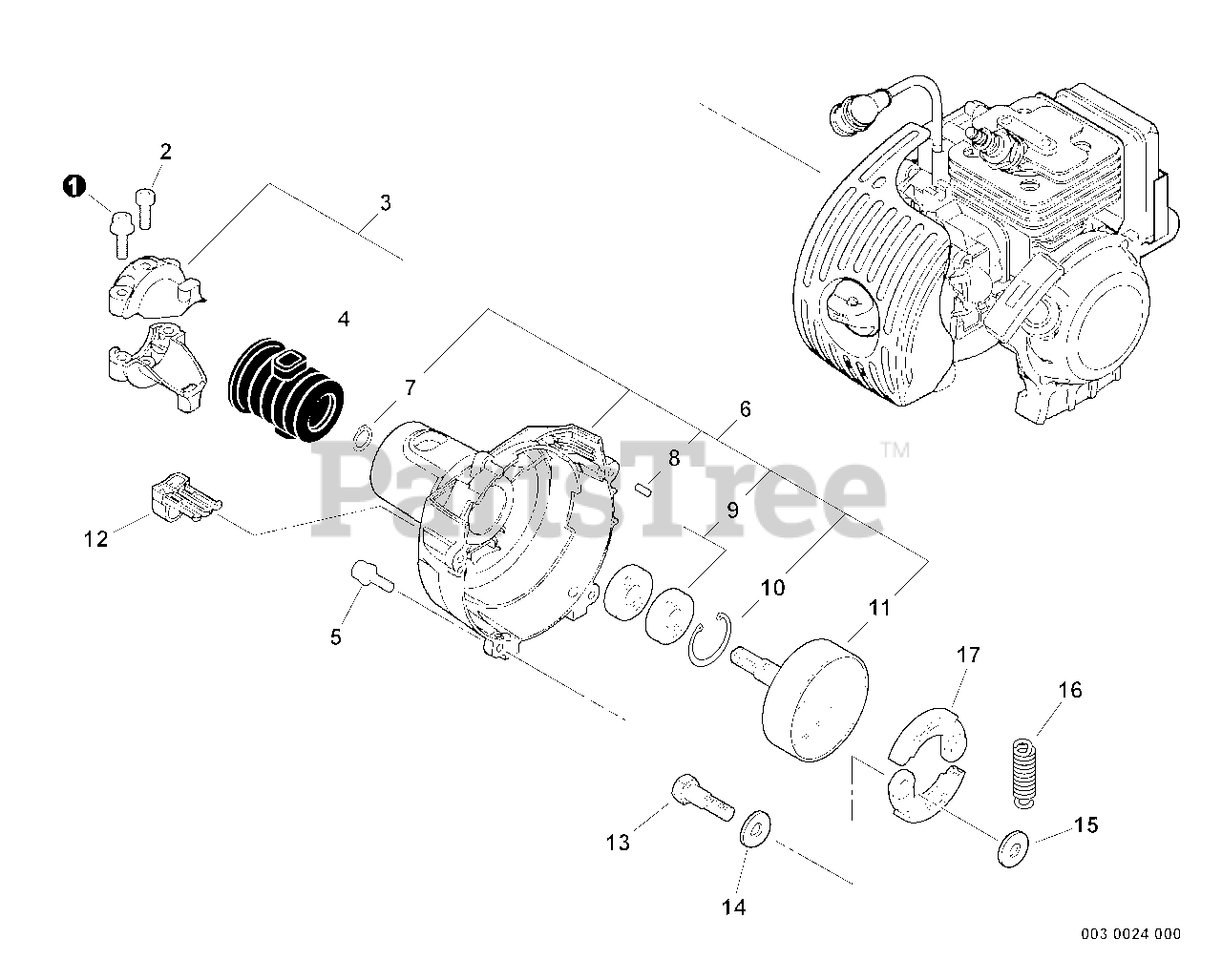

Clutch, Fan Case Parts Diagram

  • Title

1

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

2

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

3

Echo P021009380

MAIN PIPE CLAMP KIT

Note: Includes ITEM 4

$19.99

$

In Stock, only 3 left!

0

4

Echo V420001081

CUSHION

$8.49

$

In Stock, only 3 left!

0

5

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

6

Echo P021038020

FAN CASE ASSY

Note: Includes ITEMS 7-11

$68.99

$

Usually ships in 2-4 days

0

7

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

8

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

9

Echo 9405106001

BEARING, BALL - 6001
(Superseded to 9406106001)

$6.49

$

In Stock, Qty 18

0

10

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 15

0

11

Echo A556001320

DRUM, CLUTCH

$39.99

$

In Stock, only 1 left!

0

12

Echo V491000180

CLIP

$0.99

$

In Stock, Qty 20+

0

13

Echo 17504656030

BOLT, CLUTCH

$4.99

$

In Stock, Qty 11

0

14

Echo 17504956030

WASHER - SPRING

$1.49

$

In Stock, Qty 20+

0

15

Echo 17504805530

WASHER - 6

$1.49

$

In Stock, Qty 20+

0

16

Echo V451000400

SPRING, CLUTCH
(Superseded to V451001390)

$3.49

$

In Stock, Qty 20+

0

17

Echo A553000010

SHOE, CLUTCH
(Superseded to A553000200)

$15.99

$

In Stock, Qty 20+

0
