PPT-265 - Echo Pole Saw (SN: E09912001001 - E09912999999) Main Pipe -- Lower S/N: E09912003181 - E09912999999 Parts Diagram

Pole Saw

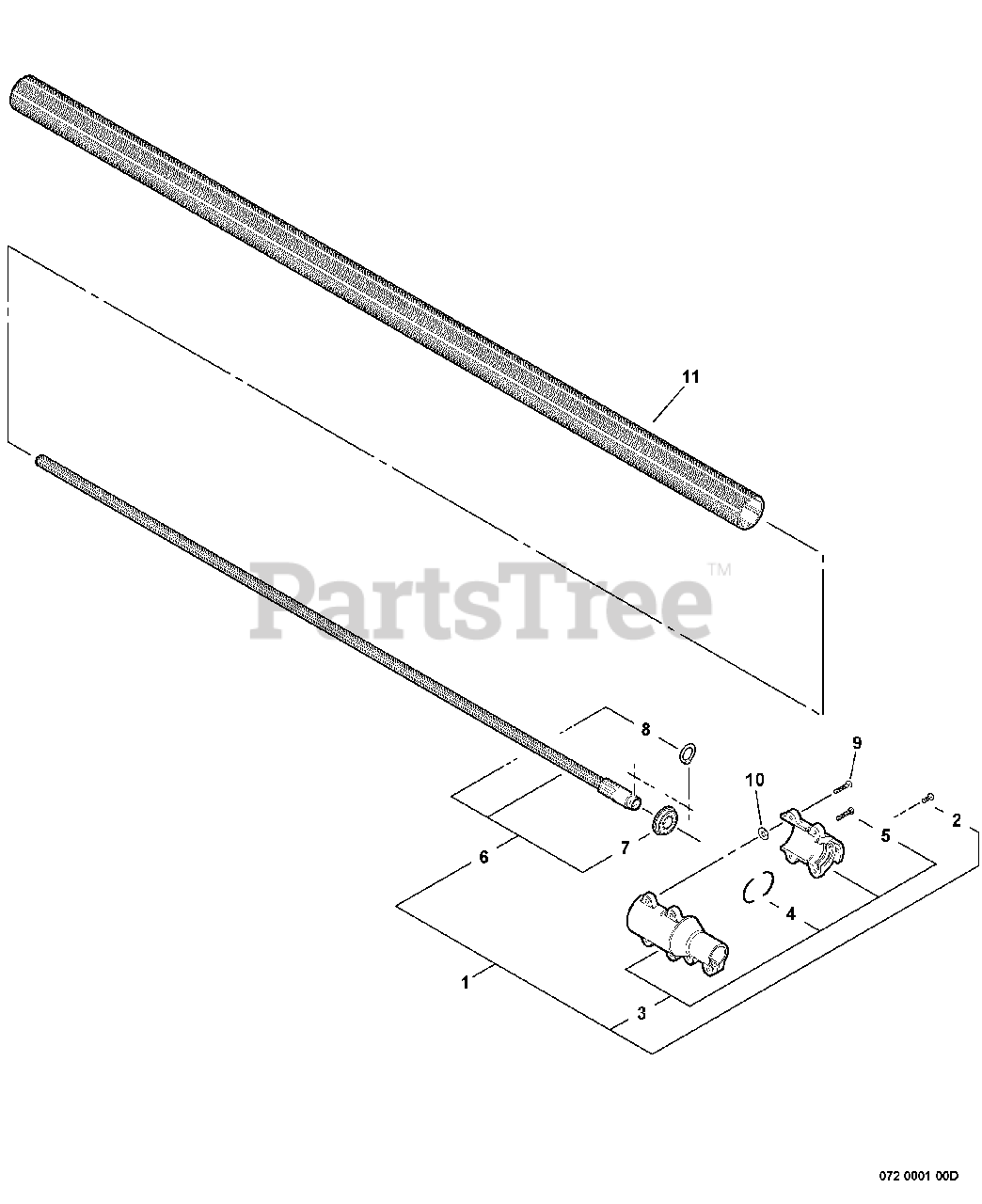

Main Pipe -- Lower S/N: E09912003181 - E09912999999 Parts Diagram

  • Title

1

Echo P021017320

DRIVESHAFT ASSY
(Superseded to P021017321)

Note: Includes ITEM 2-8

$133.99

$

In Stock, only 4 left!

0

2

Echo 90010505014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

3

Echo C510000163

COUPLING ASSY
(Superseded to C510000164)

Note: Includes ITEMS 4-5

$50.99

$

In Stock, only 2 left!

0

4

Echo V420001810

CUSHION

$1.99

$

In Stock, only 2 left!

0

5

Echo V253000230

SCREW - 5X20

$0.99

$

In Stock, Qty 12

0

6

Echo C504000372

DRIVESHAFT ASSY - LOWER

Note: INCLUDES ITEMS 7-8

$72.99

$

In Stock, only 2 left!

0

7

Echo 9405736002

BEARING, BALL - 6002

$7.99

$

In Stock, only 1 left!

0

8

Echo 10022922460

RING, RETAINING

$0.99

$

In Stock, only 3 left!

0

9

Echo 90010505020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

10

Echo V303000071

WASHER - 5

$0.99

$

In Stock, Qty 15

0

11

Echo C500000270

PIPE, MAIN - ORANGE
(Superseded to C500000271)

$56.99

$

In Stock, Qty 8

0
