PPT-2400 - Echo Pole Saw (Type 1E) (SN: E14220001001 - E14220999999) Carburetor Parts Diagram

Pole Saw (Type 1E)

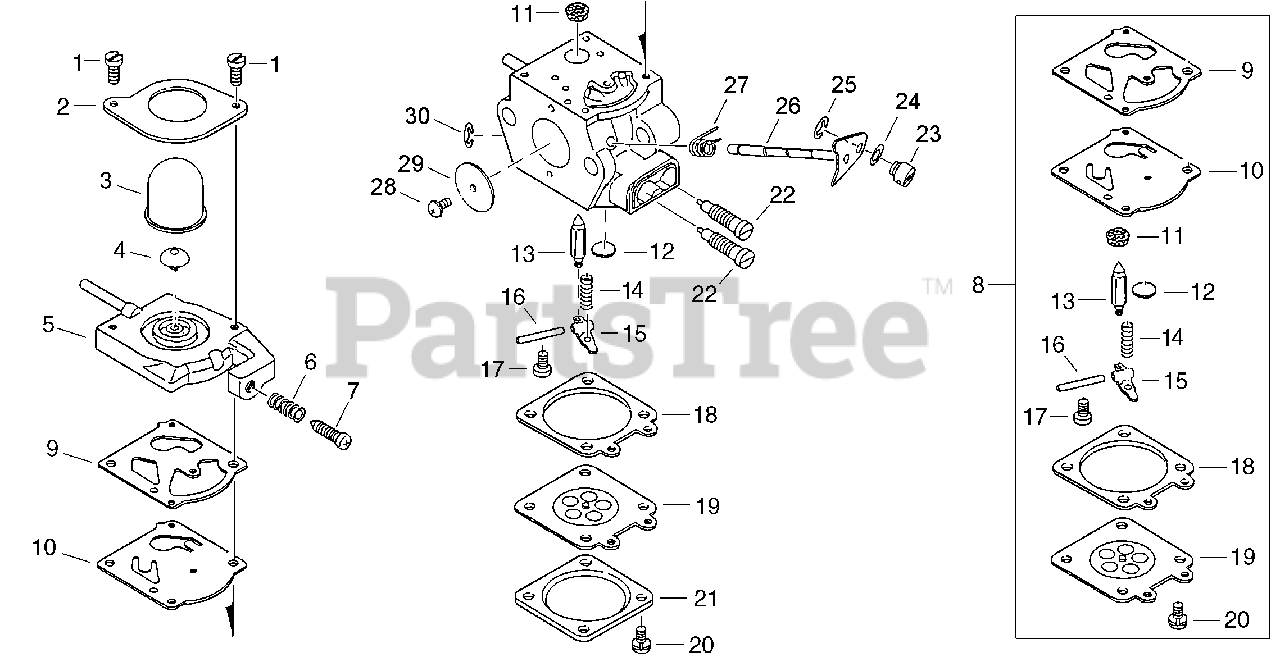

Carburetor Parts Diagram

  • Title

Echo 12300052133

CARBURETOR WT-424C

Note: Includes ITEMS 1-30

$94.99

$

In Stock, only 1 left!

0

1

Echo 12311043130

SCREW, PUMP COVER

$0.99

$

Usually ships in 2-4 days

0

2

Echo 12314209560

RETAINER, PURGE BULB

$6.99

$

Usually ships in 2-4 days

0

3

Echo 12318140630

BULB, PURGE

$5.49

$

In Stock, Qty 20+

0

4

Echo 12317135630

VALVE, CHECK

$3.99

$

In Stock, only 2 left!

0

5

Echo 12312443230

BASE, PURGE

$8.49

$

In Stock, only 1 left!

0

6

Echo 12313304260

SPRING, IDLE ADJUST

$6.49

$

In Stock, Qty 15

0

7

Echo 12313404260

SCREW, IDLE ADJUST

$1.99

$

In Stock, Qty 10

0

8

Echo 12310052130

REPAIR KIT

Note: Includes ITEMS 9-20

$23.99

$

In Stock, only 1 left!

0

9

Echo 12312509560

GASKET, PUMP

$3.99

$

Usually ships in 2-4 days

0

10

Echo 12311209560

DIAPHRAGM, PUMP

$11.99

$

Usually ships in 2-4 days

0

11

Echo 12312610631

STRAINER

$1.49

$

In Stock, Qty 17

0

12

Echo 12314610631

PLUG, WELCH

$1.49

$

Usually ships in 2-4 days

0

13

Echo 12313719830

VALVE, INLET NEEDLE

$18.99

$

Usually ships in 2-4 days

0

14

Echo 12312239330

SPRING, METERING LEVER

$2.99

$

Usually ships in 2-4 days

0

15

Echo 12312338330

LEVER, METERING

$6.49

$

In Stock, only 1 left!

0

16

Echo 12313803930

PIN, METERING LEVER

$5.99

$

In Stock, only 4 left!

0

17

Echo 12313903930

SCREW, METERING LEVER PIN

$1.49

$

In Stock, only 1 left!

0

18

Echo 12314003930

GASKET, METERING

$1.99

$

In Stock, Qty 5

0

19

Echo 12314103930

DIAPHRAGM, METERING

$13.99

$

In Stock, Qty 5

0

20

$1.99

$

Usually ships in 2-4 days

0

21

Echo 12314203930

COVER, METERING

$3.99

$

In Stock, only 1 left!

0

22

Echo 12312052131

NEEDLE - MIXTURE

$4.49

$

Usually ships in 2-4 days

0

23

$1.99

$

Usually ships in 2-4 days

0

24

$0.99

$

In Stock, only 1 left!

0

25

Echo 12317307930

RING, RETAINING

$1.49

$

In Stock, only 1 left!

0

26

Echo 12311752130

SHAFT, THROTTLE

$7.49

$

Usually ships in 2-4 days

0

27

Echo 12311352130

SPRING, THROTTLE RETURN

$1.99

$

Usually ships in 2-4 days

0

28

$1.49

$

In Stock, Qty 13

0

29

Echo 12311653130

VALVE, THROTTLE

$71.99

$

Usually ships in 2-4 days

0

30

Echo 12312715030

RING, RETAINING

$0.99

$

In Stock, only 2 left!

0
