PPT-2400 - Echo Pole Saw (Type 1E) (Original Version) Intake, Exhaust Parts Diagram

Pole Saw (Type 1E)

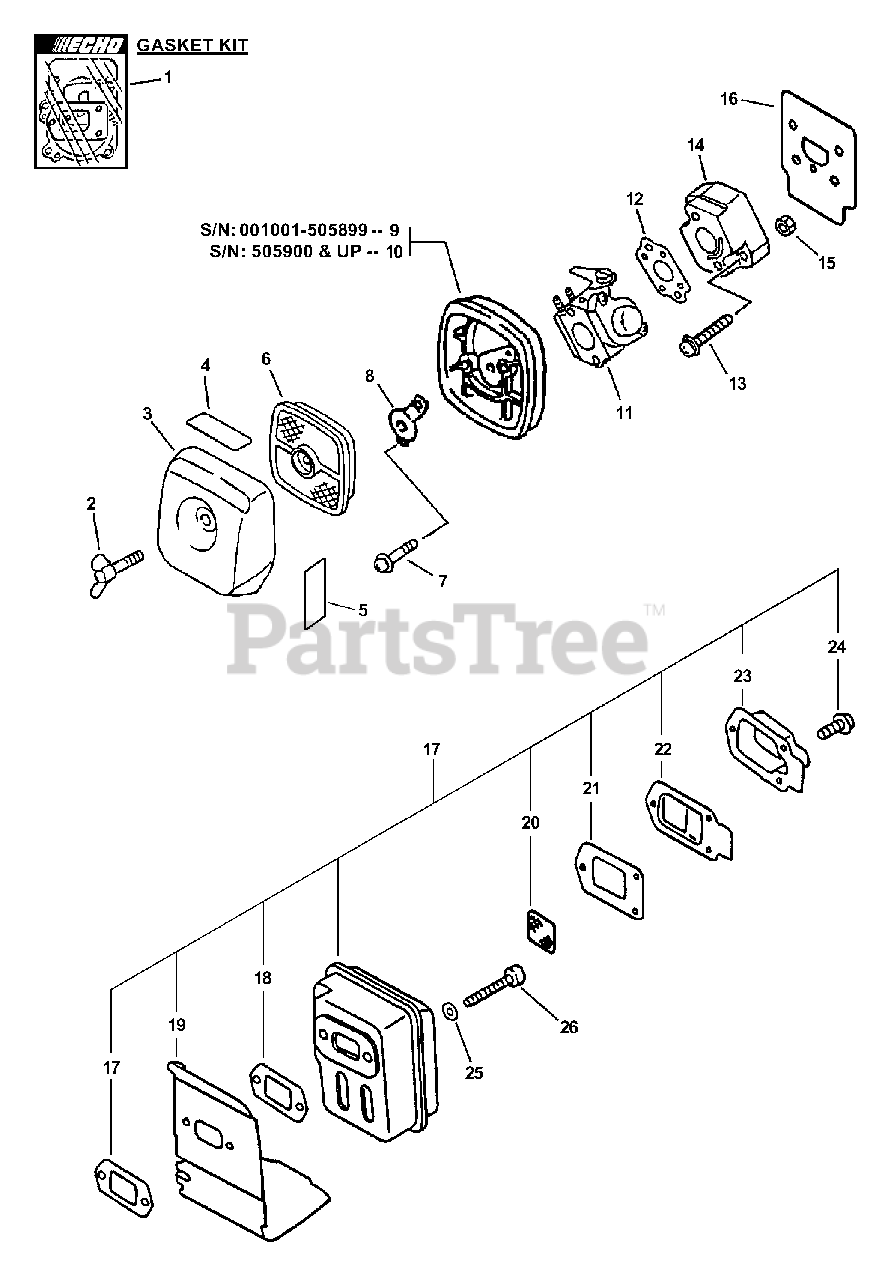

Intake, Exhaust Parts Diagram

  • Title

1

Echo 88900005960

GASKET KIT
(Superseded to Discontinued)

$

$

Not available

2

Echo 21041752730

THUMBSCREW

$1.49

$

In Stock, Qty 20+

0

3

Echo 13031305863

COVER, AIR FILTER - BLACK

$6.49

$

In Stock, Qty 20+

0

4

Echo 89012152730

LABEL - CHOKE

$1.49

$

In Stock, Qty 20+

0

5

Echo 89033452730

LABEL - CHOKE
(Superseded to Discontinued)

$

$

Not available

6

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$7.49

$

In Stock, Qty 20+

0

7

Echo 90024205065

SCREW - 5X65

$0.99

$

In Stock, only 2 left!

0

8

Echo 12901106360

PLATE, PREVENT
(Superseded to 12901106361)

$3.99

$

In Stock, Qty 14

0

9

Echo 13030706761

AIR FILTER CASE ASSY
(Superseded to 13030706960)

Note: S/N: 001001-505899

$19.99

$

In Stock, only 4 left!

0

10

Echo 13030744530

CASE, AIR FILTER
(Superseded to 13030706960)

Note: S/N: 505900 & UP

$19.99

$

In Stock, only 4 left!

0

11

Echo 12300052132

CARBURETOR WT-424B
(Superseded to 12300052133)

$94.99

$

In Stock, only 1 left!

0

12

Echo 13001005960

GASKET, INTAKE

$1.99

$

In Stock, only 2 left!

0

13

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

14

Echo 13001742031

INSULATOR, INTAKE

$9.49

$

Usually ships in 2-4 days

0

15

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

16

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, Qty 11

0

17

Echo 14580052630

MUFFLER ASSY
(Superseded to 14580052631)

Note: INCLUDES ITEMS 18-24

$

$

Not available

18

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 16

0

19

Echo 14587144331

COVER, EXHAUST
(Superseded to 14587152130)

$4.99

$

In Stock, Qty 14

0

20

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, Qty 6

0

21

Echo 14586642031

GASKET, EXHAUST

$2.49

$

In Stock, Qty 5

0

22

Echo 14587642030

GASKET, EXHAUST - INNER

$3.99

$

In Stock, Qty 6

0

23

Echo 14581852130

GUIDE, EXHAUST - OUTER

$7.49

$

Usually ships in 2-4 days

0

24

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 14

0

25

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

26

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 15

0
