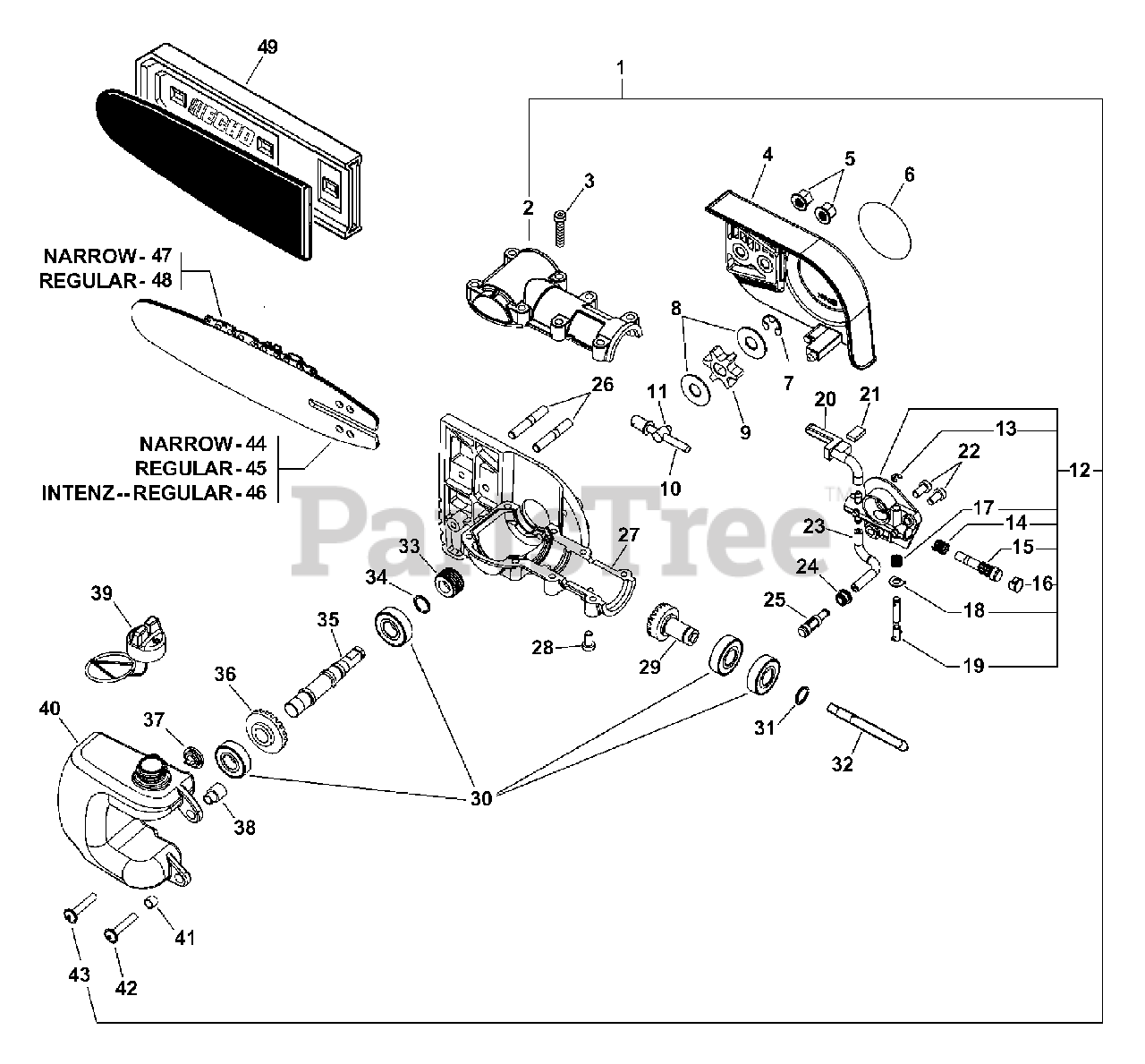

PPT-2400 - Echo Pole Saw (Type 1E) (Original Version) Gear Case, Auto-Oiler, Guide Bar, Chain S/N: 505900 - 999999 Parts Diagram

Pole Saw (Type 1E)

Gear Case, Auto-Oiler, Guide Bar, Chain S/N: 505900 - 999999 Parts Diagram

  • Title
1

Echo 90083

OILER GEAR BOX ASSY
(Superseded to 90093)

Note: INCLUDES ITEMS 2-43

$170.99

$

In Stock, only 2 left!

0

2

Echo C531000030

CASE, GEAR - UPPER

$91.99

$

In Stock, only 1 left!

0

3

Echo V253000000

SCREW - 5X25
(Superseded to 90010905025)

$0.99

$

In Stock, only 4 left!

0

4

Echo C300000000

GUARD, SPROCKET
(Superseded to C300000001)

$16.99

$

In Stock, only 2 left!

0

5

Echo 43301903933

NUT - 6 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

6

Echo 89011849130

LABEL - ECHO
(Superseded to X502000190)

$0.99

$

In Stock, Qty 20+

0

7

Echo V583000010

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

8

$2.49

$

In Stock, only 4 left!

0

9

Echo C580000070

SPROCKET, DRIVE

$4.99

$

In Stock, Qty 10

0

10

Echo 43301639131

SCREW, TENSIONER

$4.49

$

In Stock, Qty 19

0

11

Echo 43301403931

TENSIONER, CHAIN

$4.99

$

In Stock, Qty 20+

0

12

Echo 43700239130

AUTO-OILER ASSY

Note: Includes ITEMS 13-19

$70.99

$

In Stock, only 1 left!

0

13

Echo 12312715030

RING, RETAINING

$0.99

$

In Stock, only 2 left!

0

14

Echo 43701938330

SPRING, PLUNGER

$3.99

$

Usually ships in 2-4 days

0

15

Echo 43702437330

PLUNGER ASSY

$23.99

$

In Stock, only 1 left!

0

16

Echo 43706237330

CAP, OIL PUMP

$3.99

$

In Stock, only 3 left!

0

17

$3.99

$

Usually ships in 2-4 days

0

18

$2.99

$

Usually ships in 2-4 days

0

19

Echo 43701639130

NEEDLE, ADJUST

$17.99

$

Usually ships in 2-4 days

0

20

Echo V470000180

PIPE, OIL OUTLET
(Superseded to V470000181)

$1.99

$

In Stock, only 3 left!

0

21

Echo 43724439130

PAD, FOAM

$0.99

$

In Stock, Qty 20+

0

22

Echo V253000010

SCREW - 5X10
(Superseded to Discontinued)

$

$

Not available

23

Echo 13011014330

PIPE - 3X6X75 -- BLACK

Note: RePower BULK OPTION: 90014

$2.99

$

In Stock, Qty 7

0

24

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 19

0

25

Echo 43620502832

FILTER, OIL

$8.99

$

Usually ships in 2-4 days

0

26

Echo V224000000

STUD - 6

$2.49

$

In Stock, only 4 left!

0

27

Echo C531000040

CASE, GEAR - LOWER
(Superseded to C051000120)

$82.99

$

In Stock, only 1 left!

0

28

Echo V253000010

SCREW - 5X10
(Superseded to Discontinued)

$

$

Not available

29

Echo V651000040

GEAR - BEVEL
(Superseded to V651000041)

$29.99

$

In Stock, only 1 left!

0

30

Echo 9405206001

BEARING, BALL - 6001

$

$

Currently unavailable

31

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 6

0

32

Echo 61002522360

CONNECTOR, SHAFT
(Superseded to 61002522361)

$5.99

$

Usually ships in 2-4 days

0

33

Echo V652000021

GEAR - WORM

$14.99

$

In Stock, only 1 left!

0

34

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 6

0

35

Echo C534000020

GEAR - SHAFT
(Superseded to P021005391)

$

$

Not available

36

Echo 61031122060

GEAR - BEVEL
(Superseded to P021011610)

$

$

Not available

$5.49

$

In Stock, only 2 left!

0

38

$6.99

$

Usually ships in 2-4 days

0

39

Echo P021000950

CAP ASSY
(Superseded to P021000951)

$2.99

$

In Stock, Qty 14

0

40

Echo C200000000

TANK, OIL

$9.99

$

In Stock, only 1 left!

0

41

$1.49

$

In Stock, Qty 20+

0

42

Echo V253000030

SCREW - 5X16

$1.99

$

In Stock, only 2 left!

0

43

Echo V253000020

SCREW - 5X20

$1.49

$

In Stock, Qty 9

0

44

Echo 1120374401

GUIDE BAR - 12" (30cm)

Note: GAUGE: .043"

$

$

Currently unavailable

45

Echo 1121374401

GUIDE BAR - 12" (30cm)
(Superseded to 12G0ZD3744C)

Note: GAUGE: .050"

$33.99

$

In Stock, only 2 left!

0

46

Echo 1122374401

GUIDE BAR - 12" (30cm) Intenz
(Superseded to 12G0ZD3744C)

Note: GAUGE: .050"

$33.99

$

In Stock, only 2 left!

0

47

Echo 1907044

SAW CHAIN - 12" (30cm)

Note: GAUGE: .043"

$

$

Currently unavailable

48

Echo 1917044

SAW CHAIN - 12" (30cm)

Note: GAUGE: .050"

$21.99

$

In Stock, Qty 5

0

49

Echo 89851322360

COVER, GUIDE BAR - 12" (30cm)
(Superseded to X490000050)

$4.49

$

In Stock, Qty 20+

0
