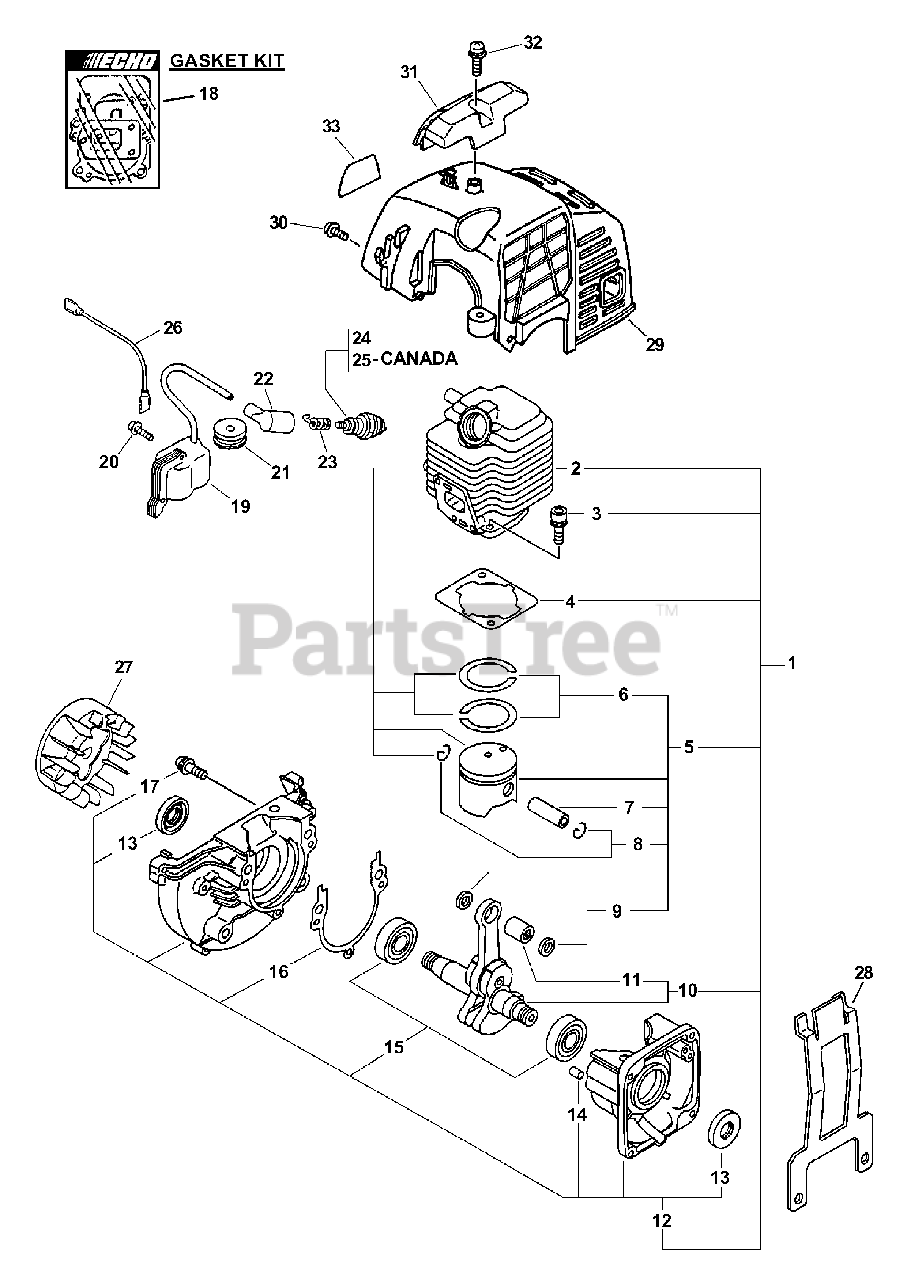

PPT-2400 - Echo Pole Saw (Type 1E) (Original Version) Engine, Ignition, Cylinder Cover S/N: 001001 - 505899 Parts Diagram

Pole Saw (Type 1E)

Engine, Ignition, Cylinder Cover S/N: 001001 - 505899 Parts Diagram

  • Title

1

Echo SB1027

SHORT BLOCK -- SB1027
(Superseded to Discontinued)

Note: INCLUDES ITEMS 2-17; OPTIONAL ENGINE REPOWER

$

$

Not available

2

Echo 10100308960

CYLINDER KIT
(Superseded to P021035810)

Note: Includes ITEMS 6 & 8

$

$

Not available

3

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

4

Echo 10101044332

GASKET, CYLINDER

$3.99

$

In Stock, Qty 6

0

5

Echo 10000009562

PISTON KIT
(Superseded to 10000009563)

Note: Includes ITEMS 6-9

$70.99

$

In Stock, only 1 left!

0

6

Echo 10001109560

RING, PISTON

$8.49

$

Usually ships in 2-4 days

0

7

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

8

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

9

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

10

Echo A011000101

CRANKSHAFT ASSY
(Superseded to A011001410)

Note: Includes ITEM 11

$155.99

$

In Stock, only 1 left!

0

11

Echo V553000010

BEARING, NEEDLE - 8

$9.99

$

In Stock, only 2 left!

0

12

Echo 10020451030

CRANKCASE KIT
(Superseded to 10020451031)

Note: Includes ITEMS 12-17

$131.99

$

Usually ships in 2-4 days

0

13

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 11

0

14

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

15

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

16

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

17

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 20+

0

18

Echo 88900005960

GASKET KIT
(Superseded to Discontinued)

$

$

Not available

19

Echo 15660152130

COIL, IGNITION
(Superseded to 15660152131)

$133.99

$

In Stock, only 1 left!

0

20

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

21

Echo 15011244330

GROMMET
(Superseded to Discontinued)

$

$

Not available

22

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

23

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

24

Echo 99944500071

SPARK PLUG -- BPM-7Y

$3.49

$

In Stock, Qty 11

0

25

Echo 15901010230

SPARK PLUG -- BPMR-7A

Note: CANADA MODELS

$3.49

$

In Stock, Qty 20+

0

26

Echo 16202152830

LEAD - IGNITION
(Superseded to V485001080)

$3.99

$

In Stock, Qty 7

0

27

Echo 15680144731

FLYWHEEL

$105.99

$

Usually ships in 2-4 days

0

28

Echo 10158746730

GUARD, ENGINE

$3.99

$

Usually ships in 2-4 days

0

29

Echo 10151444531

COVER, ENGINE - ORANGE

$20.99

$

In Stock, only 1 left!

0

30

Echo 90023804012

SCREW - 4X12

$0.99

$

In Stock, Qty 10

0

31

Echo 15991244530

GUARD, TOP - BLACK

$6.99

$

In Stock, only 1 left!

0

32

Echo 90025305016

SCREW - 5X16 -- TAPPING

$0.99

$

In Stock, Qty 20+

0

33

Echo 89003424661

LABEL - MODEL PPT-2400 T1E

$2.99

$

In Stock, only 2 left!

0
