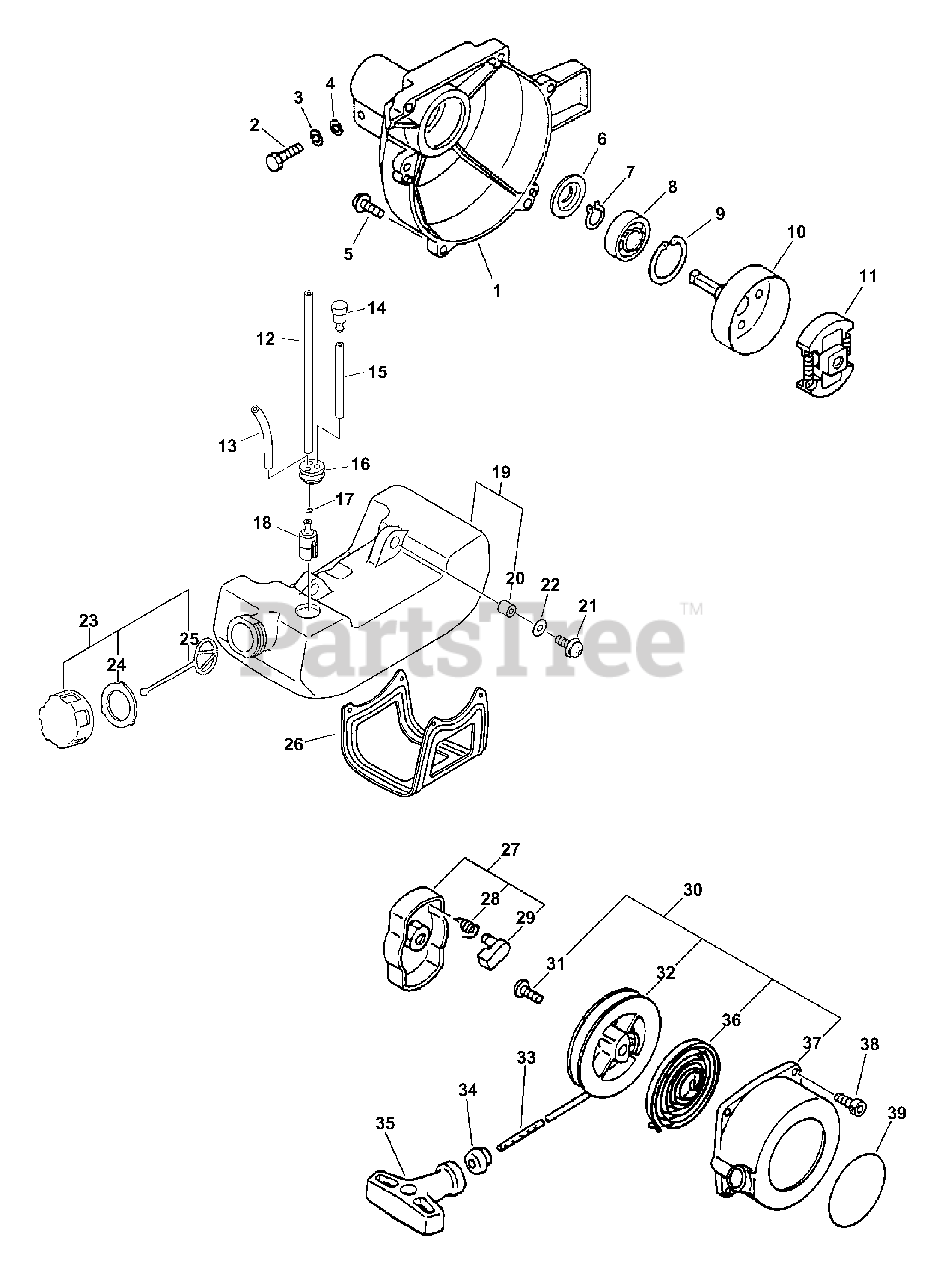

PPT-2400 - Echo Pole Saw (Type 1E) (Original Version) Clutch, Fan Case, Fuel System, Starter Parts Diagram

Pole Saw (Type 1E)

Clutch, Fan Case, Fuel System, Starter Parts Diagram

  • Title

1

Echo 10151144630

CASE, FAN - ORANGE

$43.99

$

Usually ships in 2-4 days

0

2

Echo 90015105025

BOLT - 5X25

$0.99

$

Usually ships in 2-4 days

0

3

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

4

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

5

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

6

Echo 17505304920

RETAINER, PIPE

$

$

Not available

7

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

8

Echo 90081406201

BEARING, BALL - 6201
(Superseded to 9405406201)

$11.99

$

Usually ships in 2-4 days

0

9

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 14

0

10

Echo 17500542030

DRUM, CLUTCH

$

$

Not available

11

Echo 17500056830

CLUTCH ASSY
(Superseded to 17500056831)

$27.99

$

In Stock, Qty 6

0

12

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 20+

0

13

Echo 13201056330

PIPE - 3X6X90 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 20+

0

14

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

15

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

16

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

17

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

18

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

19

Echo 13100546831

FUEL TANK ASSY

$15.99

$

In Stock, Qty 7

0

20

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 20+

0

21

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

22

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

23

Echo 13100455630

CAP ASSY

Note: INCLUDES ITEMS 24-25

$9.99

$

Usually ships in 2-4 days

0

24

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

25

Echo 13105152430

CONNECTOR, CAP

$1.49

$

In Stock, Qty 5

0

26

Echo 30511042030

GUARD, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

27

Echo 17720244330

STARTER PAWL ASSY
(Superseded to 17720244331)

Note: INCLUDES ITEMS 28-29

$16.99

$

In Stock, Qty 18

0

28

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 10

0

29

Echo 17721844330

PAWL, STARTER - BLACK

$3.49

$

In Stock, Qty 20+

0

30

Echo 17720042033

STARTER ASSY

Note: INCLUDES ITEMS 31-37

$49.99

$

In Stock, Qty 20+

0

31

Echo 17723644330

SCREW

$3.49

$

In Stock, only 1 left!

0

32

Echo 17721544430

REEL, ROPE

$8.99

$

In Stock, Qty 16

0

33

Echo 17722610120

ROPE, STARTER - 3X1000

Note: RePower BULK OPTION: 99944440000

$5.99

$

In Stock, Qty 6

0

34

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

35

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 20+

0

36

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, only 4 left!

0

37

Echo 17723242032

CASE, STARTER

$20.99

$

In Stock, only 2 left!

0

38

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

39

Echo 89011849130

LABEL - ECHO
(Superseded to X502000190)

$0.99

$

In Stock, Qty 20+

0
