PPT-235 E - Echo Pole Saw (SN: E07037001001 - E07037999999) Control Handle Parts Diagram

Pole Saw

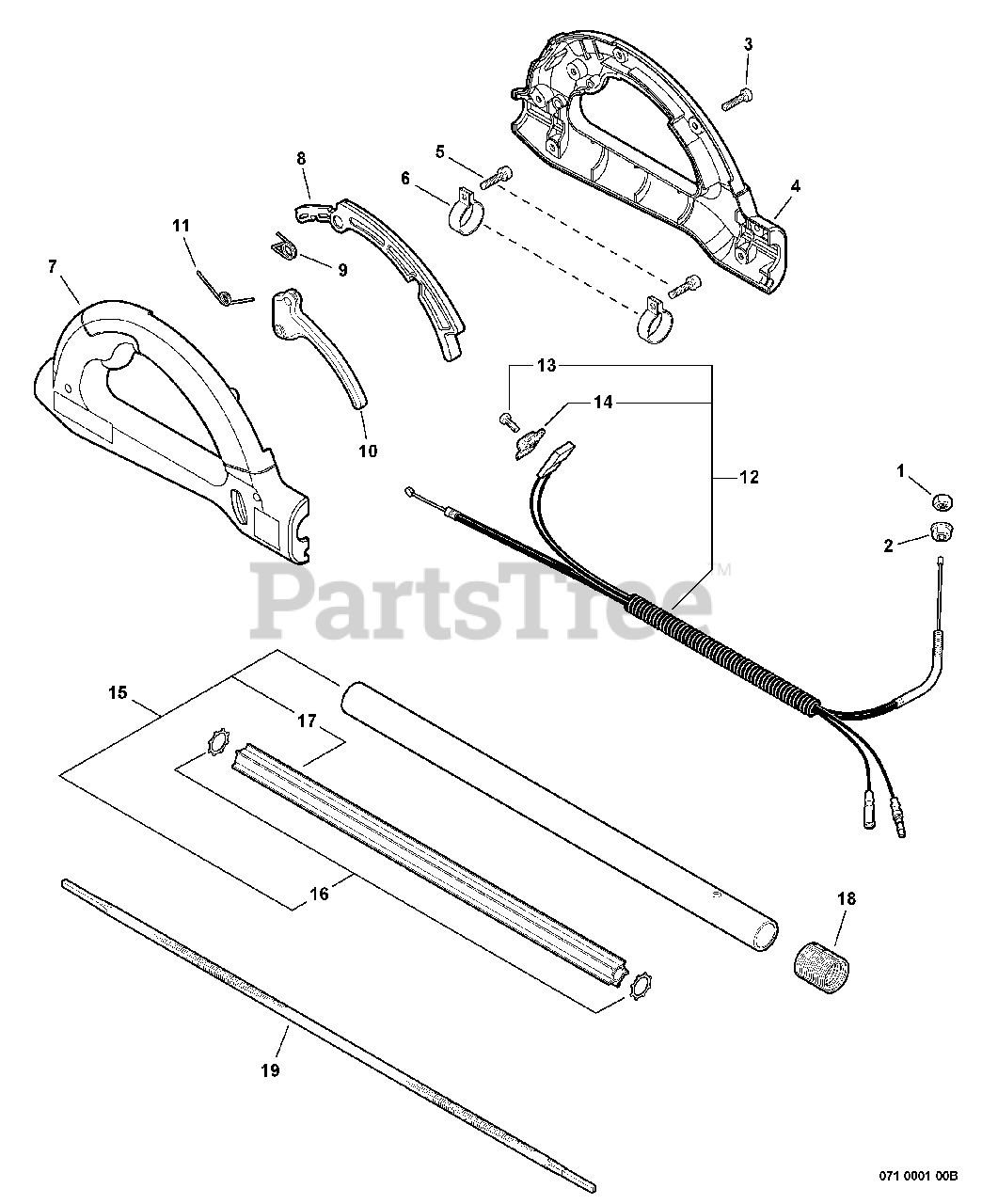

Control Handle Parts Diagram

  • Title

1

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 8

0

2

Echo 90051800006

NUT - 6 -- FLANGE

$1.49

$

In Stock, Qty 11

0

3

Echo V253000210

SCREW - 5X18

$0.99

$

In Stock, Qty 16

0

4

Echo C041000000

HANDLE - RIGHT
(Superseded to C041000001)

$10.99

$

Usually ships in 2-4 days

0

5

Echo V253000220

SCREW - 5X20

$1.49

$

In Stock, Qty 17

0

6

Echo V495000680

CLAMP

$1.49

$

In Stock, only 3 left!

0

7

Echo C041000011

HANDLE - LEFT
(Superseded to C041000012)

$10.99

$

Usually ships in 2-4 days

0

8

Echo C460000100

LEVER, TRIGGER LOCKOUT

$2.49

$

In Stock, only 2 left!

0

9

Echo V452000340

SPRING, LOCKOUT LEVER

$0.99

$

In Stock, only 3 left!

0

10

Echo C450000260

TRIGGER, THROTTLE

$1.99

$

In Stock, Qty 14

0

11

Echo V452000330

SPRING, TRIGGER

$0.99

$

In Stock, Qty 6

0

12

Echo P021033760

CONTROL CABLE ASSY

Note: Includes ITEMS 13-14

$21.99

$

Usually ships in 2-4 days

0

13

Echo 9154503010

SCREW - 3X10

$0.99

$

In Stock, Qty 20+

0

14

Echo A444000020

KNOB, SWITCH - ORANGE

$0.99

$

In Stock, Qty 20+

0

15

Echo C050000770

PIPE ASSY

Note: Includes ITEMS 16-17

$18.99

$

In Stock, only 4 left!

0

16

Echo V583000110

WASHER

$0.99

$

In Stock, Qty 17

0

17

Echo C507000160

LINER

$5.49

$

In Stock, only 1 left!

0

18

Echo V475004000

TUBE, PROTECTIVE - CORRUGATED

$0.99

$

In Stock, only 2 left!

0

19

Echo C506000140

DRIVESHAFT - FLEXIBLE
(Superseded to C506000100)

$47.99

$

In Stock, Qty 12

0
