PPT-231 - Echo Pole Saw (SN: 06001001 - 06999999) Clutch, Fan Case, Fuel System, Starter Parts Diagram

Pole Saw

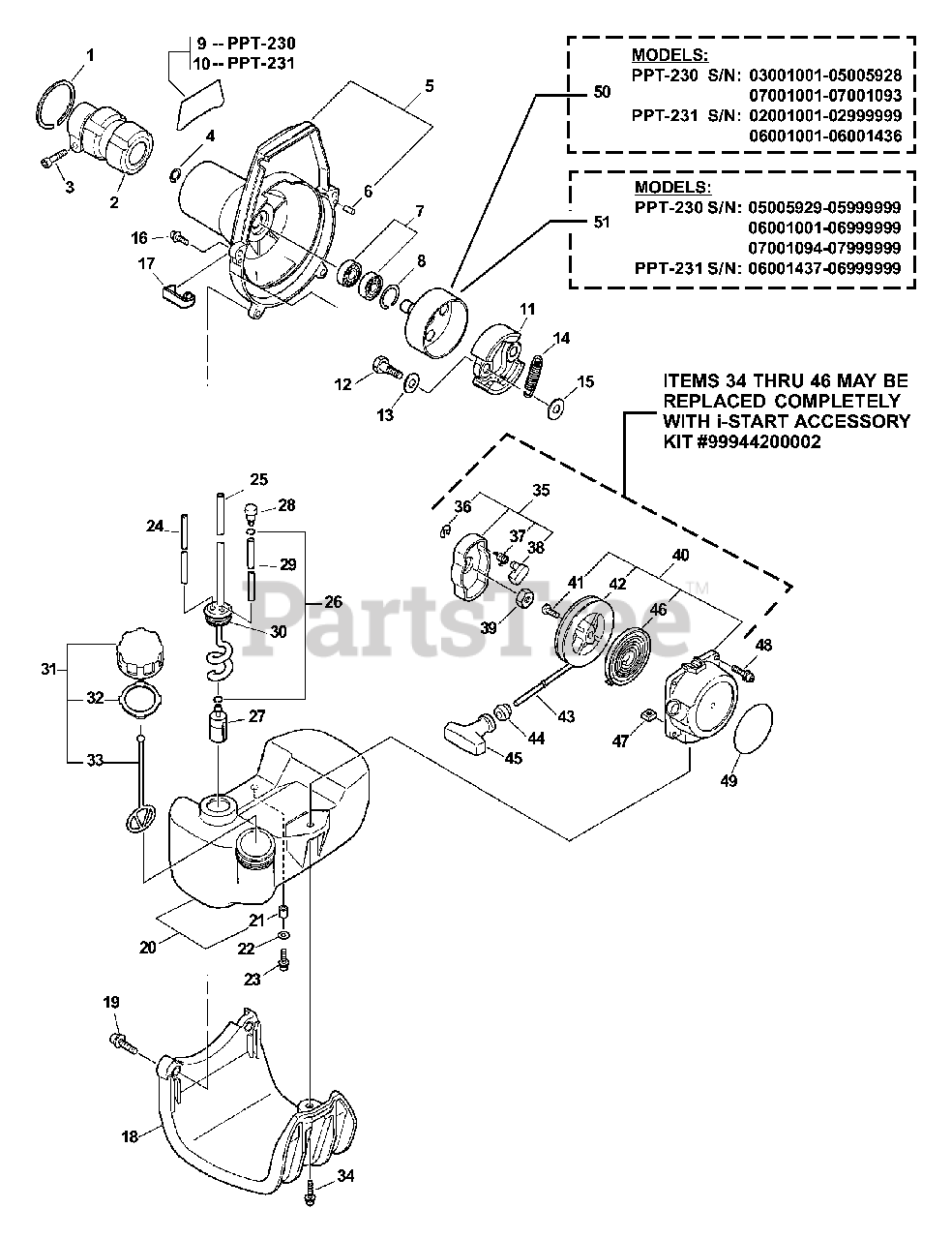

Clutch, Fan Case, Fuel System, Starter Parts Diagram

  • Title
1

Echo 90070200042

RING, RETAINING - 42

$1.99

$

In Stock, Qty 16

0

2

Echo 61092255931

CLAMP, MAIN PIPE

$33.99

$

Usually ships in 2-4 days

0

3

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 19

0

4

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

5

Echo A172000120

FAN CASE ASSY - ORANGE
(Superseded to A172000080)

Note: Includes ITEM 6

$57.99

$

Usually ships in 2-4 days

0

6

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

7

Echo 9405106001

BEARING, BALL - 6001
(Superseded to 9406106001)

$6.49

$

In Stock, Qty 6

0

8

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 19

0

9

Echo X503000980

LABEL - MODEL PPT-230

$2.99

$

Usually ships in 2-4 days

0

10

Echo X503001680

LABEL - MODEL PPT-231

$2.99

$

Usually ships in 2-4 days

0

11

Echo A553000010

SHOE, CLUTCH
(Superseded to A553000200)

$15.99

$

In Stock, Qty 20+

0

12

Echo 17504656030

BOLT, CLUTCH

$4.99

$

In Stock, Qty 12

0

13

Echo 17504956030

WASHER - SPRING

$1.49

$

In Stock, Qty 20+

0

14

Echo V451000090

SPRING, CLUTCH

$1.99

$

In Stock, Qty 9

0

15

Echo 17504805530

WASHER - 6

$1.49

$

In Stock, Qty 7

0

16

Echo 90016205018

SCREW - 5X18

$0.99

$

In Stock, Qty 5

0

$2.49

$

Usually ships in 2-4 days

0

18

Echo 30511057733

GUARD, FUEL TANK

$14.99

$

In Stock, only 2 left!

0

19

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

20

Echo A350000660

FUEL TANK ASSY
(Superseded to A350002320)

Note: Includes ITEM 21

$

$

Not available

21

$1.49

$

In Stock, Qty 20+

0

22

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

23

Echo 90016205016

SCREW - 5X16

$1.49

$

In Stock, Qty 20+

0

24

Echo 13201256030

PIPE - 3X6X80 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 20+

0

25

Echo 13201052030

PIPE - 3X6X170 -- BLACK
(Superseded to 13201052031)

Note: RePower BULK OPTION: 90015

$2.99

$

In Stock, Qty 15

0

26

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

27

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.49

$

In Stock, Qty 20+

0

28

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

29

Echo V471000110

PIPE - 3X6X115 -- BLACK
(Superseded to V471000111)

Note: RePower BULK OPTION: 90015

$2.49

$

In Stock, Qty 20+

0

30

Echo 13211555930

GROMMET
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 16

0

31

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

Note: INCLUDES ITEM 32-33

$6.49

$

In Stock, Qty 8

0

32

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

33

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

34

Echo 90024405020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

35

Echo A052000030

STARTER PAWL ASSY

Note: INCLUDES ITEMS 36-38

$12.99

$

In Stock, Qty 20+

0

36

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

37

Echo 17723440630

SPRING, RETURN

$3.49

$

In Stock, only 2 left!

0

38

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 6

0

39

$0.99

$

In Stock, only 2 left!

0

40

Echo 17720055931

STARTER ASSY

Note: INCLUDES ITEMS 41-46

$40.99

$

In Stock, Qty 6

0

41

$3.49

$

In Stock, only 1 left!

0

42

Echo 17721540630

REEL, ROPE

$9.99

$

In Stock, Qty 5

0

43

Echo 17722603930

ROPE, STARTER - 3.5X850

Note: RePower BULK OPTION: 99944445000

$5.99

$

In Stock, Qty 5

0

44

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 13

0

45

Echo 17722827030

GRIP, STARTER

$5.99

$

In Stock, Qty 20+

0

46

Echo 17722040630

SPRING, REWIND

$14.99

$

In Stock, Qty 11

0

47

Echo 90056500005

NUT - 5 -- SQUARE
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

48

Echo 9112604012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

49

Echo X502000190

LABEL - ECHO
(Superseded to X502000310)

$0.99

$

In Stock, Qty 20+

0

50

Echo A556000030

DRUM, CLUTCH

$47.99

$

In Stock, only 1 left!

0

51

Echo A556000280

DRUM, CLUTCH

$38.99

$

Usually ships in 2-4 days

0
