PPT-230 - Echo Pole Saw (SN: 07001001 - 07999999) Intake Parts Diagram

Pole Saw

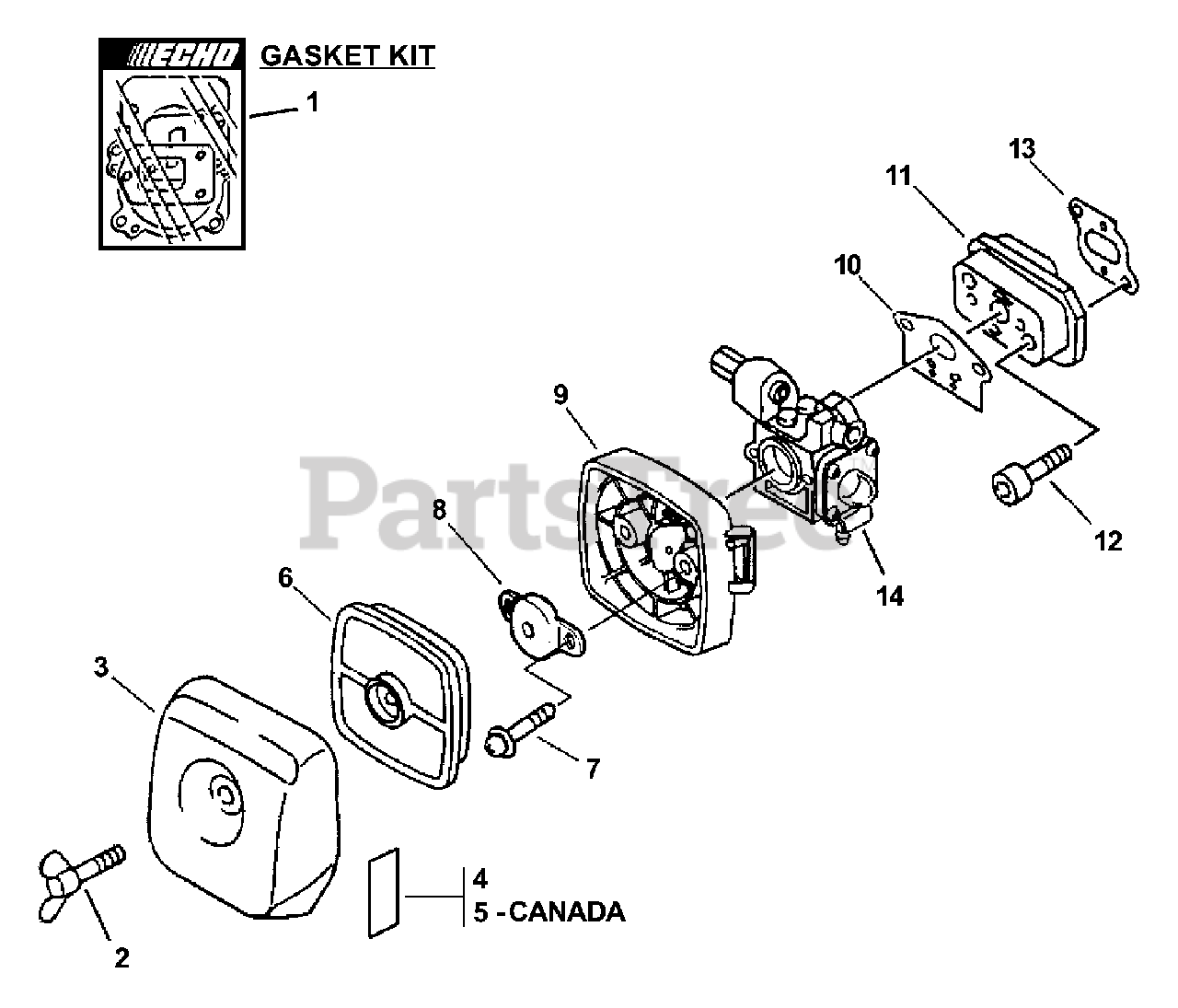

Intake Parts Diagram

  • Title
1

Echo P021003900

GASKET KIT
(Superseded to Discontinued)

$

$

Not available

2

Echo 21041752730

THUMBSCREW

$1.49

$

In Stock, Qty 20+

0

3

Echo 13031305863

COVER, AIR FILTER - BLACK

$6.49

$

In Stock, Qty 20+

0

4

Echo 89012152730

LABEL - CHOKE

$1.49

$

In Stock, Qty 20+

0

5

Echo 89033252730

LABEL - CHOKE

Note: CANADA MODELS

$1.49

$

In Stock, Qty 9

0

6

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$7.49

$

In Stock, Qty 20+

0

7

Echo 90024205060

SCREW - 5X60

$0.99

$

In Stock, Qty 10

0

8

Echo 12901152730

PLATE, PREVENT

$3.99

$

In Stock, Qty 20+

0

9

Echo P021004480

CASE, AIR FILTER - BLACK
(Superseded to P021049750)

$9.99

$

In Stock, Qty 20+

0

10

Echo 13001013410

GASKET, INTAKE

$1.99

$

In Stock, Qty 20+

0

11

Echo 13001756431

INSULATOR, INTAKE

$12.99

$

In Stock, only 1 left!

0

12

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

13

Echo 13001055930

GASKET, INTAKE

$1.49

$

In Stock, Qty 16

0

14

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available
