PPT-230 - Echo Pole Saw (SN: 04001001 - 04999999) Intake, Exhaust Parts Diagram

Pole Saw

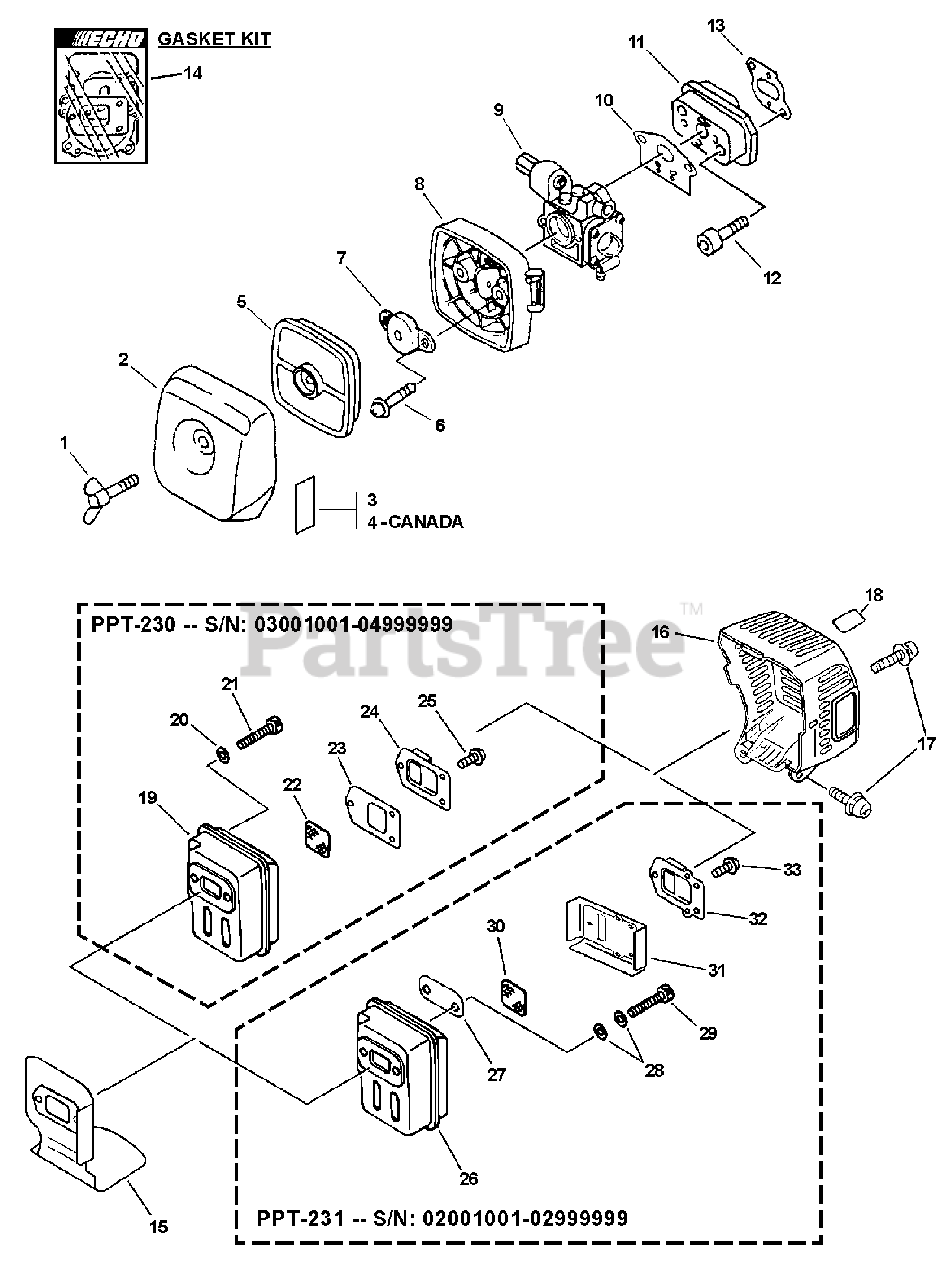

Intake, Exhaust Parts Diagram

  • Title
1

Echo 21041752730

THUMBSCREW

$1.49

$

In Stock, Qty 20+

0

2

Echo 13031305863

COVER, AIR FILTER - BLACK

$6.49

$

In Stock, Qty 20+

0

3

Echo 89012152730

LABEL - CHOKE

$1.49

$

In Stock, Qty 20+

0

4

Echo 89033252730

LABEL - CHOKE

Note: CANADA MODELS

$1.49

$

In Stock, Qty 10

0

5

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$7.49

$

In Stock, Qty 20+

0

6

Echo 90024205060

SCREW - 5X60

$0.99

$

In Stock, Qty 12

0

7

Echo 12901152730

PLATE, PREVENT

$3.99

$

In Stock, Qty 20+

0

8

Echo P021004480

CASE, AIR FILTER - BLACK
(Superseded to P021049750)

$9.99

$

In Stock, Qty 20+

0

9

Echo A021000061

CARBURETOR RB-K57A
(Superseded to A021000062)

$

$

Not available

10

Echo 13001013410

GASKET, INTAKE

$1.99

$

In Stock, Qty 20+

0

11

Echo 13001756431

INSULATOR, INTAKE

$12.99

$

In Stock, only 1 left!

0

12

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

13

Echo 13001055930

GASKET, INTAKE

$1.49

$

In Stock, Qty 17

0

14

Echo P021002351

GASKET KIT
(Superseded to P021002352)

$21.99

$

Usually ships in 2-4 days

0

15

Echo V104000061

SHIELD, EXHAUST

$9.49

$

In Stock, only 4 left!

0

16

Echo A320000001

COVER, EXHAUST
(Superseded to A320000002)

$9.99

$

In Stock, only 3 left!

0

17

Echo 90010605012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

18

Echo X505002310

LABEL - HOT SURFACE

$1.99

$

In Stock, Qty 20+

0

19

$46.99

$

In Stock, only 1 left!

0

20

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

21

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 14

0

22

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, Qty 20+

0

23

Echo V104000003

GASKET, EXHAUST

$2.99

$

In Stock, only 2 left!

0

24

Echo A313000160

GUIDE, EXHAUST
(Superseded to Discontinued)

$

$

Not available

25

Echo 9136704012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

26

Echo A300000141

MUFFLER
(Superseded to A300000790)

$73.99

$

In Stock, Qty 5

0

27

$1.49

$

In Stock, Qty 9

0

28

Echo V347000000

WASHER - CONICAL

$0.99

$

In Stock, Qty 12

0

29

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 14

0

30

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, Qty 20+

0

31

Echo V104000360

GASKET, EXHAUST
(Superseded to V104001760)

$6.99

$

In Stock, Qty 20+

0

32

Echo A313000130

GUIDE, EXHAUST

$9.99

$

In Stock, only 1 left!

0

33

Echo 136704010

SCREW - 4X10

$

$

Currently unavailable
