PPT-230 - Echo Pole Saw (SN: 03001001 - 03999999) Main Pipe, Throttle Cable, Stop Switch S/N: 03001001-03002773 Parts Diagram

Pole Saw

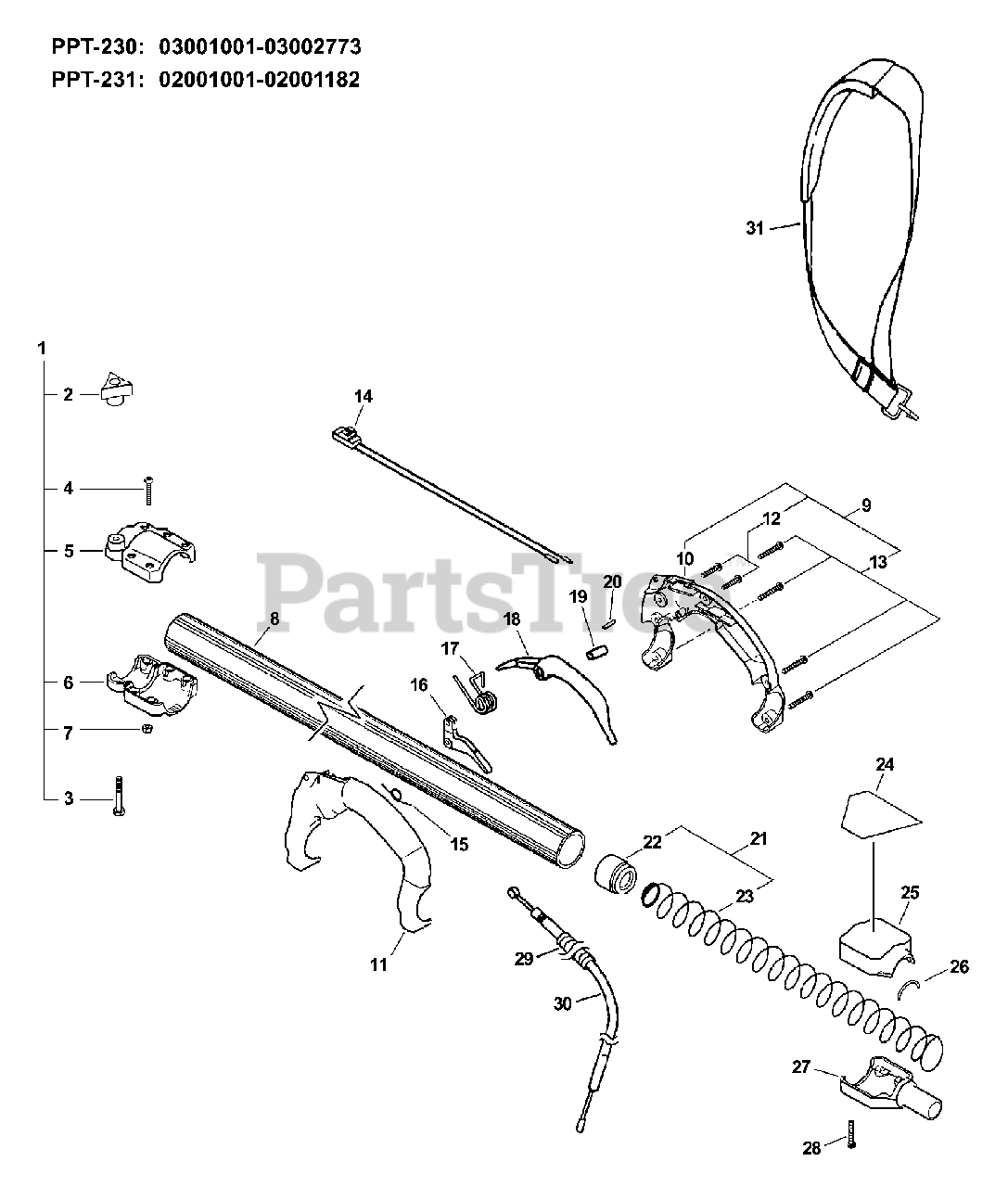

Main Pipe, Throttle Cable, Stop Switch S/N: 03001001-03002773 Parts Diagram

  • Title

1

Echo 61029522360

COLLAR ASSY

Note: INCLUDES ITEMS 2-7

$42.99

$

Usually ships in 2-4 days

0

2

Echo 13040622360

THUMBSCREW

Note: Includes ITEM 3

$5.99

$

Usually ships in 2-4 days

0

3

Echo V204000090

SCREW

$0.99

$

In Stock, Qty 20+

0

4

Echo 90005300400

SCREW - 10-24 X 1-1/4"

$0.99

$

In Stock, Qty 15

0

5

Echo 61028222460

COLLAR, MAIN PIPE - UPPER

$16.99

$

In Stock, only 1 left!

0

6

Echo 61028222360

COLLAR, MAIN PIPE - LOWER

$27.99

$

In Stock, only 4 left!

0

7

Echo 90003150100

LOCKNUT - 10-24

$0.99

$

In Stock, Qty 20+

0

8

Echo 61022224660

PIPE, MAIN - ORANGE
(Superseded to 61022222360)

$117.99

$

Usually ships in 2-4 days

0

9

Echo 35110022360

HANDLE ASSY - REAR
(Superseded to 35110022362)

Note: Includes ITEMS 10-13

$46.99

$

In Stock, only 3 left!

0

10

Echo 35110122561

HANDLE, REAR - LEFT
(Superseded to P021003530)

$20.99

$

Usually ships in 2-4 days

0

11

Echo 35111022562

HANDLE, REAR - RIGHT

$20.99

$

Usually ships in 2-4 days

0

12

Echo 90005300300

SCREW - 10-24 X 7/8"

$0.99

$

Usually ships in 2-4 days

0

13

Echo 90005300400

SCREW - 10-24 X 1-1/4"

$0.99

$

In Stock, Qty 15

0

14

Echo A440000280

IGNITION SWITCH ASSY

$11.99

$

In Stock, Qty 14

0

15

Echo 17804322360

SPRING, TRIGGER

$1.99

$

In Stock, Qty 13

0

16

Echo 17801022560

TRIGGER, THROTTLE

$3.49

$

In Stock, Qty 20+

0

17

Echo 17804322560

SPRING, LOCKOUT LEVER
(Superseded to 17804322561)

$1.49

$

In Stock, Qty 20+

0

18

Echo 17809022560

LOCKOUT, THROTTLE

$4.99

$

In Stock, Qty 7

0

19

Echo 61085022560

COLLAR - 5

$1.49

$

Usually ships in 2-4 days

0

20

Echo 88996022660

PIN - LOCATING

$0.99

$

In Stock, Qty 20+

0

21

Echo 43330722460

FLOATING BUSHING ASSY

Note: INCLUDES ITEMS 22-23

$13.99

$

In Stock, only 1 left!

0

22

Echo 43334522660

BUSHING, FLOATING

$5.99

$

Usually ships in 2-4 days

0

23

Echo 10494022560

SPRING

$7.49

$

In Stock, only 1 left!

0

24

Echo 89016022660

LABEL - CAUTION
(Superseded to 89016022661)

$7.99

$

In Stock, only 4 left!

0

25

Echo 61081022360

LOWER HSNG ADAPT (TOP)
(Superseded to P021003540)

$11.99

$

In Stock, only 1 left!

0

26

Echo 10491022460

CUSHION

$1.99

$

In Stock, only 3 left!

0

27

Echo C510000001

ADAPTER, LOWER SHAFT TUBE
(Superseded to C510000060)

$26.99

$

Usually ships in 2-4 days

0

28

Echo 90005300400

SCREW - 10-24 X 1-1/4"

$0.99

$

In Stock, Qty 15

0

29

Echo V475001290

TUBE, PROTECTIVE - CORRUGATED

$0.99

$

Usually ships in 2-4 days

0

30

Echo V430000720

CABLE, THROTTLE

$10.99

$

Usually ships in 2-4 days

0

31

Echo 30100022060

SHOULDER STRAP ASSY

$29.99

$

In Stock, Qty 8

0
