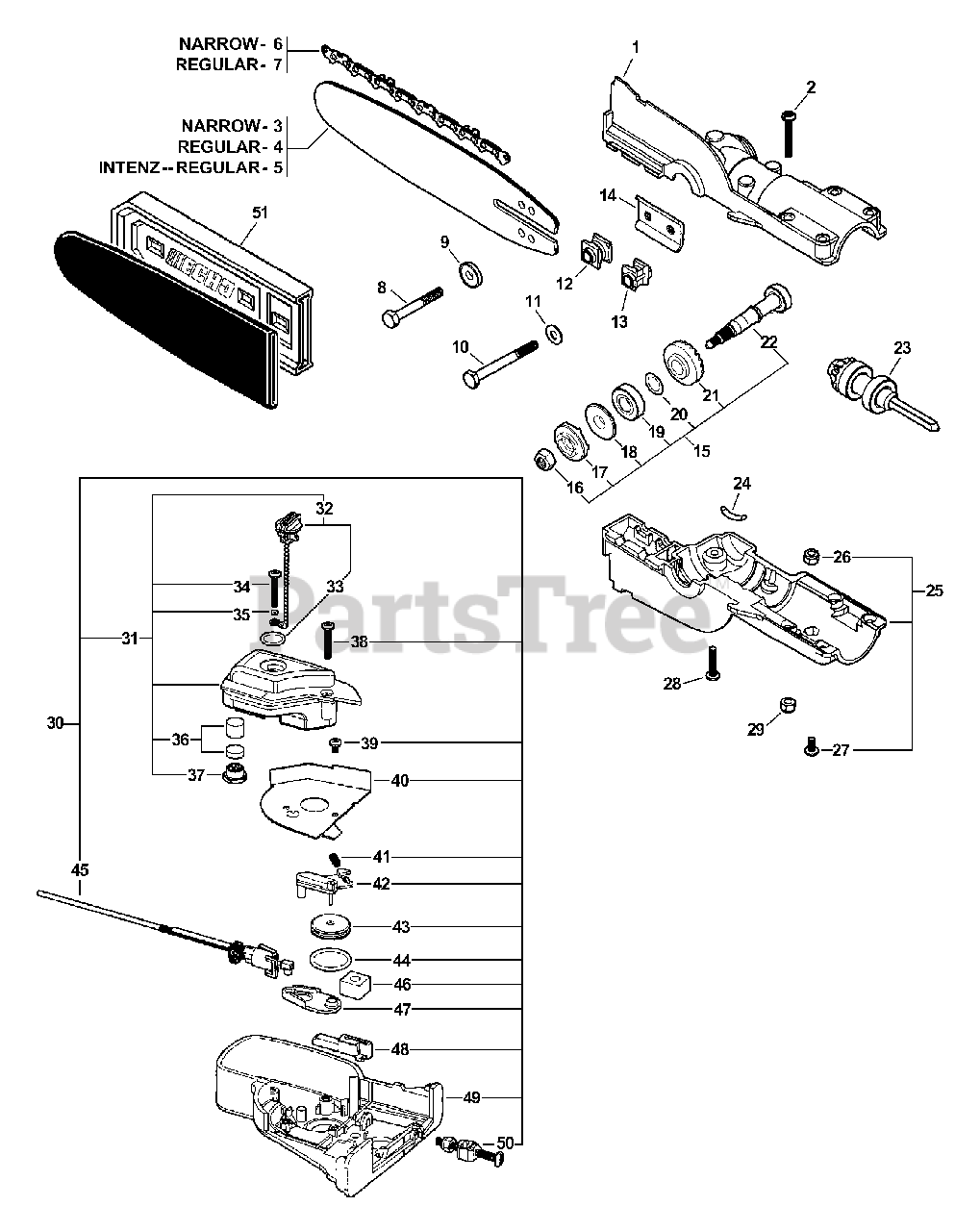

PPT-2100 - Echo Pole Saw (Type 1E) Gear Case, Auto-Oiler, Guide Bar, Chain S/N: 001001 - 506999 Parts Diagram

Pole Saw (Type 1E)

Gear Case, Auto-Oiler, Guide Bar, Chain S/N: 001001 - 506999 Parts Diagram

  • Title
1

Echo 61040722460

CASE, GEAR - UPPER
(Superseded to Discontinued)

$

$

Not available

2

Echo 90005300400

SCREW - 10-24 X 1-1/4"

$0.99

$

In Stock, Qty 14

0

3

Echo 1100373901

GUIDE BAR - 10" (25cm)
(Superseded to 10G4CD3739)

Note: GAUGE: .043"

$

$

Not available

4

Echo 1101373901

GUIDE BAR - 10" (25cm)
(Superseded to 10G0CD3739)

Note: GAUGE: .050"

$

$

Not available

5

Echo 1102373901

GUIDE BAR - 10" (25cm) Intenz

Note: GAUGE: .050"

$

$

Currently unavailable

6

Echo 1907039

SAW CHAIN - 10" (25cm)
(Superseded to 90PX39CQ)

Note: GAUGE: .043"

$14.99

$

In Stock, only 1 left!

0

7

Echo 1917039

SAW CHAIN - 10" (25cm)
(Superseded to 91VXL39CQ)

Note: GAUGE: .050"

$18.99

$

Usually ships in 2-4 days

0

8

Echo 90005100100

SCREW - 1/4-20 X 1-3/4"
(Superseded to V204000090)

$0.99

$

In Stock, Qty 20+

0

9

$2.99

$

Usually ships in 2-4 days

0

10

Echo 90005600200

BOLT - 1/4-20 X 2-1/4"

$0.99

$

Usually ships in 2-4 days

0

11

$0.99

$

Usually ships in 2-4 days

0

12

Echo 11007622360

SPACER
(Superseded to Discontinued)

$

$

Not available

13

$8.49

$

Usually ships in 2-4 days

0

14

Echo 43305522360

BRACKET, GUIDE BAR

$9.99

$

Usually ships in 2-4 days

0

15

Echo 61030622360

GEAR SHAFT ASSY

Note: Includes ITEMS 16-22

$114.99

$

In Stock, only 1 left!

0

$0.99

$

In Stock, only 3 left!

0

17

Echo 30281022360

SPROCKET, DRIVE

$25.99

$

Usually ships in 2-4 days

0

18

Echo 30281222360

SPACER, SPROCKET

$7.99

$

Usually ships in 2-4 days

0

19

Echo 90080206001

BEARING, BALL - 6001 DDU
(Superseded to 9404206001)

$9.99

$

In Stock, only 4 left!

0

20

$0.99

$

Usually ships in 2-4 days

0

21

Echo 61031122360

GEAR - BEVEL

$17.99

$

Usually ships in 2-4 days

0

22

Echo 61036022360

DRIVESHAFT SPROCKET ASSY

$23.99

$

Usually ships in 2-4 days

0

23

Echo 61030922360

SHAFT GEAR ASSY
(Superseded to 61030922361)

$53.99

$

In Stock, only 2 left!

0

24

$1.99

$

Usually ships in 2-4 days

0

25

Echo 61040722360

CASE, GEAR - LOWER

Note: INCLUDES ITEMS 26-27

$17.99

$

Usually ships in 2-4 days

0

26

Echo 90003150100

LOCKNUT - 10-24

$0.99

$

In Stock, Qty 20+

0

27

Echo 90005300200

SCREW
(Superseded to Discontinued)

$

$

Not available

28

Echo 90005300300

SCREW - 10-24 X 7/8"

$0.99

$

Usually ships in 2-4 days

0

29

Echo 90003150100

LOCKNUT - 10-24

$0.99

$

In Stock, Qty 20+

0

30

Echo 43700022360

AUTO-OILER ASSY
(Superseded to 90081)

Note: INCLUDES ITEMS 31-50

$170.99

$

In Stock, Qty 6

0

31

Echo 43600522360

OIL TANK ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 32-37

$

$

Not available

32

Echo 43600122060

CAP ASSY

Note: Includes ITEM 33

$9.99

$

In Stock, Qty 8

0

33

$1.49

$

Usually ships in 2-4 days

0

34

$0.99

$

In Stock, only 2 left!

0

35

$0.99

$

In Stock, Qty 9

0

36

Echo 43620522360

OIL FILTER ASSY

$3.99

$

Usually ships in 2-4 days

0

37

Echo 43724322360

HOUSING, OIL FILTER

$1.49

$

In Stock, only 4 left!

0

38

$0.99

$

In Stock, only 2 left!

0

39

$0.99

$

In Stock, only 3 left!

0

40

$21.99

$

Usually ships in 2-4 days

0

41

$1.49

$

Usually ships in 2-4 days

0

42

Echo 70700022360

LINK, OILER IDLER
(Superseded to Discontinued)

$

$

Not available

43

Echo 43706822360

CAM, OIL PUMP
(Superseded to Discontinued)

$

$

Not available

44

$1.99

$

In Stock, only 3 left!

0

45

Echo 43700022460

AUTO-OILER ASSY
(Superseded to Discontinued)

$

$

Not available

46

Echo 11007622560

SPACER
(Superseded to Discontinued)

$

$

Not available

47

Echo 43704122360

LINK, OILER DRIVE

$4.49

$

Usually ships in 2-4 days

0

48

Echo 16821822160

PIPE, OIL OUTLET

$2.49

$

In Stock, Qty 5

0

49

Echo 43760522360

COVER, OIL PUMP

$29.99

$

In Stock, only 1 left!

0

50

Echo 43309522360

TENSIONER KIT

$14.99

$

In Stock, only 1 left!

0

51

Echo 89851322160

COVER, GUIDE BAR
(Superseded to X490000060)

$4.49

$

In Stock, only 1 left!

0
