PPT-2100 - Echo Pole Saw (Type 1E) Carburetor Parts Diagram

Pole Saw (Type 1E)

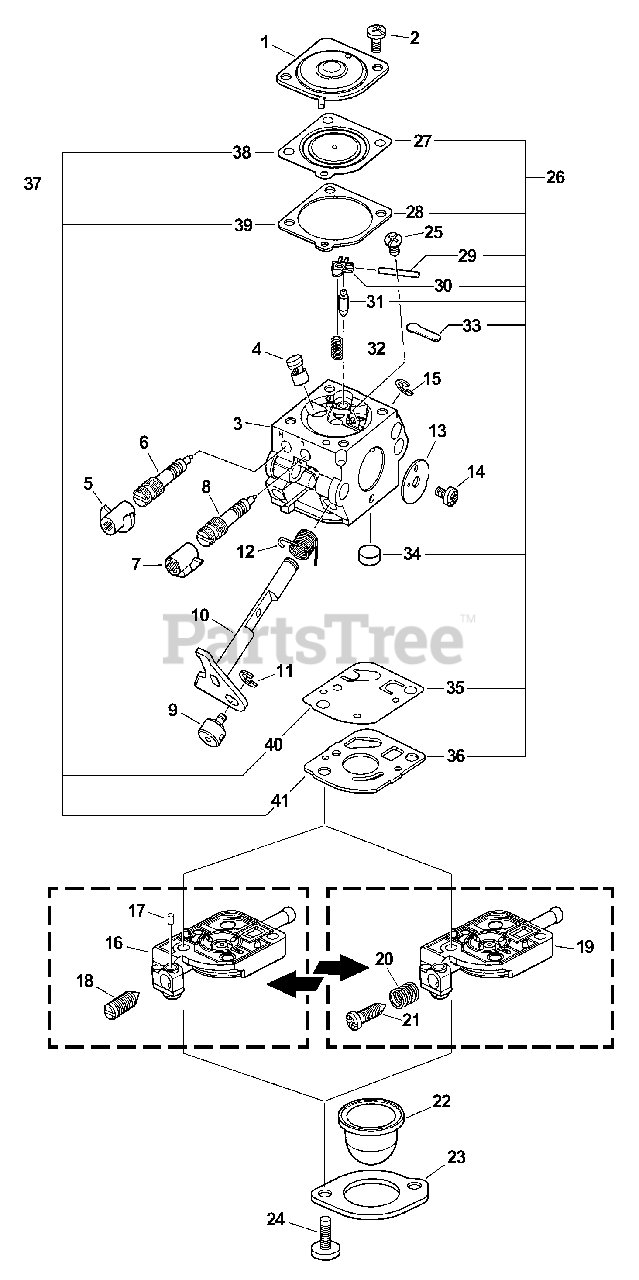

Carburetor Parts Diagram

  • Title

Echo 12520013311

CARBURETOR C1U-K52
(Superseded to 12520013312)

$78.99

$

In Stock, Qty 20+

0

1

Echo 12534213210

COVER, METERING
(Superseded to 12534252130)

$3.99

$

Usually ships in 2-4 days

0

2

Echo 12534452130

SCREW

$0.99

$

In Stock, Qty 8

0

3

------------------

BODY, CARBURETOR

$

$

Not available

4

Echo 12537613120

NOZZLE, CHECK VALVE

$6.49

$

Usually ships in 2-4 days

0

5

Echo 12532939030

CAP, LIMITER

$1.99

$

In Stock, Qty 11

0

6

Echo 12532013310

NEEDLE - HIGH SPEED

$3.99

$

Usually ships in 2-4 days

0

7

Echo 12532909860

CAP, LIMITER

$1.99

$

In Stock, Qty 13

0

8

Echo 12531813310

NEEDLE - LOW SPEED
(Superseded to 12531813120)

$4.99

$

Usually ships in 2-4 days

0

9

Echo 12537242030

SWIVEL

$4.49

$

Usually ships in 2-4 days

0

10

Echo 12531749030

SHAFT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

11

Echo 12532713930

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

12

Echo 12531342030

SPRING, RETURN

$1.49

$

In Stock, Qty 12

0

13

Echo 12531649030

VALVE, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

14

Echo 12531413930

SCREW

$1.49

$

Usually ships in 2-4 days

0

15

Echo 12532715130

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

16

Echo P005000990

BASE, PURGE

$22.99

$

In Stock, only 4 left!

0

17

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

18

Echo 12533413930

SCREW, IDLE ADJUST

$1.49

$

In Stock, only 4 left!

0

19

Echo P005000590

BASE, PURGE

$23.99

$

Usually ships in 2-4 days

0

20

Echo 12533306960

SPRING, IDLE ADJUST

$1.49

$

In Stock, Qty 10

0

21

Echo 12533406960

SCREW, IDLE ADJUST

$4.99

$

Usually ships in 2-4 days

0

22

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

23

Echo 12536311610

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 8

0

24

Echo 12531011610

SCREW, RETAINER

$1.49

$

In Stock, Qty 13

0

25

Echo 12533942030

SCREW, METERING LEVER PIN

$0.99

$

In Stock, Qty 12

0

26

Echo 12530013310

REPAIR KIT
(Superseded to P005002840)

Note: INCLUDES ITEMS 27-36

$18.99

$

In Stock, Qty 9

0

27

------------------

DIAPHRAGM, METERING

$

$

Not available

28

------------------

GASKET, METERING

$

$

Not available

29

------------------

PIN, METERING LEVER

$

$

Not available

30

------------------

LEVER, METERING

$

$

Not available

31

------------------

VALVE, INLET NEEDLE

$

$

Not available

32

------------------

SPRING, METERING LEVER

$

$

Not available

33

------------------

PLUG, WELCH

$

$

Not available

34

------------------

STRAINER

$

$

Not available

35

------------------

DIAPHRAGM, PUMP

$

$

Not available

36

------------------

GASKET, PUMP

$

$

Not available

37

Echo 12530313310

DIAPHRAGM/GASKET KIT

Note: INCLUDES ITEMS 38-41

$8.99

$

In Stock, only 1 left!

0

38

------------------

DIAPHRAGM, METERING

$

$

Not available

39

------------------

GASKET, METERING

$

$

Not available

40

------------------

DIAPHRAGM, PUMP

$

$

Not available

41

------------------

GASKET, PUMP

$

$

Not available
