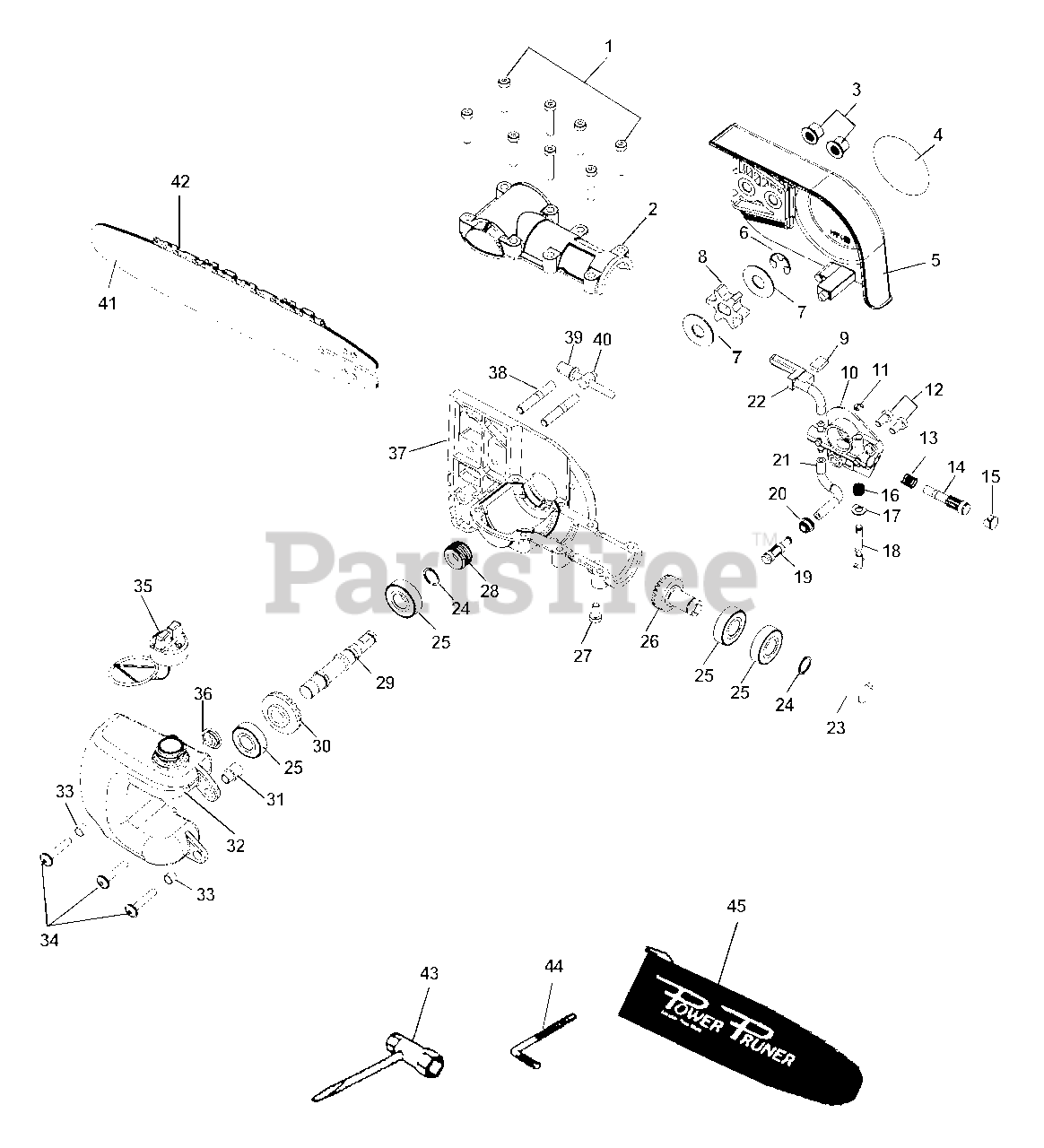

PPSR-2433 - Echo Pole Saw (Type 1E) (SN: 504000 - 999999) Gearcase, Guide Bar, Chain, Auto Oiler, Tools Parts Diagram

Pole Saw (Type 1E)

Gearcase, Guide Bar, Chain, Auto Oiler, Tools Parts Diagram

  • Title

Echo 90080

OILER/GEAR BOX ASSY
(Superseded to 90084)

Note: Includes ITEMS 1-39

$158.99

$

Usually ships in 2-4 days

0

1

Echo V253000000

SCREW - 5X25
(Superseded to 90010905025)

$0.99

$

In Stock, only 4 left!

0

2

Echo C531000010

CASE, GEAR - UPPER

$87.99

$

In Stock, only 1 left!

0

3

Echo 43301903933

NUT - 6 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

4

Echo 89011849130

LABEL - ECHO
(Superseded to X502000190)

$0.99

$

In Stock, Qty 20+

0

5

Echo C300000000

GUARD, SPROCKET
(Superseded to C300000001)

$16.99

$

Usually ships in 2-4 days

0

6

Echo V583000010

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

7

Echo 17501439131

WASHER

$2.49

$

In Stock, Qty 5

0

8

Echo C580000070

SPROCKET, DRIVE

$4.99

$

In Stock, Qty 15

0

9

Echo 43724439130

PAD, FOAM

$0.99

$

In Stock, Qty 20+

0

10

Echo 43700239130

AUTO-OILER ASSY

Note: Includes ITEMS 11-17

$70.99

$

Usually ships in 2-4 days

0

11

Echo 12312715030

RING, RETAINING

$0.99

$

In Stock, only 3 left!

0

12

Echo V253000010

SCREW - 5X10
(Superseded to Discontinued)

$

$

Not available

13

Echo 43701938330

SPRING, PLUNGER

$3.99

$

Usually ships in 2-4 days

0

14

Echo 43702437330

PLUNGER ASSY

$23.99

$

In Stock, only 1 left!

0

15

Echo 43706237330

CAP, OIL PUMP

$3.99

$

In Stock, only 3 left!

0

16

Echo 43701537330

SPRING

$3.99

$

Usually ships in 2-4 days

0

17

Echo 43702937330

WASHER

$2.99

$

Usually ships in 2-4 days

0

18

Echo 43701639130

NEEDLE, ADJUST

$17.99

$

Usually ships in 2-4 days

0

19

Echo 43620502832

FILTER, OIL

$8.99

$

In Stock, only 1 left!

0

20

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 15

0

21

Echo 13011014330

PIPE - 3X6X75 -- BLACK

Note: RePower BULK OPTION: 90014

$2.99

$

In Stock, Qty 7

0

22

Echo V470000180

PIPE, OIL OUTLET
(Superseded to V470000181)

$1.99

$

In Stock, only 4 left!

0

23

Echo V362000010

COLLAR - 22

$2.99

$

Usually ships in 2-4 days

0

24

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 12

0

25

Echo 9404206001

BEARING, BALL - 6001

$9.99

$

In Stock, only 4 left!

0

26

Echo V651000030

GEAR - BEVEL
(Superseded to V651000031)

$74.99

$

In Stock, only 1 left!

0

27

Echo V253000010

SCREW - 5X10
(Superseded to Discontinued)

$

$

Not available

28

Echo V652000021

GEAR - WORM

$14.99

$

In Stock, only 1 left!

0

29

Echo C534000020

GEAR - SHAFT
(Superseded to P021005391)

$

$

Not available

30

Echo 61031122060

GEAR - BEVEL
(Superseded to P021011610)

$

$

Not available

31

Echo V354000010

SPACER

$6.99

$

Usually ships in 2-4 days

0

32

Echo C200000000

TANK, OIL

$9.99

$

Usually ships in 2-4 days

0

33

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 20+

0

34

Echo V253000020

SCREW - 5X20

$1.49

$

In Stock, Qty 9

0

35

Echo P021000950

CAP ASSY
(Superseded to P021000951)

$2.99

$

In Stock, Qty 16

0

36

Echo 13131406320

VENT

$5.49

$

In Stock, Qty 6

0

37

Echo C531000020

CASE, GEAR - LOWER
(Superseded to C051000110)

$75.99

$

Usually ships in 2-4 days

0

38

Echo V224000000

STUD - 6

$2.49

$

Usually ships in 2-4 days

0

39

Echo 43301639131

SCREW, TENSIONER

$4.49

$

In Stock, Qty 20+

0

40

Echo 43301403931

TENSIONER, CHAIN

$4.99

$

In Stock, Qty 20+

0

41

Echo 1121374401

GUIDE BAR - 12" (30cm)
(Superseded to 12G0ZD3744C)

Note: GAUGE: .050"

$33.99

$

Usually ships in 2-4 days

0

41

Echo 1122374401

GUIDE BAR - 12" (30cm) Intenz
(Superseded to 12G0ZD3744C)

Note: GAUGE: .050"

$33.99

$

Usually ships in 2-4 days

0

42

Echo 1917044

SAW CHAIN - 12" (30cm)

Note: GAUGE: .050"

$21.99

$

In Stock, only 1 left!

0

43

Echo 89541522160

T-WRENCH
(Superseded to Discontinued)

$

$

Not available

44

Echo 89561203430

HEX KEY - 3mm
(Superseded to X605000090)

$0.99

$

In Stock, only 3 left!

0

45

Echo 89851322360

COVER, GUIDE BAR - 12" (30cm)
(Superseded to X490000050)

$4.49

$

In Stock, Qty 20+

0
