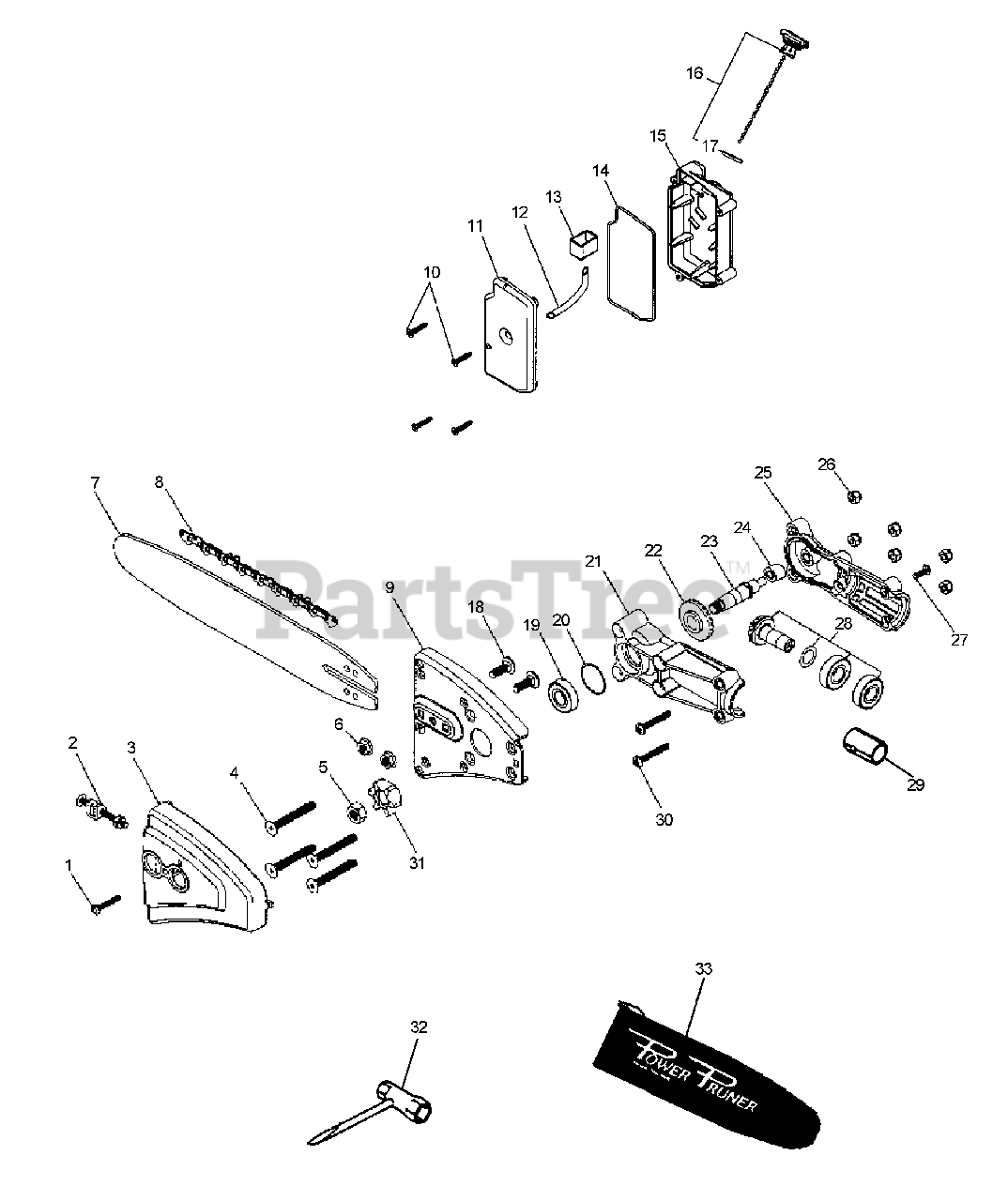

PPSR-2433 - Echo Pole Saw (Type 1E) (SN: 001001 - 503999) Gearcase, Guide Bar, Saw Chain, Oiler, Tools Parts Diagram

Pole Saw (Type 1E)

Gearcase, Guide Bar, Saw Chain, Oiler, Tools Parts Diagram

  • Title
1

Echo 90005300100

SCREW - 8-32 X 1"

$0.99

$

In Stock, only 2 left!

0

2

Echo 43309522060

TENSIONER KIT
(Superseded to Discontinued)

$

$

Not available

3

Echo 43301022060

GUARD, SPROCKET
(Superseded to Discontinued)

$

$

Not available

$0.99

$

Usually ships in 2-4 days

0

$0.99

$

In Stock, only 3 left!

0

6

Echo 90004000100

NUT - FLANGE

$0.99

$

In Stock, only 2 left!

0

7

Echo 43041122460

GUIDE BAR - 12" (30cm)

$

$

Currently unavailable

8

Echo 1917044

SAW CHAIN - 12" (30cm)

Note: GAUGE: .050"

$21.99

$

In Stock, Qty 5

0

9

Echo 43300422160

SAW BAR CARRIER

$19.99

$

Usually ships in 2-4 days

0

10

Echo 90005800100

SCREW
(Superseded to Discontinued)

$

$

Not available

11

Echo 43601022060

TANK, OIL (CHAIN SIDE)

$2.99

$

Usually ships in 2-4 days

0

12

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

13

Echo 16821822060

CUP, OIL
(Superseded to Discontinued)

$

$

Not available

14

$1.49

$

In Stock, only 1 left!

0

15

Echo 43601122060

TANK, OIL (CAP SIDE)

$3.99

$

Usually ships in 2-4 days

0

16

Echo 43600122060

CAP ASSY

Note: Includes ITEM 17

$9.99

$

In Stock, Qty 8

0

17

$1.49

$

Usually ships in 2-4 days

0

18

Echo 90006000100

BOLT
(Superseded to Discontinued)

$

$

Not available

19

Echo 90080206001

BEARING, BALL - 6001 DDU
(Superseded to 9404206001)

$9.99

$

In Stock, only 2 left!

0

20

Echo 90003500400

SHIM .004"

$1.99

$

In Stock, only 2 left!

0

21

Echo 61046022760

CASE, GEAR - RIGHT

$4.99

$

In Stock, only 1 left!

0

22

Echo 61031122060

GEAR - BEVEL
(Superseded to P021011610)

$

$

Not available

23

Echo 61030922160

SHAFT GEAR ASSY

$14.99

$

Usually ships in 2-4 days

0

24

Echo 43334522060

GUIDE, DRIVESHAFT

$0.99

$

In Stock, Qty 8

0

25

Echo 61041022060

CASE, GEAR - RIGHT
(Superseded to Discontinued)

$

$

Not available

26

Echo 90003150100

LOCKNUT - 10-24

$0.99

$

In Stock, Qty 20+

0

27

Echo 90005400100

SCREW
(Superseded to 9511113050)

$0.99

$

In Stock, only 3 left!

0

28

Echo 61030922060

SHAFT GEAR ASSY

$46.99

$

In Stock, only 3 left!

0

29

Echo V362000000

COLLAR - 22
(Superseded to V362000010)

$2.99

$

Usually ships in 2-4 days

0

30

Echo 90005300400

SCREW - 10-24 X 1-1/4"

$0.99

$

In Stock, Qty 14

0

31

Echo 30281022060

SPROCKET

$3.49

$

Usually ships in 2-4 days

0

32

Echo 89541522160

T-WRENCH
(Superseded to Discontinued)

$

$

Not available

33

Echo 89851322360

COVER, GUIDE BAR - 12" (30cm)
(Superseded to X490000050)

$4.49

$

In Stock, Qty 20+

0
