PPSR-2122 - Echo Pole Saw (Type 1E) (SN: 001001 - 504999) Driveshaft, Handles, Ignition Switch, Throttle Parts Diagram

Pole Saw (Type 1E)

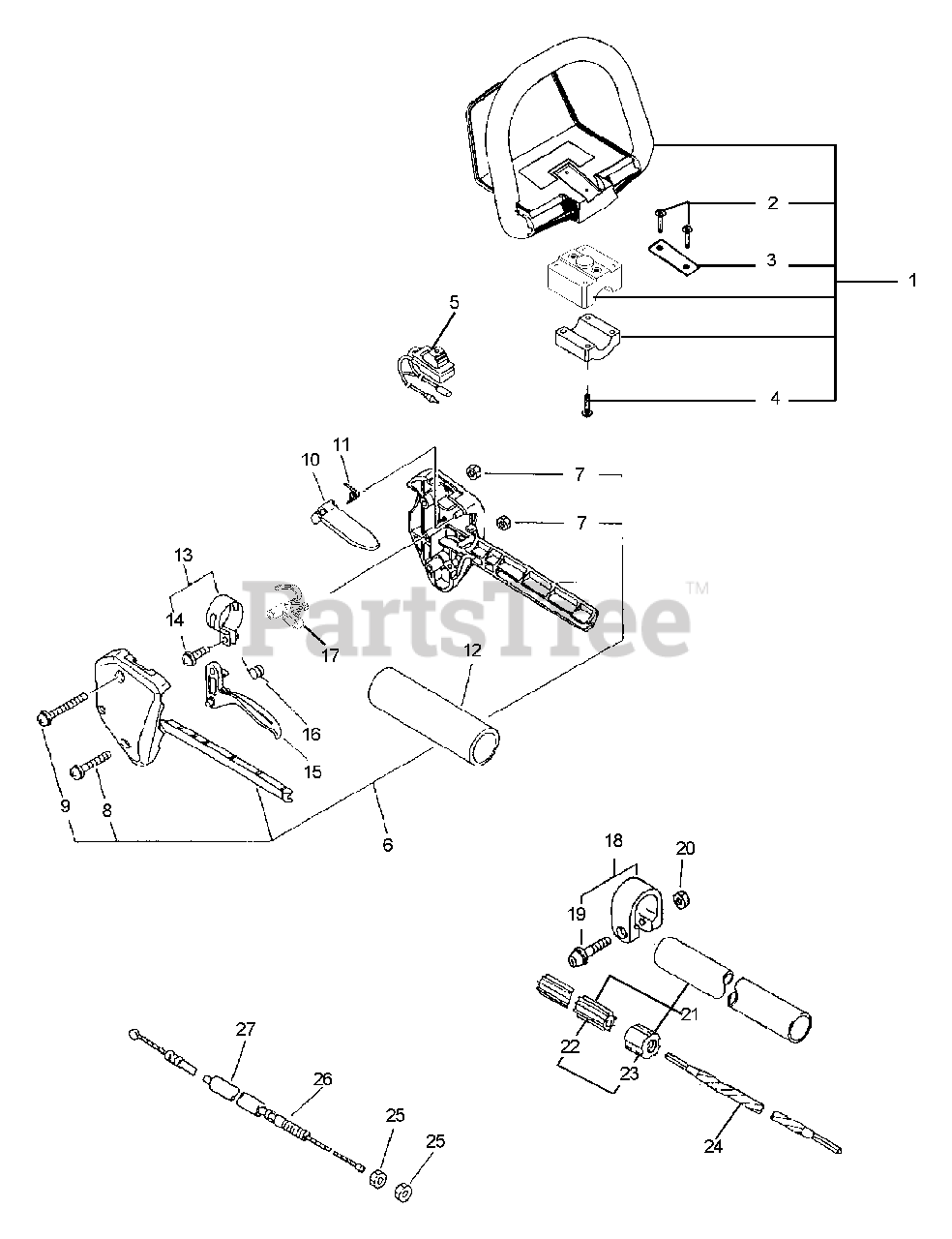

Driveshaft, Handles, Ignition Switch, Throttle Parts Diagram

  • Title
1

Echo 35120121560

HANDLE ASSY - FRONT

Note: INCLUDES ITEMS 2 - 4

$25.99

$

Usually ships in 2-4 days

0

2

Echo 90016205030

SCREW - 5X30

$0.99

$

In Stock, only 3 left!

0

$7.49

$

In Stock, only 1 left!

0

4

Echo 88995021560

SCREW - 5

$0.99

$

In Stock, only 2 left!

0

5

Echo 16340155631

IGNITION SWITCH ASSY

$8.99

$

In Stock, Qty 7

0

6

Echo 17800352730

CONTROL HANDLE ASSY
(Superseded to 17800352731)

Note: INCLUDES ITEMS 7 - 9

$10.99

$

Usually ships in 2-4 days

0

7

$0.99

$

In Stock, Qty 20+

0

8

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

9

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

10

Echo 17809052632

LEVER, TRIGGER LOCKOUT

$2.49

$

In Stock, Qty 20+

0

11

Echo 17801352630

SPRING, LOCKOUT LEVER

$2.49

$

In Stock, Qty 12

0

12

Echo 35121352730

GRIP, HANDLE - REAR
(Superseded to Discontinued)

$

$

Not available

13

Echo 30121252730

CLAMP KIT
(Superseded to Discontinued)

Note: Includes ITEM 14

$

$

Not available

14

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

15

Echo 17801052130

TRIGGER, THROTTLE

$3.49

$

In Stock, Qty 20+

0

16

Echo 17804342230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

17

Echo 17801252730

LOCKOUT, THROTTLE

$4.99

$

In Stock, Qty 17

0

18

Echo 61027252730

CLAMP

Note: INCLUDES ITEMS 19 & 20

$9.99

$

Usually ships in 2-4 days

0

19

Echo 90024205028

SCREW - 5X28

$0.99

$

In Stock, Qty 7

0

20

$0.99

$

In Stock, Qty 20+

0

21

Echo 61020626260

MAIN PIPE ASSY

Note: INCLUDES ITEMS 22 & 23

$24.99

$

Usually ships in 2-4 days

0

22

Echo 61021721660

LINER - FLEXIBLE

$9.49

$

Usually ships in 2-4 days

0

23

$4.49

$

In Stock, Qty 7

0

24

Echo 61001321660

DRIVESHAFT - FLEXIBLE
(Superseded to C506000380)

$11.99

$

In Stock, only 2 left!

0

25

$0.99

$

In Stock, only 3 left!

0

26

Echo 17800151030

CABLE, THROTTLE

$17.99

$

In Stock, Qty 6

0

27

Echo 17812721360

TUBE, PROTECTIVE - CORRUGATED
(Superseded to Discontinued)

$

$

Not available
