PPR 1742ST A - Poulan Pro Lawn Tractor (1999) CHASSIS AND ENCLOSURES Parts Diagram

Lawn Tractor

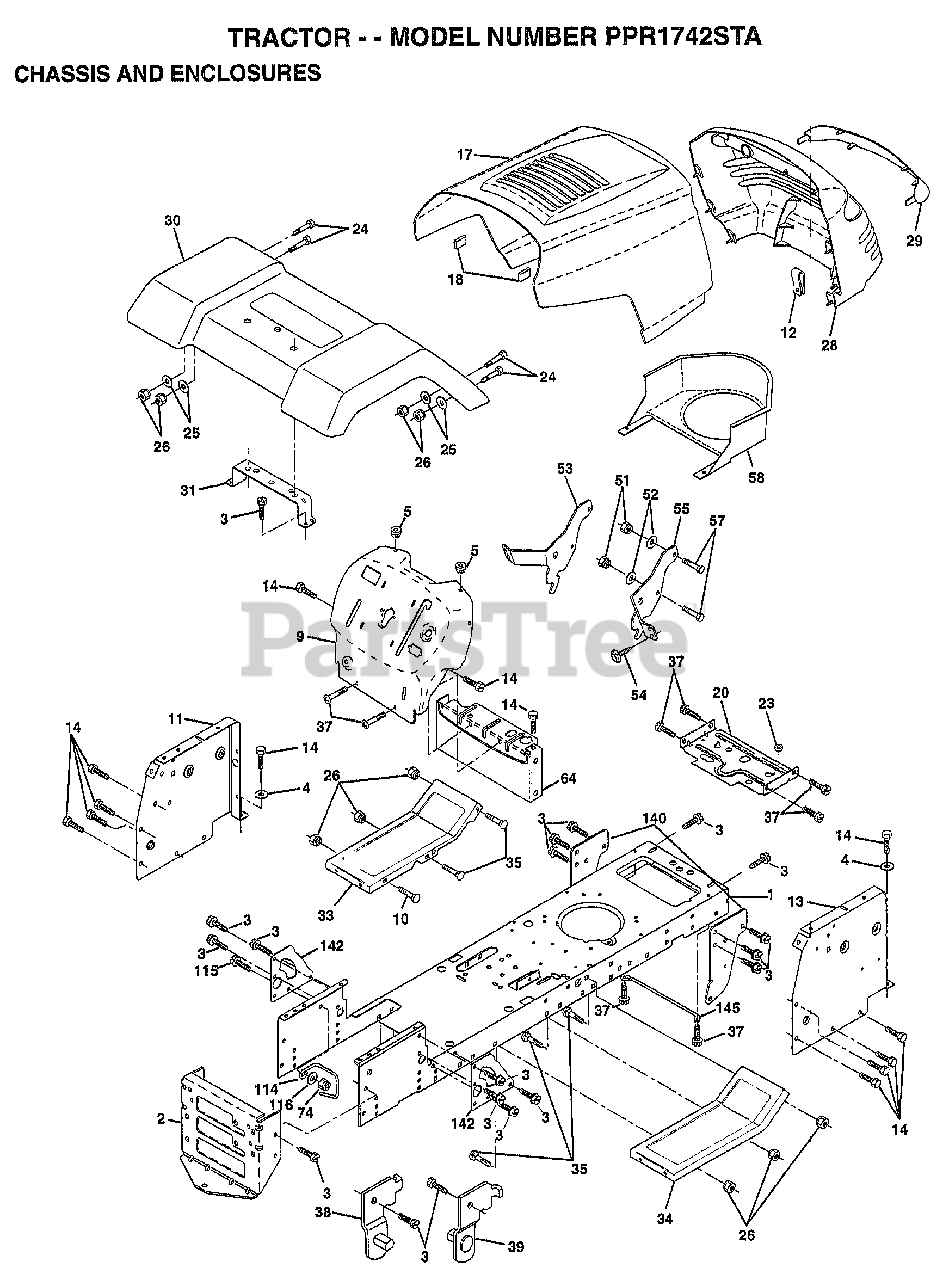

CHASSIS AND ENCLOSURES Parts Diagram

  • Title
1

Electrolux/AYP 166819

CHASSIS.STLT.STAMPING

$

$

Not available

2

Electrolux/AYP 140356

SUB= 145009

$

$

Not available

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 19131216

WASHER
(Superseded to 819131216)

$

$

Not available

5

Electrolux/AYP 155272

BUMPER-HOOD/DASH
(Superseded to 532155272)

$7.49

$

In Stock, only 3 left!

0

$

$

Not available

10

Murray 72140608

SUB= 72110608

$

$

Not available

11

Electrolux/AYP 155927

"PANEL-DASH,LH"
(Superseded to 174996)

$

$

Not available

12

Electrolux/AYP 145660

CLIP.TINNERMAN
(Superseded to 532145660)

$3.49

$

In Stock, only 1 left!

0

13

Electrolux/AYP 169118

PANEL.ASM.DASH.RH
(Superseded to 172108)

$

$

Not available

14

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 159639X428

"HOOD W/TRIM,MS428"
(Superseded to 532182408)

$80.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 126938X

SUB= 532126938
(Superseded to 532126938)

$

$

Not available

20

Electrolux/AYP 156437

"PLATE-MTG,BATT/FU"
(Superseded to 180679)

$11.99

$

Usually ships in 3-10 days

0

23

Murray 124028X

SUB= 532124028

$

$

Not available

24

Electrolux/AYP 74780616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

26

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 157428

GRILL
(Superseded to 532179844)

$

$

Not available

29

Electrolux/AYP 146654X599

GRILLE.LENS
(Superseded to 532146654)

$

$

Not available

30

Electrolux/AYP 168749X428

FENDER.FOOTREST.SPLT.PNT
(Superseded to 583722201)

$206.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 139976

BRACKET SUPT FEND
(Superseded to 532139976)

$17.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 145244X428

FOOTREST PNT LH
(Superseded to 532182507)

$43.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 145243X428

FOOTREST.RH.LT/GT
(Superseded to 532182508)

$

$

Not available

35

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 17490508

SCREW LT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 139886

BRACKET ASM LH
(Superseded to 532139886)

$8.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 139887

BRACKET ASM RH
(Superseded to 532139887)

$

$

Not available

51

Electrolux/AYP 73800400

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 19091416

WASHER
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 144697

BRACKET.GRILLE.LH
(Superseded to 532144697)

$

$

Not available

54

Electrolux/AYP 161464

SCREW.HEX.WS.HD
(Superseded to 532161464)

$

$

Not available

55

Electrolux/AYP 144696

BRACKET.GRILLE.RH
(Superseded to 532144696)

$

$

Not available

57

Electrolux/AYP 74780412

SUB= 74780414
(Superseded to 874780412)

$

$

Not available

58

Electrolux/AYP 150127

AIR DUCT
(Superseded to 532150127)

$

$

Not available

64

Electrolux/AYP 154798

DASH-LOWER
(Superseded to 532154798)

$20.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

114

Electrolux/AYP 158112

"KEEPER-BELT,RR.LH"
(Superseded to 532158112)

$8.99

$

Usually ships in 3-10 days

0

115

Electrolux/AYP 17490620

SCREW
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

116

Murray 19131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

140

Electrolux/AYP 158418

BRKT SUSPENSION
(Superseded to 532158418)

$

$

Not available

142

Electrolux/AYP 165867

PLATE.REINFORCEMENT
(Superseded to 532175702)

$9.49

$

Usually ships in 3-10 days

0

145

Electrolux/AYP 156524

"ROD POVOT,CHASSIS"
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

Electrolux/AYP 5479J

PLUG BUTTON T
(Superseded to 532005479)

$5.99

$

Usually ships in 3-10 days

0
