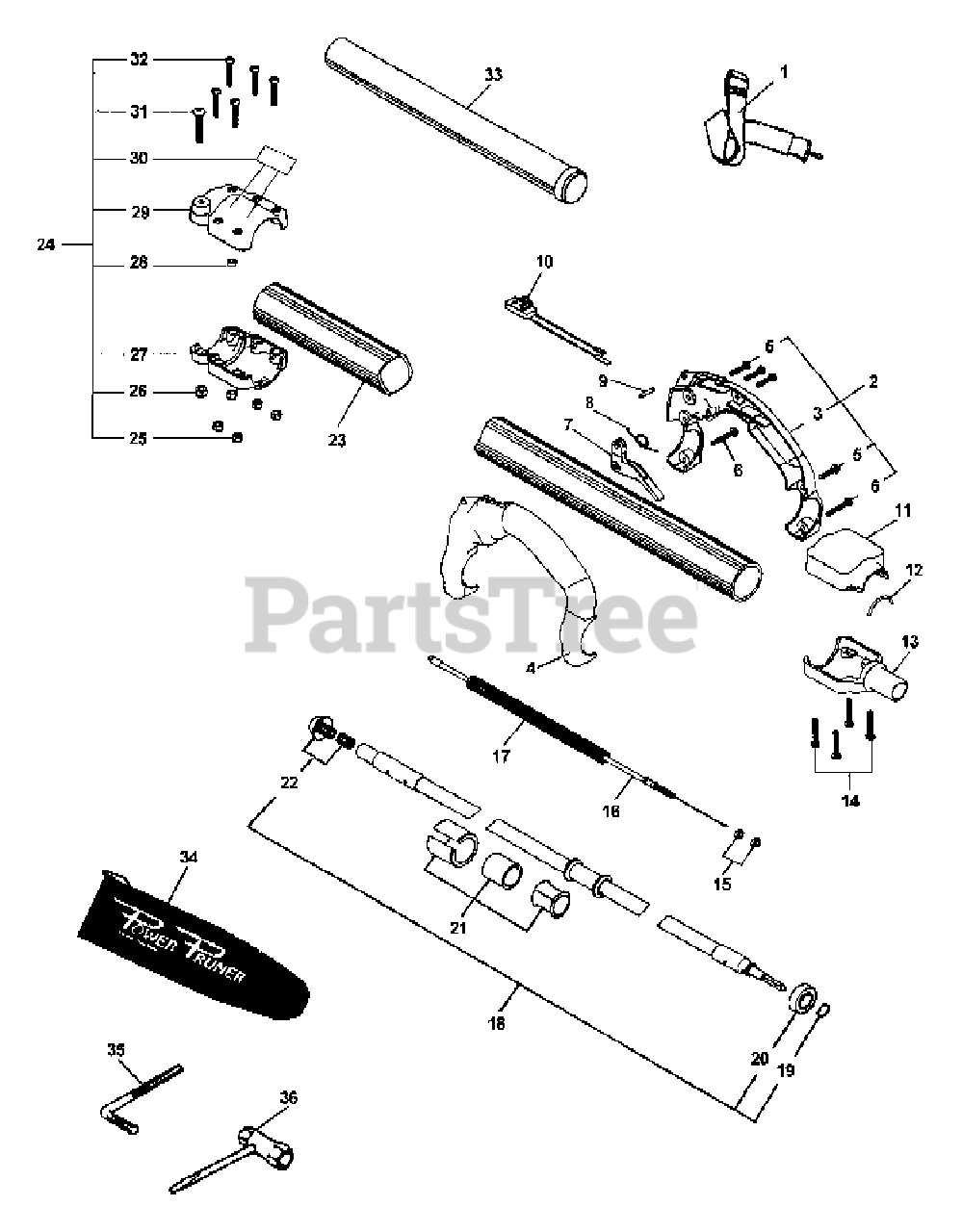

PPFD-2400 - Echo Pole Saw (Type 1E) (SN: 001001 - 501000) Driveshaft, Handle, Harness, Stop Switch, Throttle Parts Diagram

Pole Saw (Type 1E)

Driveshaft, Handle, Harness, Stop Switch, Throttle Parts Diagram

  • Title

1

Echo 30100022060

SHOULDER STRAP ASSY

$29.99

$

In Stock, Qty 9

0

2

Echo 35110022560

HANDLE ASSY - REAR
(Superseded to P021004860)

Note: INCLUDES ITEMS 3 - 6

$

$

Not available

3

Echo 35112922360

HANDLE, REAR - RIGHT
(Superseded to P021004860)

$

$

Not available

4

Echo 35110122360

HANDLE, REAR - LEFT
(Superseded to P021004860)

$

$

Not available

5

Echo 90005300400

SCREW - 10-24 X 1-1/4"

$0.99

$

In Stock, Qty 18

0

6

Echo 90005300300

SCREW - 10-24 X 7/8"

$0.99

$

Usually ships in 2-4 days

0

7

Echo 17801005631

TRIGGER, THROTTLE
(Superseded to C450000060)

$1.49

$

In Stock, Qty 20+

0

8

Echo 17804322360

SPRING, TRIGGER

$1.99

$

In Stock, Qty 14

0

9

Echo 88996022660

PIN - LOCATING

$0.99

$

In Stock, Qty 20+

0

10

Echo 16340155631

IGNITION SWITCH ASSY

$8.99

$

In Stock, Qty 7

0

11

Echo 61081022360

LOWER HSNG ADAPT (TOP)
(Superseded to P021003540)

$11.99

$

In Stock, only 1 left!

0

12

Echo 10491022460

CUSHION

$1.99

$

In Stock, only 3 left!

0

13

Echo 61024822360

ADAPTER - LOWER
(Superseded to C510000050)

$25.99

$

In Stock, only 1 left!

0

14

Echo 90005300400

SCREW - 10-24 X 1-1/4"

$0.99

$

In Stock, Qty 18

0

15

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 5

0

16

Echo 17800151030

CABLE, THROTTLE

$17.99

$

In Stock, Qty 6

0

17

Echo 17801622360

TUBE, PROTECTIVE - CORRUGATED

$1.49

$

Usually ships in 2-4 days

0

18

Echo 61000622560

DRIVESHAFT ASSY

Note: INCLUDES ITEMS 19 - 22

$175.99

$

In Stock, only 1 left!

0

19

Echo 10022922460

RING, RETAINING

$0.99

$

In Stock, only 3 left!

0

20

Echo 90080206002

BEARING, BALL - 6002

$16.99

$

Usually ships in 2-4 days

0

21

Echo 43330722560

DRIVESHAFT GUIDE ASSY

$40.99

$

Usually ships in 2-4 days

0

22

Echo 61029822360

ADAPTER, DRIVESHAFT - UPPER

$3.99

$

Usually ships in 2-4 days

0

23

Echo 61021022060

PIPE, MAIN

$145.99

$

Usually ships in 2-4 days

0

24

Echo 61029522260

COLLAR ASSY

Note: INCLUDES ITEMS 25 - 32

$49.99

$

Usually ships in 2-4 days

0

25

Echo 90003150100

LOCKNUT - 10-24

$0.99

$

In Stock, Qty 20+

0

26

Echo 90003100100

LOCKNUT

$0.99

$

Usually ships in 2-4 days

0

27

Echo 61028222360

COLLAR, MAIN PIPE - LOWER

$27.99

$

In Stock, only 4 left!

0

28

Echo 61026024160

SLEEVE

$3.99

$

Usually ships in 2-4 days

0

29

Echo 61028222460

COLLAR, MAIN PIPE - UPPER

$16.99

$

In Stock, only 1 left!

0

30

Echo 89016022460

LABEL - CAUTION

$

$

Currently unavailable

31

Echo 90006500300

SCREW

$0.99

$

Usually ships in 2-4 days

0

32

Echo 90005300400

SCREW - 10-24 X 1-1/4"

$0.99

$

In Stock, Qty 18

0

33

Echo 60520622060

PIPE, MAIN

$44.99

$

Usually ships in 2-4 days

0

34

Echo 89851322160

COVER, GUIDE BAR
(Superseded to X490000060)

$4.49

$

In Stock, only 1 left!

0

35

Echo 89561203430

HEX KEY - 3mm
(Superseded to X605000090)

$0.99

$

In Stock, only 3 left!

0

36

Echo 89541522160

T-WRENCH
(Superseded to Discontinued)

$

$

Not available
