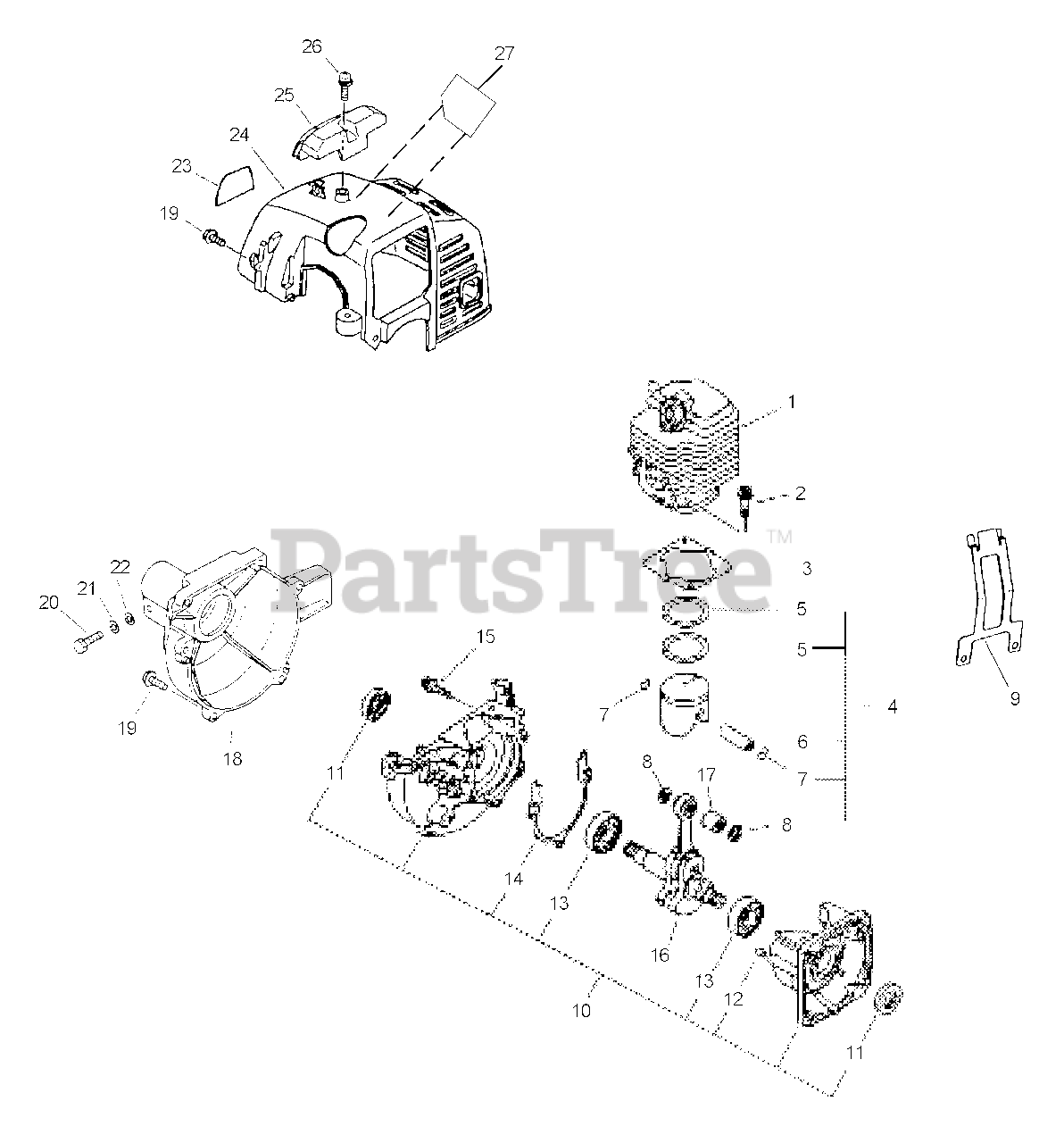

PPFD-2400 - Echo Pole Saw (Type 1E) (SN: 001001 - 501000) Crankcase, Engine, Engine Cover, Fan Case Parts Diagram

Pole Saw (Type 1E)

Crankcase, Engine, Engine Cover, Fan Case Parts Diagram

  • Title
1

Echo 10101108960

CYLINDER
(Superseded to 10100308960)

$

$

Not available

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

3

Echo 10101044332

GASKET, CYLINDER

Note: INCLUDED IN KIT P/N 88900005960

$3.99

$

In Stock, Qty 8

0

4

Echo 10000009562

PISTON KIT
(Superseded to 10000009563)

Note: INCLUDES ITEMS 5 - 8

$70.99

$

In Stock, only 1 left!

0

5

Echo 10001109560

RING, PISTON

$8.49

$

Usually ships in 2-4 days

0

6

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

8

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

9

Echo 10158746730

GUARD, ENGINE

$3.99

$

Usually ships in 2-4 days

0

10

------------------

CRANKCASE ASSY

Note: INCLUDES ITEMS 11 - 15 (USE P/N SB1027)

$

$

Not available

11

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 13

0

12

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

13

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 11

0

14

------------------

GASKET, CRANKCASE

Note: INCLUDED IN KIT P/N 88900005960

$

$

Not available

15

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 20+

0

16

------------------

CRANKSHAFT ASSY

Note: INCLUDES ITEM 17 (USE P/N SB1027)

$

$

Not available

17

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$9.99

$

In Stock, only 2 left!

0

18

Echo 10151144630

CASE, FAN - ORANGE

$43.99

$

Usually ships in 2-4 days

0

19

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

20

Echo 90015105025

BOLT - 5X25

$0.99

$

Usually ships in 2-4 days

0

21

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

22

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

23

Echo 89014044530

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

24

Echo 10151444531

COVER, ENGINE - ORANGE

$20.99

$

In Stock, only 1 left!

0

25

Echo 15991244530

GUARD, TOP - BLACK

$6.99

$

In Stock, only 1 left!

0

26

Echo 90025305016

SCREW - 5X16 -- TAPPING

$0.99

$

In Stock, Qty 20+

0

27

Echo 89016022660

LABEL - CAUTION
(Superseded to 89016022661)

$7.99

$

In Stock, only 4 left!

0

Echo SB1027

SHORT BLOCK -- SB1027
(Superseded to Discontinued)

$

$

Not available

Echo 88900005960

GASKET KIT
(Superseded to Discontinued)

Note: INCLUDES THE FOLLOWING ITEMS

$

$

Not available

Echo 10101044332

GASKET, CYLINDER

$3.99

$

In Stock, Qty 8

0

Echo 14586642031

GASKET, EXHAUST

$2.49

$

In Stock, Qty 6

0

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 16

0

------------------

GASKET, CRANKCASE

$

$

Not available

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, Qty 16

0

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 9

0

Echo 13001005960

GASKET, INTAKE

$1.99

$

In Stock, only 2 left!

0

Echo 61041401260

GASKET, GEAR CASE

$1.49

$

In Stock, Qty 14

0
