PPF-300 ES - Echo Pole Saw (SN: E06537001001 - E06537999999) Fuel System Parts Diagram

Pole Saw

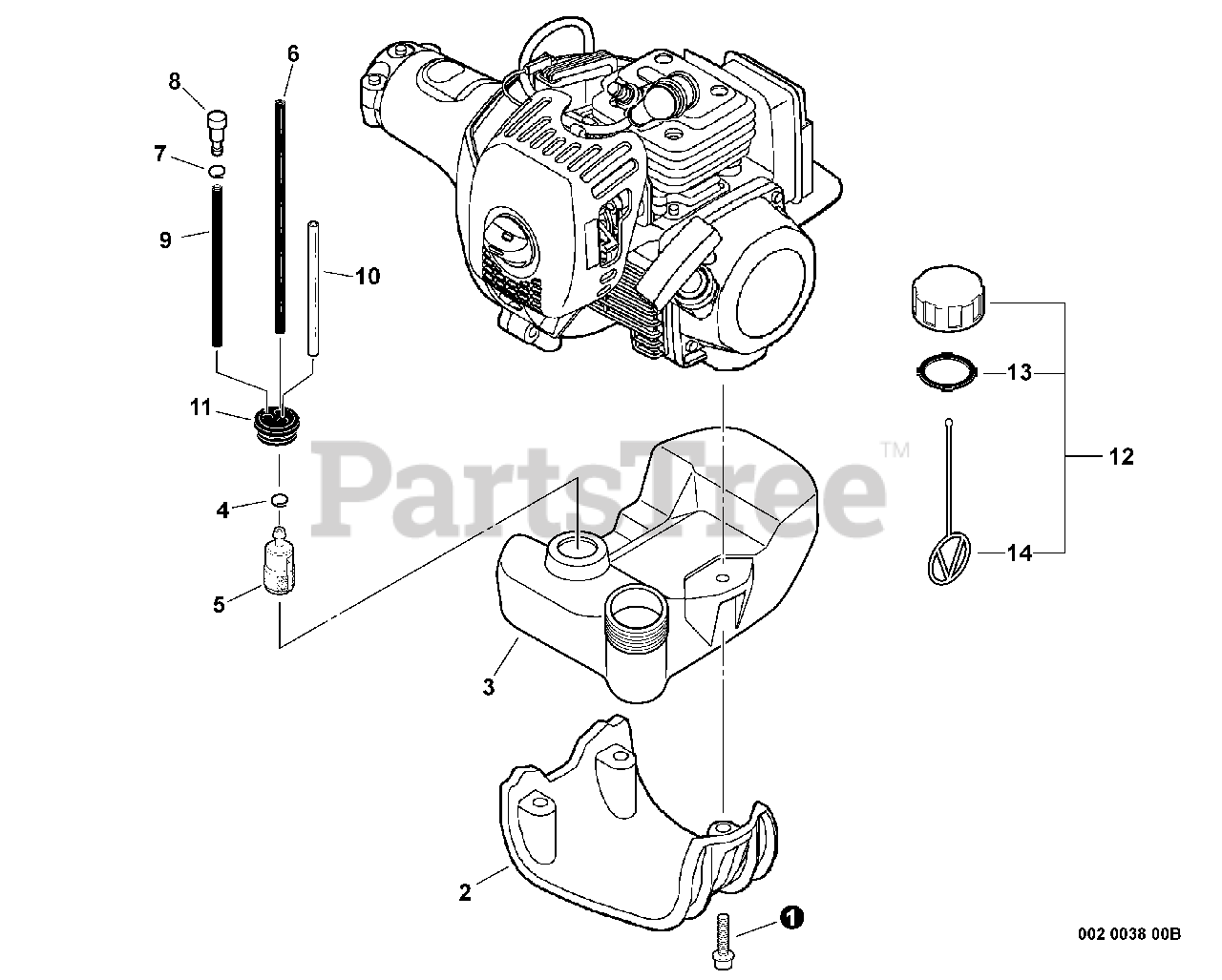

Fuel System Parts Diagram

  • Title

1

Echo 90010605020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

2

Echo A175000040

GUARD, FUEL TANK

$7.99

$

In Stock, only 1 left!

0

3

Echo A350000900

TANK, FUEL

$29.99

$

In Stock, only 1 left!

0

4

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

5

Echo A369000000

FILTER, FUEL
(Superseded to A369000001)

$6.99

$

In Stock, Qty 20+

0

6

Echo V470000580

PIPE - 3X5X195 -- BLACK
(Superseded to V470000581)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

7

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

8

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

9

Echo V471000110

PIPE - 3X6X115 -- BLACK
(Superseded to V471000111)

Note: RePower BULK OPTION: 90015

$2.49

$

In Stock, Qty 20+

0

10

Echo 13201256030

PIPE - 3X6X80 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 20+

0

11

Echo 13211555930

GROMMET
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 20+

0

12

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

Note: Includes ITEMS 13- 14

$6.49

$

In Stock, only 3 left!

0

13

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

14

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0
