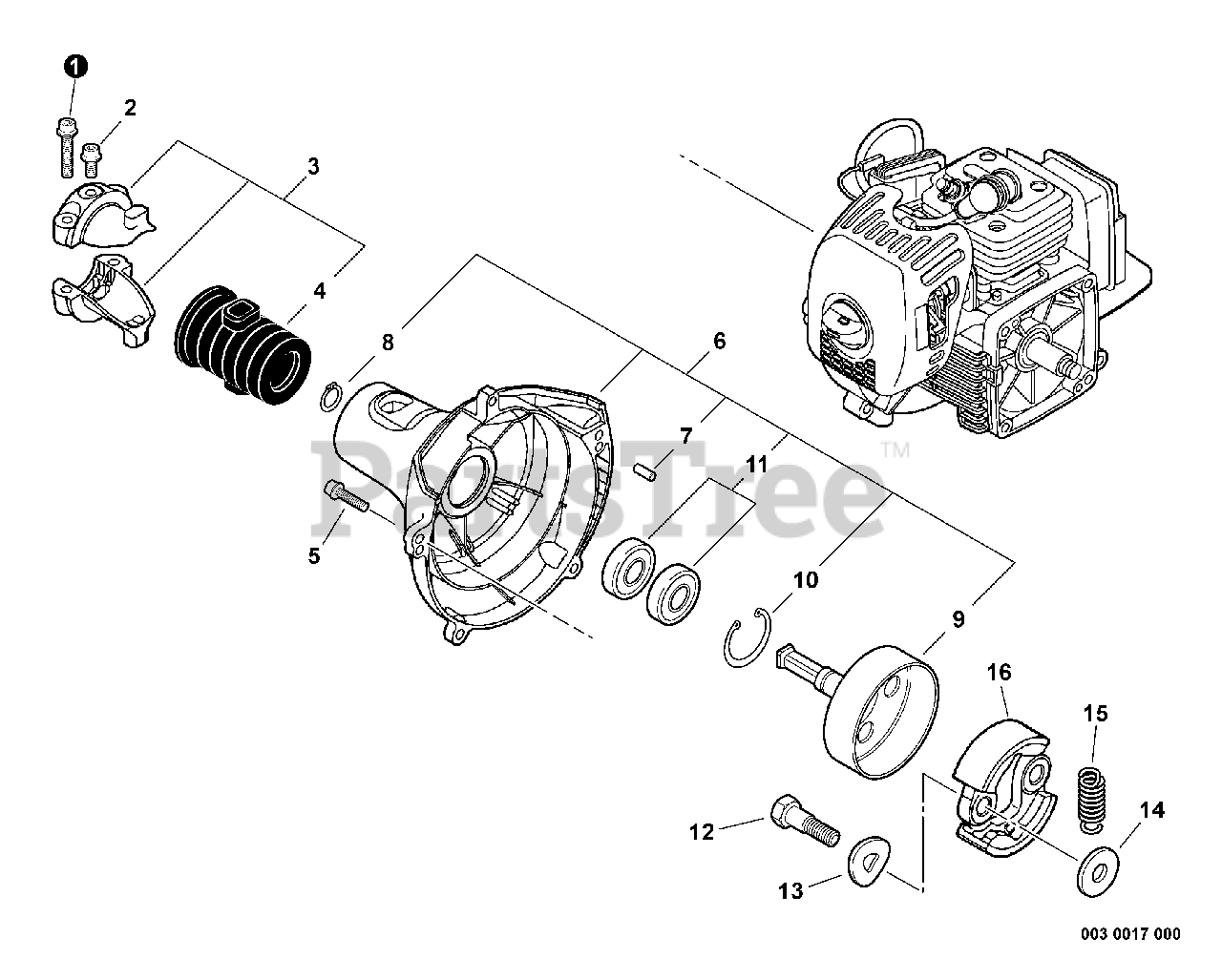

PPF-300 ES - Echo Pole Saw (SN: E06537001001 - E06537999999) Clutch, Fan Case Parts Diagram

Pole Saw

Clutch, Fan Case Parts Diagram

  • Title

1

Echo 90010605025

SCREW - 5X25

$0.99

$

In Stock, only 4 left!

0

2

Echo 90010605010

SCREW - 5X10

$0.99

$

In Stock, Qty 7

0

3

Echo P021013900

MAIN PIPE CLAMP KIT

Note: Includes ITEM 4

$19.99

$

Usually ships in 2-4 days

0

4

Echo V420001400

CUSHION

$7.99

$

Usually ships in 2-4 days

0

5

Echo 90010605020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

6

Echo P021013810

FAN CASE ASSY

Note: Includes ITEMS 7-11

$94.99

$

Usually ships in 2-4 days

0

7

Echo 10021503930

PIN - LOCATING
(Superseded to 90033040080)

$0.99

$

In Stock, Qty 20+

0

8

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

9

Echo A556000420

DRUM, CLUTCH

$17.99

$

In Stock, only 1 left!

0

10

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 15

0

11

Echo 9405106001

BEARING, BALL - 6001
(Superseded to 9406106001)

$6.49

$

In Stock, Qty 13

0

12

Echo 17504656030

BOLT, CLUTCH

$4.99

$

In Stock, Qty 9

0

13

Echo 17504956030

WASHER - SPRING

$1.49

$

In Stock, Qty 20+

0

14

Echo 17504805530

WASHER - 6

$1.49

$

In Stock, Qty 19

0

15

Echo A566000020

SPRING, CLUTCH

$1.99

$

In Stock, Qty 20+

0

16

Echo A553000050

SHOE, CLUTCH

$15.99

$

In Stock, Qty 9

0
