PPF-280 - Echo Pole Saw (SN: E20714001001 - E20714999999) Fuel System Parts Diagram

Pole Saw

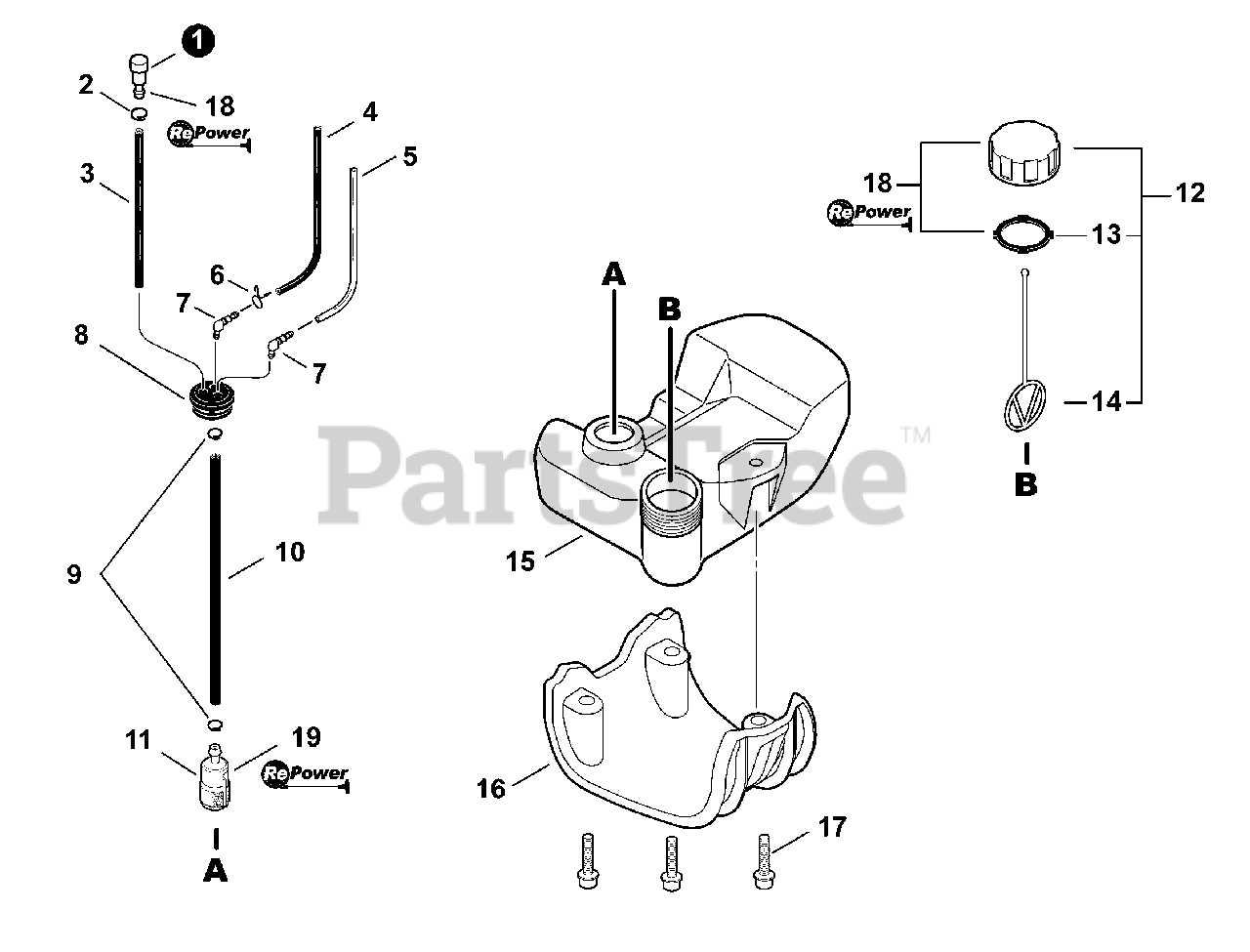

Fuel System Parts Diagram

  • Title

1

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

2

Echo V490001230

CLIP 6.5MM

$0.99

$

In Stock, Qty 20+

0

3

Echo V471000110

PIPE, FUEL 3×6×115 BLACK
(Superseded to V471000111)

$2.49

$

In Stock, Qty 20+

0

4

Echo V471003600

PIPE, FUEL 3×5×87
(Superseded to V471005660)

$3.99

$

In Stock, Qty 9

0

5

Echo 13201256030

PIPE, FUEL 3×6×80 CLEAR

$3.49

$

In Stock, Qty 20+

0

6

Echo V490000510

CLIP, SPRING

$0.99

$

In Stock, only 1 left!

0

7

Echo V186000500

CONNECTOR, PIPE 5.4

$0.99

$

In Stock, Qty 11

0

8

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 16

0

9

Echo V490001240

CLIP 6

$0.99

$

Usually ships in 2-4 days

0

10

Echo V471003650

PIPE, FUEL - 3×5×125 - BLACK
(Superseded to V471003651)

$1.49

$

In Stock, only 2 left!

0

11

Echo A369000440

FILTER, FUEL

$6.99

$

In Stock, Qty 20+

0

12

Echo P021040030

CAP ASSY, FUEL

Note: Includes Items 13-14

$5.99

$

In Stock, Qty 20+

0

13

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

14

Echo 13105156030

CONNECTOR, CAP L= 100mm

$1.49

$

In Stock, Qty 20+

0

15

Echo A350000900

TANK, FUEL

$29.99

$

In Stock, only 1 left!

0

16

Echo A175000040

GUARD, FUEL TANK

$7.99

$

In Stock, only 1 left!

0

17

Echo 90010605020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

18

Echo 90248

CAP/VENT KIT - REPOWER
(Superseded to Discontinued)

$

$

Not available

19

Echo 90125

TUNE-UP KIT - REPOWER
(Superseded to 90125Y)

$21.99

$

In Stock, only 1 left!

0
