PPF-235 ES - Echo Pole Saw (SN: S64437001001 - S64437999999) Intake Parts Diagram

Pole Saw

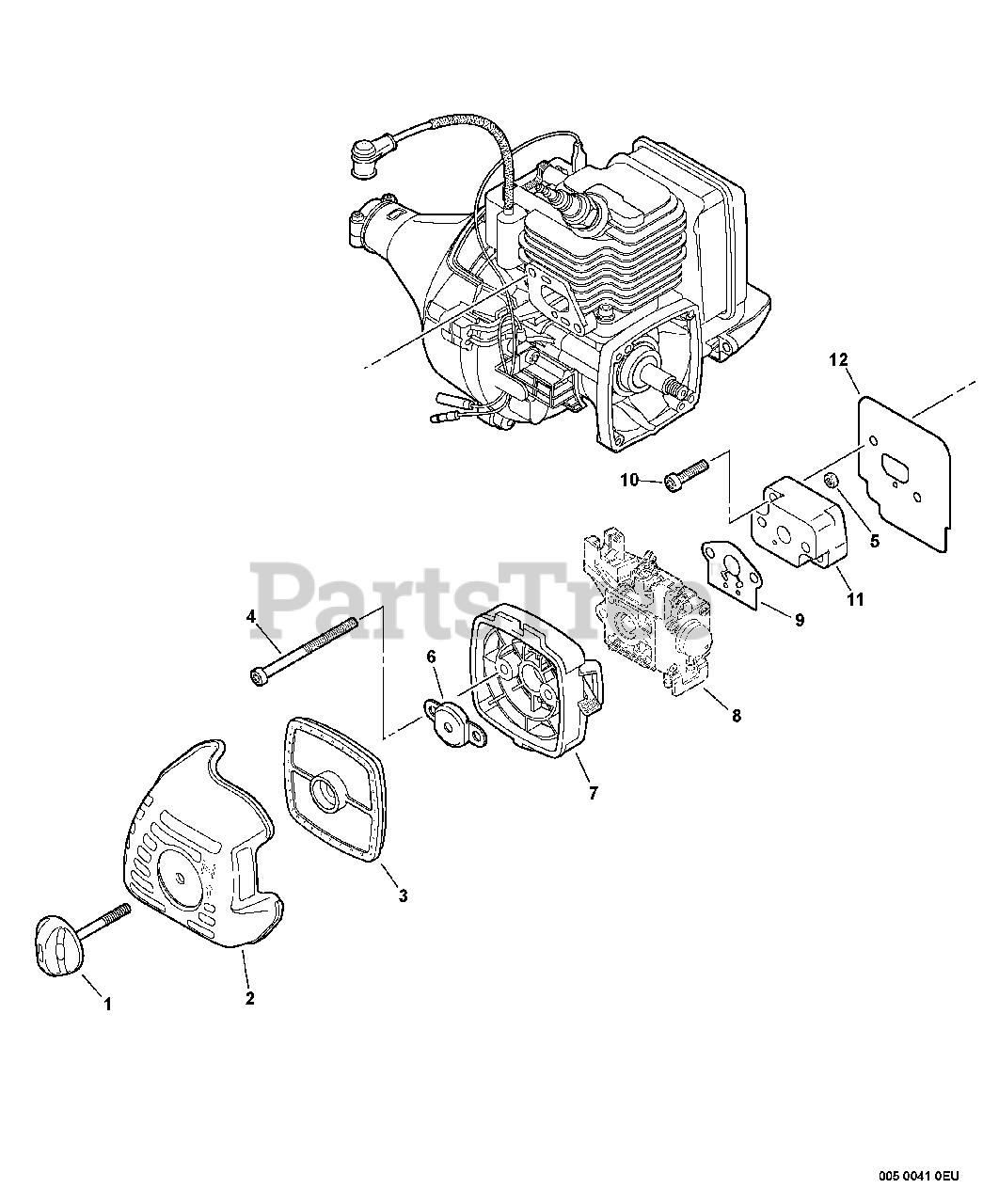

Intake Parts Diagram

  • Title
1

Echo V299000250

THUMBSCREW

$3.99

$

In Stock, Qty 20+

0

2

Echo A232000480

COVER, AIR FILTER
(Superseded to A232001850)

$5.49

$

In Stock, Qty 20+

0

3

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$7.49

$

In Stock, Qty 20+

0

4

Echo V805000100

SCREW - 5X65

$1.99

$

In Stock, Qty 5

0

5

$0.99

$

In Stock, Qty 20+

0

6

Echo 12901152730

PLATE, PREVENT

$3.99

$

In Stock, Qty 20+

0

7

Echo P021012870

CASE, AIR FILTER

$11.99

$

In Stock, Qty 20+

0

8

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

9

Echo V103000480

GASKET, INTAKE
(Superseded to V103001500)

$0.99

$

In Stock, Qty 20+

0

10

Echo V805000160

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

11

Echo 13001744331

INSULATOR, INTAKE

$9.99

$

In Stock, only 2 left!

0

12

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, only 1 left!

0
