PPF-225 - Echo Pole Saw (SN: U68513001001 - U68513999999) Cutting Head Assy Parts Diagram

Pole Saw

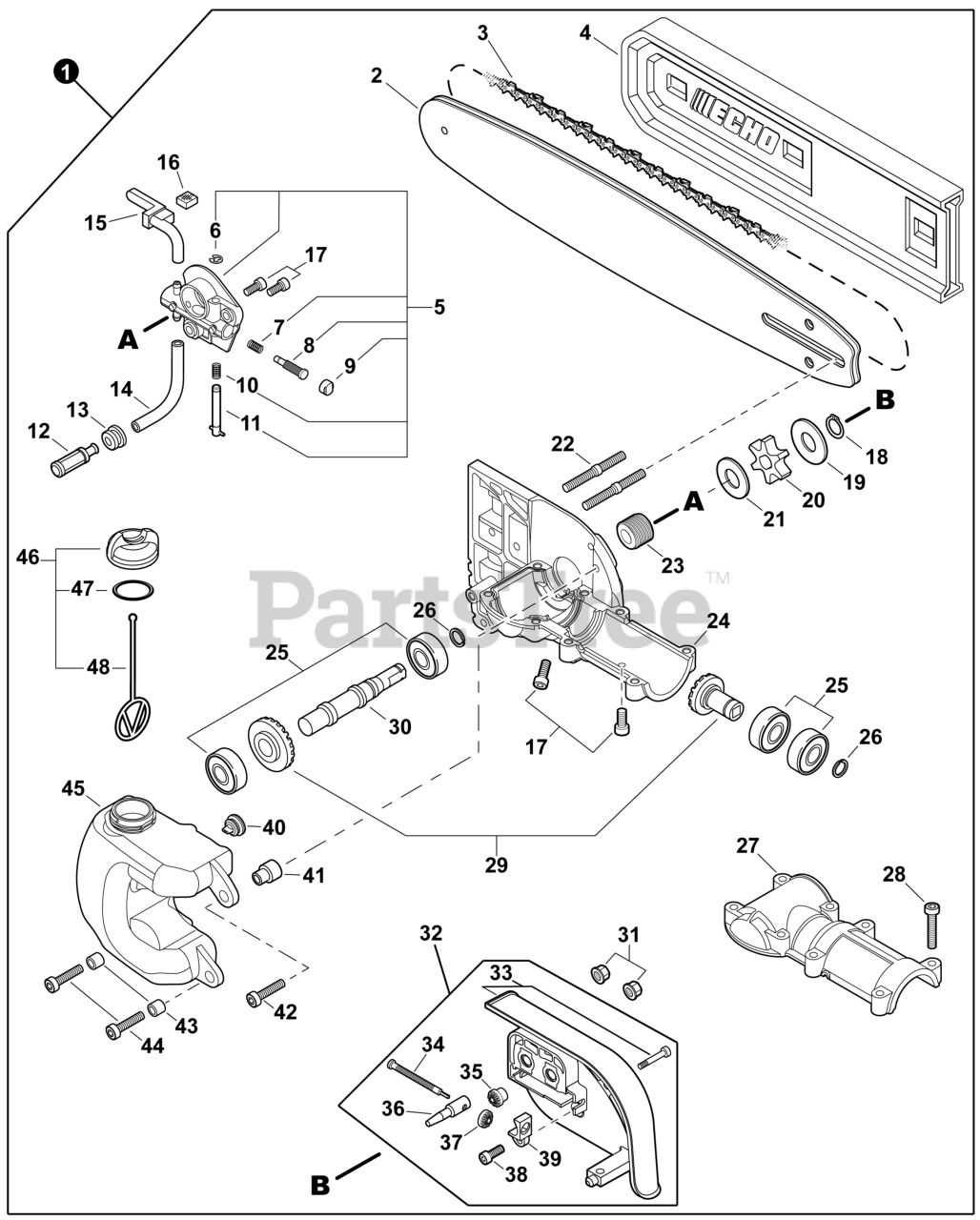

Cutting Head Assy Parts Diagram

  • Title

1

Echo 9001080

CUTTING HEAD ASSY W/ B & C

Note: Includes Items 2-48

$240.99

$

Usually ships in 2-4 days

0

2

Echo 10A0CD3739C

GUIDE BAR, 10" 0.050" GA

$33.99

$

In Stock, only 1 left!

0

3

Echo 91VXL39CQ

SAW CHAIN 10" 0.050" GA

$18.99

$

Usually ships in 2-4 days

0

4

Echo X490001030

SCABBARD 10"

$4.49

$

In Stock, only 1 left!

0

5

Echo C022000010

AUTO-OILER ASSY

Note: Includes Items 6-11

$49.99

$

In Stock, Qty 7

0

6

Echo 12532715130

E-RING

$0.99

$

In Stock, Qty 9

0

7

Echo P022010660

SPRING

$1.99

$

In Stock, only 2 left!

0

8

Echo P022010650

PLUNGER ASSY

$11.99

$

In Stock, only 1 left!

0

9

Echo P022010640

CAP, PLUNGER

$0.99

$

In Stock, Qty 9

0

10

Echo P022010670

SPRING

$1.99

$

In Stock, only 4 left!

0

11

Echo P022010680

ADJUSTER, OILER

$7.49

$

Usually ships in 2-4 days

0

12

Echo 43620502832

FILTER, OIL

$8.99

$

Usually ships in 2-4 days

0

13

Echo 13211501462

GROMMET

$1.49

$

In Stock, Qty 9

0

14

Echo 13011012331

PIPE 3x6x70

$0.99

$

In Stock, Qty 8

0

15

Echo V470000181

PIPE, OIL OUTLET

$1.99

$

In Stock, only 4 left!

0

16

Echo 43724439130

PAD, FOAM

$0.99

$

In Stock, Qty 20+

0

17

Echo V805000130

BOLT, TORX 5x10

$0.99

$

In Stock, Qty 20+

0

18

Echo V583000090

RING, SNAP

$0.99

$

In Stock, Qty 20+

0

19

Echo V307000160

WASHER 10

$0.99

$

In Stock, Qty 20+

0

20

Echo C580000070

SPROCKET, DRIVE

$4.99

$

In Stock, Qty 14

0

21

Echo 17501439131

WASHER 10.2x24.5x1.2

$2.49

$

In Stock, only 1 left!

0

22

Echo V224000040

BOLT, STUD 6

$1.49

$

In Stock, Qty 5

0

23

Echo 43706338330

GEAR, WORM

$14.99

$

In Stock, only 1 left!

0

24

Echo C531000460

CASE, GEAR

$58.99

$

In Stock, only 1 left!

0

25

Echo 9404206001

BEARING, BALL

$9.99

$

In Stock, only 4 left!

0

26

Echo 90070600012

RING, SNAP 12

$1.49

$

In Stock, Qty 10

0

27

Echo C531000010

COVER, GEAR CASE

$87.99

$

In Stock, only 1 left!

0

28

Echo V805000170

BOLT, TORX 5x25

$0.99

$

In Stock, Qty 20+

0

29

Echo P021009732

GEAR SET

$74.99

$

In Stock, only 1 left!

0

30

Echo C534000430

SHAFT, GEAR

$15.99

$

Usually ships in 2-4 days

0

31

Echo 43301903933

NUT, FLANGE M6

$1.49

$

In Stock, Qty 20+

0

32

Echo P021054080

SPROCKET GUARD ASSY

Note: Includes Items 33-39

$17.99

$

In Stock, Qty 8

0

33

Echo C300000921

GUARD, SPROCKET

$7.49

$

In Stock, Qty 5

0

34

Echo V203000041

BOLT 5

$5.99

$

In Stock, Qty 10

0

35

Echo V651000320

GEAR - 14 TOOTH

$1.99

$

In Stock, Qty 11

0

36

Echo C309000030

TENSIONER, CHAIN

$4.49

$

In Stock, Qty 20+

0

37

Echo V651000310

GEAR - 14 TOOTH

$1.49

$

Usually ships in 2-4 days

0

38

Echo V252000040

SCREW 4

$1.49

$

In Stock, Qty 9

0

39

Echo V355000140

COLLAR 8

$0.99

$

In Stock, Qty 20+

0

40

Echo 13131406320

VENT ASSY

$5.49

$

In Stock, only 4 left!

0

41

Echo V354000010

COLLAR 6

$6.99

$

Usually ships in 2-4 days

0

42

Echo V805000170

BOLT, TORX 5x25

$0.99

$

In Stock, Qty 20+

0

43

Echo 13104528230

SPACER 6.2x7.8x6

$1.49

$

In Stock, Qty 20+

0

44

Echo V805000160

BOLT, TORX 5x20

$0.99

$

In Stock, Qty 20+

0

45

Echo C200000081

TANK, OIL

$10.99

$

In Stock, only 4 left!

0

46

Echo P021005592

CAP ASSY

Note: Includes Items 47-48

$4.49

$

In Stock, Qty 20+

0

47

Echo 90072000018

O-RING 18

$1.99

$

In Stock, Qty 20+

0

48

Echo A365000050

CONNECTOR, CAP L= 60 MM

$2.49

$

In Stock, Qty 20+

0
