PPF-225 - Echo Pole Saw (SN: S63212001001 - S63212999999) Fuel System S/N S63212001001 - S63212018023 Parts Diagram

Pole Saw

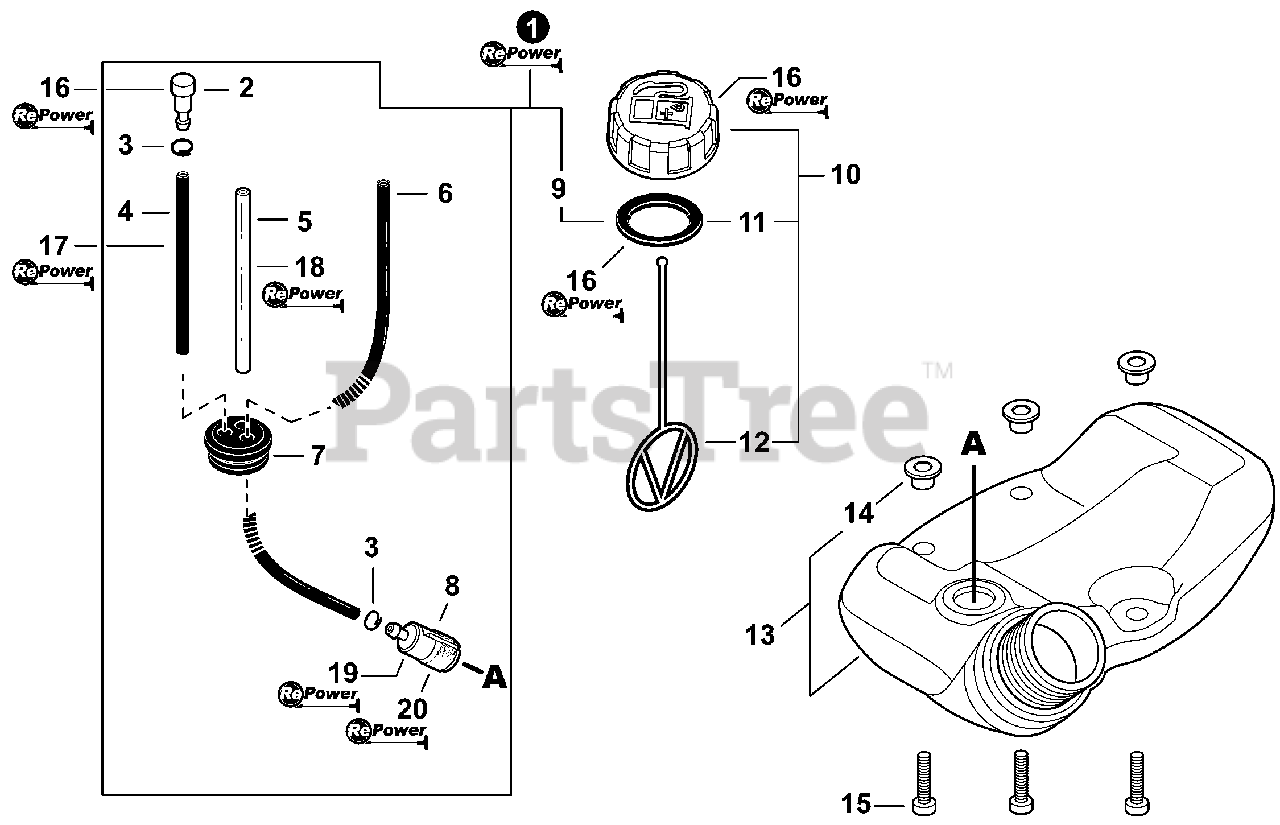

Fuel System S/N S63212001001 - S63212018023 Parts Diagram

  • Title

1

Echo 90117

FUEL SYSTEM KIT - REPOWER
(Superseded to 90127)

Note: Includes items 2-9

$30.99

$

Usually ships in 2-4 days

0

2

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

3

Echo 13201309820

CLIP 6MM

$0.99

$

In Stock, Qty 20+

0

4

Echo V471001210

PIPE, FUEL 3×5×90 BLACK
(Superseded to V471001211)

$0.99

$

In Stock, Qty 20+

0

5

Echo 13201256030

PIPE, FUEL 3×6×80 CLEAR

$3.49

$

In Stock, Qty 20+

0

6

Echo V470000840

PIPE, FUEL
(Superseded to V470000841)

$4.99

$

Usually ships in 2-4 days

0

7

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 19

0

8

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

9

Echo 13101655830

GASKET, FUEL CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

10

Echo P021040430

CAP ASSY, FUEL

Note: Includes items 11-12

$5.99

$

In Stock, Qty 20+

0

11

Echo 13101655830

GASKET, FUEL CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

12

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 10

0

13

Echo A350000780

TANK ASSY, FUEL

Note: Includes item 14

$21.99

$

In Stock, only 3 left!

0

14

Echo V353000231

COLLAR 5

$3.99

$

Usually ships in 2-4 days

0

15

Echo V805000160

BOLT, TORX 5×20

$0.99

$

In Stock, Qty 20+

0

16

Echo 90248

CAP/VENT KIT - REPOWER
(Superseded to Discontinued)

$

$

Not available

17

Echo 90014

PIPE, BULK - REPOWER 3×5mm BLACK

$42.99

$

In Stock, Qty 13

0

18

Echo 90017

PIPE, BULK - REPOWER 3×6mm CLEAR

$58.99

$

In Stock, Qty 7

0

19

Echo 90152

TUNE-UP KIT - REPOWER
(Superseded to 90152Y)

$20.99

$

In Stock, Qty 7

0

20

Echo 90008

FILTER KIT - REPOWER
(Superseded to 90152)

$20.99

$

In Stock, Qty 7

0
