PPF-210 - Echo Pole Saw (SN: 10001001 - 10999999) Gear Case, Auto-Oiler S/N: 10001121 - 10999999 Parts Diagram

Pole Saw

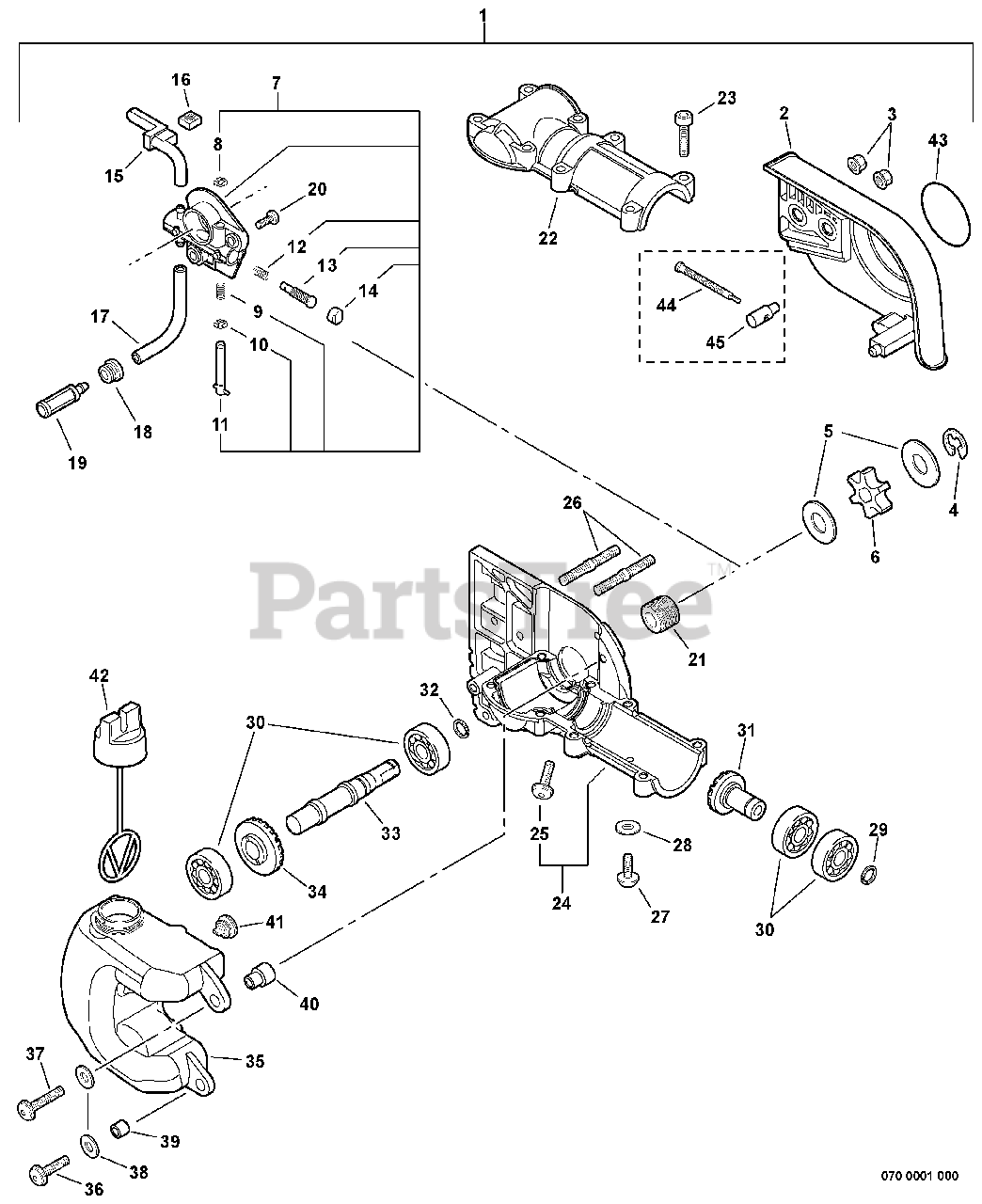

Gear Case, Auto-Oiler S/N: 10001121 - 10999999 Parts Diagram

  • Title

1

Echo 90094

AUTO OILER/GEAR CASE ASSY

Note: INCLUDES ITEMS 2-43

$158.99

$

Usually ships in 2-4 days

0

2

Echo C300000001

GUARD, SPROCKET

$16.99

$

Usually ships in 2-4 days

0

3

Echo 43301903933

NUT - 6 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

4

Echo V583000010

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

5

Echo 17501439131

WASHER

$2.49

$

In Stock, Qty 6

0

6

Echo C580000070

SPROCKET, DRIVE

$4.99

$

In Stock, Qty 15

0

7

Echo 43700239130

AUTO-OILER ASSY

Note: INCLUDES ITEMS 8-14

$70.99

$

Usually ships in 2-4 days

0

8

Echo 12312715030

RING, RETAINING

$0.99

$

In Stock, only 3 left!

0

9

Echo 43701537330

SPRING

$3.99

$

Usually ships in 2-4 days

0

10

Echo 43702937330

WASHER

$2.99

$

Usually ships in 2-4 days

0

11

Echo 43701639130

NEEDLE, ADJUST

$17.99

$

Usually ships in 2-4 days

0

12

Echo 43701938330

SPRING, PLUNGER

$3.99

$

Usually ships in 2-4 days

0

13

Echo 43702437330

PLUNGER ASSY

$23.99

$

In Stock, only 1 left!

0

14

Echo 43706237330

CAP, OIL PUMP

$3.99

$

In Stock, only 3 left!

0

15

Echo V470000180

PIPE, OIL OUTLET
(Superseded to V470000181)

$1.99

$

In Stock, only 4 left!

0

16

Echo 43724439130

PAD, FOAM

$0.99

$

In Stock, Qty 20+

0

17

Echo 13011014330

PIPE - 3X6X75 -- BLACK

Note: RePower BULK OPTION: 90014

$2.99

$

In Stock, Qty 7

0

18

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 17

0

19

Echo 43620502832

FILTER, OIL

$8.99

$

In Stock, only 1 left!

0

20

Echo 90010905010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

21

Echo V652000021

GEAR - WORM

$14.99

$

In Stock, only 1 left!

0

22

Echo C531000010

CASE, GEAR - UPPER

$87.99

$

In Stock, only 1 left!

0

23

Echo 90010905025

SCREW - 5X25

$0.99

$

In Stock, only 4 left!

0

24

Echo C051000110

CASE, GEAR - LOWER

Note: Includes ITEM 25

$75.99

$

Usually ships in 2-4 days

0

25

Echo 90010905010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

26

Echo V224000000

STUD - 6

$2.49

$

In Stock, only 2 left!

0

27

Echo 90010905010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

28

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

29

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 14

0

30

Echo 9404206001

BEARING, BALL - 6001

$9.99

$

In Stock, only 4 left!

0

31

Echo V651000230

GEAR - BEVEL

$31.99

$

Usually ships in 2-4 days

0

32

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 14

0

33

Echo C534000400

GEAR - SHAFT

$19.99

$

Usually ships in 2-4 days

0

34

Echo V651000201

GEAR - BEVEL
(Superseded to P021009732)

$74.99

$

In Stock, only 1 left!

0

35

Echo C200000000

TANK, OIL

$9.99

$

Usually ships in 2-4 days

0

36

Echo 9110905016

SCREW - 5X16

$0.99

$

Usually ships in 2-4 days

0

37

Echo 90010905025

SCREW - 5X25

$0.99

$

In Stock, only 4 left!

0

38

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

39

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 20+

0

40

Echo V354000010

SPACER

$6.99

$

Usually ships in 2-4 days

0

41

Echo 13131406320

VENT

$5.49

$

In Stock, Qty 6

0

42

Echo P021000951

CAP ASSY

$2.99

$

In Stock, Qty 16

0

43

Echo X502000310

LABEL - ECHO

$0.99

$

In Stock, Qty 20+

0

44

Echo 43301639131

SCREW, TENSIONER

Note: Not Included In 90094 OILER/GEAR CASE ASY

$4.49

$

In Stock, Qty 20+

0

45

Echo 43301403931

TENSIONER, CHAIN

Note: Not Included In 90094 OILER/GEAR CASE ASY

$4.99

$

In Stock, Qty 20+

0
