PPCRT 17 (960920037-02) - Poulan Tiller (2016-06) TRANSMISSION Parts Diagram

Tiller

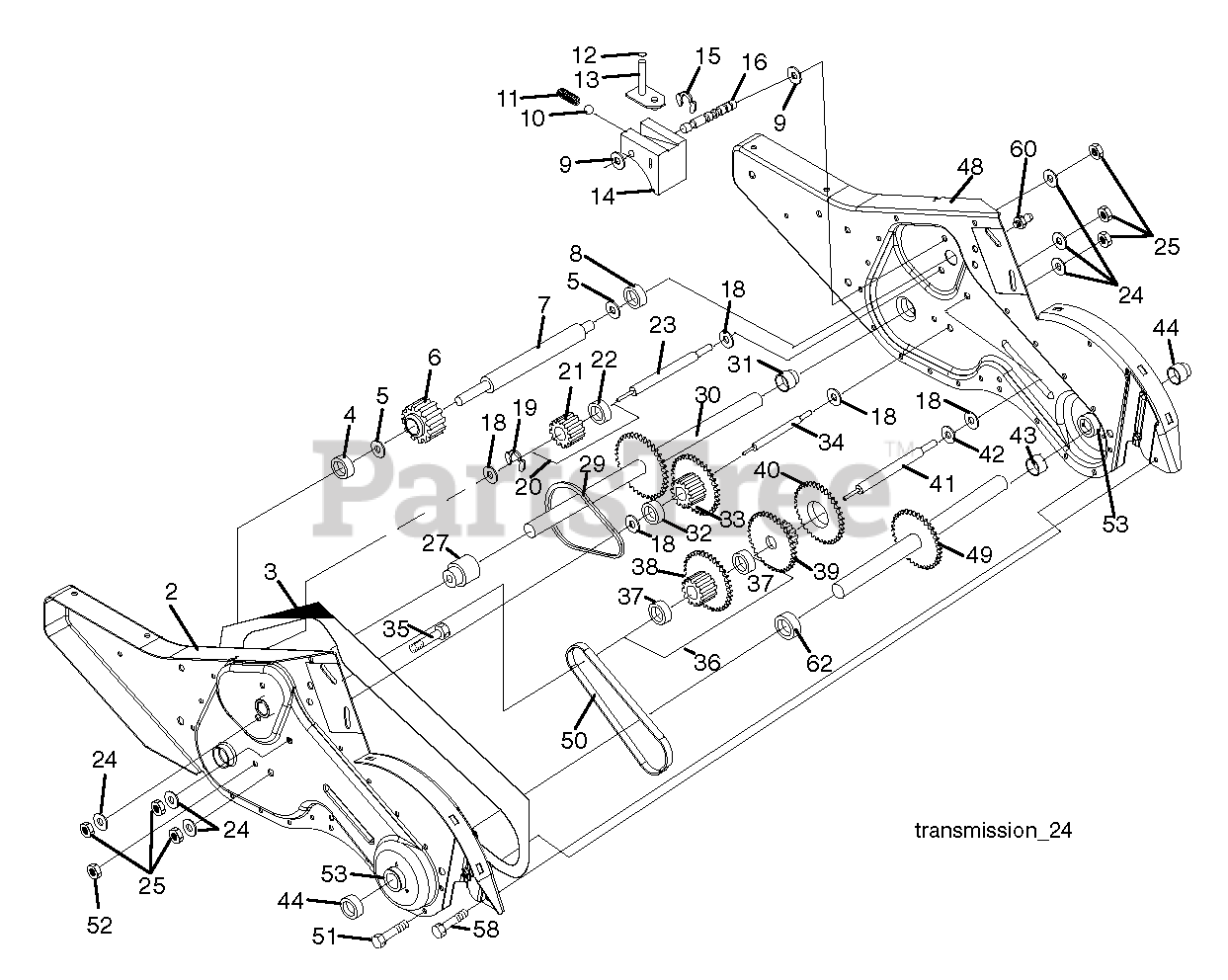

TRANSMISSION Parts Diagram

  • Title

--

Poulan 532181098

TRANSMISSON.SERV.TILLER

Note: . 2 3 4-52

$849.99

$

Usually ships in 3-10 days

0

2

Poulan 532188482

GEARCASE.ASM.CRT.LH.W
(Superseded to 532181098)

Note: LH

$849.99

$

Usually ships in 3-10 days

0

3

Poulan 501606301

GASKET.GEARCASE.CRT/DRT.

$27.99

$

Usually ships in 3-10 days

0

4

Poulan 532005020

NEEDLE BRNG LT

$17.99

$

In Stock, Qty 7

0

5

Poulan 532001370

THRUST WASHER

$6.49

$

In Stock, only 2 left!

0

6

Poulan 586196301

Pinion Input Gear, CRT Tiller

$26.99

$

In Stock, only 1 left!

0

7

Poulan 532145101

SHAFT.INPUT."D"".TILLER

$78.99

$

Usually ships in 3-10 days

0

8

Poulan 585695502

Needle Bearing, .875 X .687 Oe.50

$6.99

$

Usually ships in 3-10 days

0

9

Poulan 532154467

WASHER, SEAL

$7.49

$

In Stock, only 1 left!

0

10

Poulan 532007392

BALL, STEEL
(Superseded to 532124862)

$

$

Not available

11

Poulan 532100371

SPRING-SHIFT CRT

$7.49

$

In Stock, Qty 6

0

12

Poulan 532106160

O-RING TI

$6.49

$

Usually ships in 3-10 days

0

13

Poulan 532142145

SHIFTING ARM

$

$

Not available

14

Poulan 532008353

SHIFT FORK TI

$34.99

$

In Stock, Qty 8

0

15

Poulan 812000039

KLIP RING

$6.49

$

In Stock, Qty 8

0

16

Poulan 532154466

SHAFT.SHIFTER.TILLER

$6.99

$

In Stock, only 2 left!

0

18

Poulan 532004358

WASHER

$7.49

$

Usually ships in 3-10 days

0

19

Poulan 812000040

KLIP RING

$6.49

$

Usually ships in 3-10 days

0

20

Poulan 532102114

GEAR ASSY CRT

Note: . 21 22

$

$

Not available

21

Poulan 532102115

GEAR-REV IDLR CRT

$26.99

$

In Stock, only 1 left!

0

22

Poulan 532006803

NEEDLE BEARING TI

$10.99

$

In Stock, Qty 5

0

23

Poulan 532102111

SHAFT CRT

$22.99

$

Usually ships in 3-10 days

0

24

Poulan 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

25

Poulan 873610700

NUT.ASF.HEX.7/16

$7.49

$

In Stock, Qty 7

0

27

Poulan 532431219

BEARING.GROUND.DRIVE

Note: LH

$

$

Not available

29

Poulan 532102134

CHAIN CRT

$31.99

$

In Stock, only 4 left!

0

30

Poulan 532150737

GROUND SHAFT ASS'Y

$

$

Not available

31

Poulan 532143008

BEARING, SHAFT RH CRT

$

$

Not available

32

Poulan 532106388

SPACER TI

$6.99

$

Usually ships in 3-10 days

0

33

Poulan 532102121

SPRCKT 8 GEAR CRT

$

$

Not available

34

Poulan 532102112

SHAFT.SECONDARY.REDUCTION.CRT

$43.99

$

Usually ships in 3-10 days

0

35

Poulan 532102101

SCRW WHIZ LOK CRT

$4.99

$

Usually ships in 3-10 days

0

36

Poulan 532154355

SPROCKET.ASM.W/BEARING.TILLER

Note: . 37 38

$

$

Not available

37

Poulan 585695502

Needle Bearing, .875 X .687 Oe.50

$6.99

$

Usually ships in 3-10 days

0

38

Poulan 532154356

(Superseded to 532154355)

$

$

Not available

39

Poulan 532105345

GEAR TI
(Superseded to 532131527)

$

$

Not available

40

Poulan 532105346

GEAR TI

$45.99

$

Usually ships in 3-10 days

0

41

Poulan 532008358

SHAFT.REDUCTION.TILLER

$17.99

$

In Stock, only 1 left!

0

42

Poulan 532004220

BRNG RACE T

$5.99

$

Usually ships in 3-10 days

0

43

Poulan 532106146

SPACER TI

$34.99

$

Usually ships in 3-10 days

0

44

Poulan 532155236

SEAL ASM, OIL

$7.49

$

In Stock, only 3 left!

0

48

Poulan 532188485

GEARCASE.ASM.CRT.RH.W/BEARING
(Superseded to 532181098)

Note: . 8

$849.99

$

Usually ships in 3-10 days

0

49

Poulan 532431485

SHAFT.ASM.TINE

$

$

Not available

50

Poulan 532106147

CHAIN.TILLER

$66.99

$

In Stock, only 1 left!

0

51

Poulan 817720408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

52

Poulan 873220500

NUT

$6.49

$

Usually ships in 3-10 days

0

53

Poulan 532165140

BEARING KIT

$93.99

$

In Stock, only 1 left!

0

58

Poulan 532179520

BOLT SHOULDER 1/4-20 UNC X.875

$4.99

$

Usually ships in 3-10 days

0

60

Poulan 532183226

FITTING.GREASE.TAPERED

$7.49

$

In Stock, only 2 left!

0

62

Poulan 532431015

SPACER.1.015X1.50X.650

$6.99

$

Usually ships in 3-10 days

0

Poulan 532750369

(Superseded to 532750355)

Note: NOT SHOWN

$

$

Not available
