PPCRT 17 (960920037-02) - Poulan Tiller (2016-06) MAINFRAME RIGHT SIDE Parts Diagram

Tiller

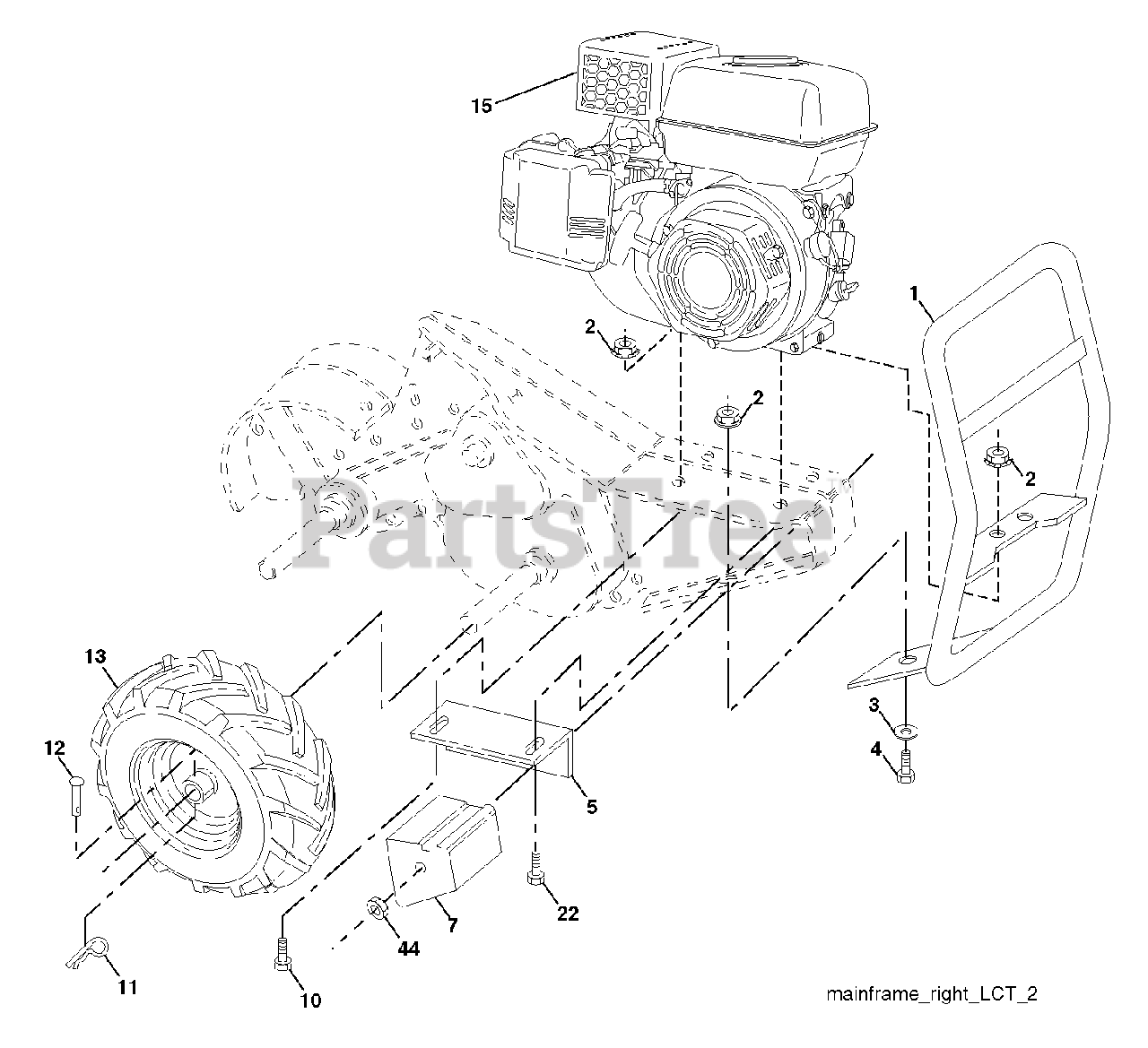

MAINFRAME RIGHT SIDE Parts Diagram

  • Title
1

Poulan 583879301

BUMPER.ASM.TILLER.BLACK

$96.99

$

Usually ships in 3-10 days

0

2

Poulan 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

3

Poulan 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

4

Poulan 874760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

5

Poulan 581864701

BRACKET.REINFORCEMENT.RH.BLACK

$

$

Not available

7

Poulan 581010401

COUNTERWEIGHT.RH

$56.99

$

Usually ships in 3-10 days

0

10

Poulan 874760524

BOLT
(Superseded to 74760524)

$2.49

$

Usually ships in 3-10 days

0

11

Poulan 532124788

(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

12

Poulan 532171271

(Superseded to 532126875)

$6.49

$

In Stock, Qty 20+

0

13

Poulan 583877401

WHEEL ASM.16 X 4 X 8.DR.RH.421
(Superseded to 581576401)

$169.99

$

Usually ships in 3-10 days

0

15

Poulan 501516601

ENGINE.LCT.208CC.FT TILLER
(Superseded to 532445964)

Note: LCT PLMHK14650124P

$911.99

$

Usually ships in 3-10 days

0

22

Poulan 874760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

44

$6.49

$

Usually ships in 3-10 days

0
