PPCRT 17 (960920037-02) - Poulan Tiller (2016-06) MAINFRAME LEFT SIDE Parts Diagram

Tiller

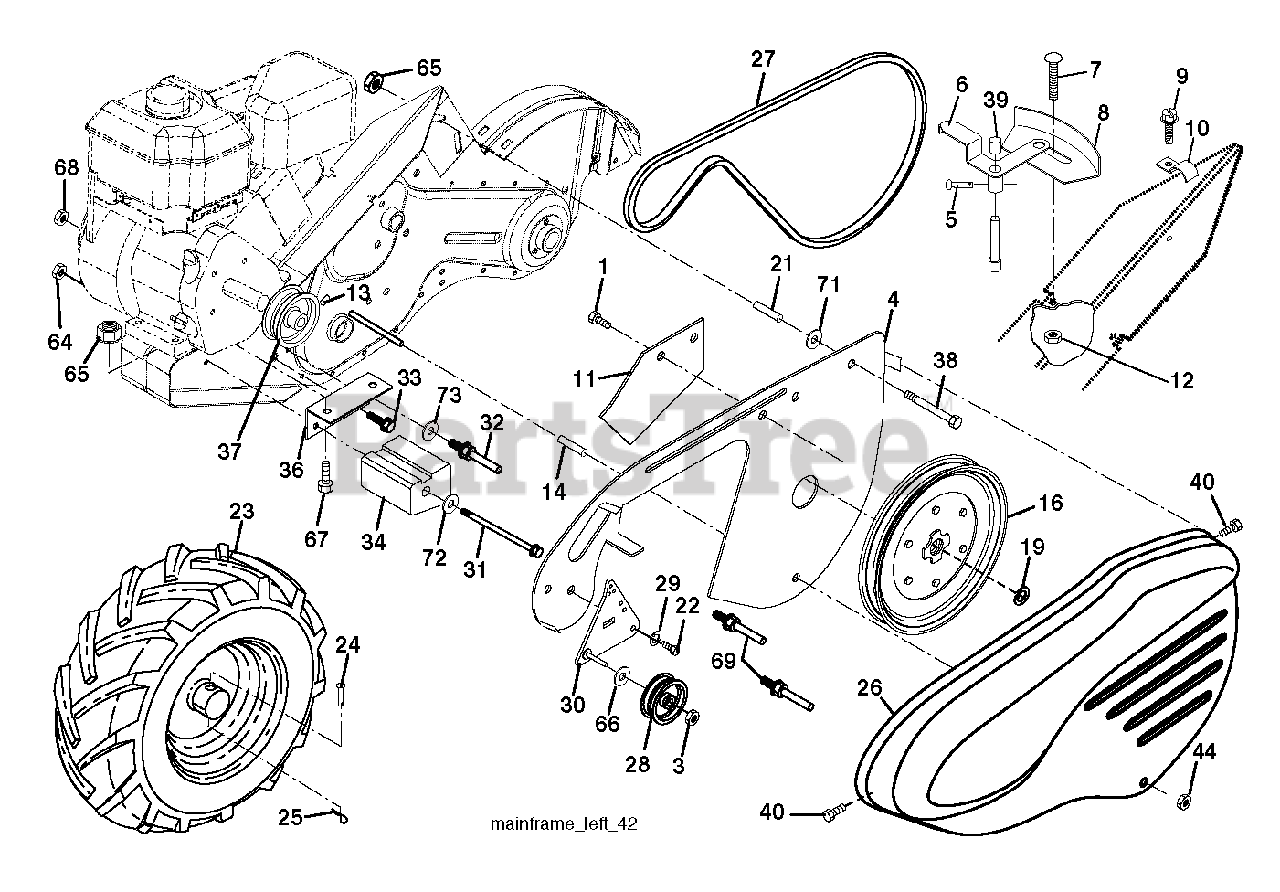

MAINFRAME LEFT SIDE Parts Diagram

  • Title

1

Poulan 532189241

SCREW.HEX.WASH.HD.TAPPING

$6.49

$

Usually ships in 3-10 days

0

3

Poulan 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

4

Poulan 583877701

(Superseded to 532432420)

Note: Inner Belt Guard RT

$79.99

$

Usually ships in 3-10 days

0

5

Poulan 532164329

PIN.SPIROL.FLARED

$7.49

$

In Stock, Qty 8

0

6

Poulan 532110111

LEVER ASM CRT

$18.99

$

Usually ships in 3-10 days

0

7

Poulan 872110404

BOLT

$9.49

$

Usually ships in 3-10 days

0

8

Poulan 581845001

PANEL.INDICATOR.SHIFT.BLACK
(Superseded to 532008700)

$4.99

$

In Stock, only 1 left!

0

9

Poulan 532086777

(Superseded to 532750097)

$4.99

$

In Stock, Qty 14

0

10

Poulan 532446045

CLIP.PLATED
(Superseded to 532009484)

$6.49

$

In Stock, only 4 left!

0

11

Poulan 587836101

GUARD.RT TILLER.CRT/DRT.CE

$

$

Not available

12

Poulan 873510400

NUT
(Superseded to 873640400)

$

$

Not available

13

Poulan 823230506

SET SCREW

$4.99

$

In Stock, only 2 left!

0

14

Poulan 532156117

SPACER-SPLIT.327 X .42

$6.49

$

Usually ships in 3-10 days

0

16

Poulan 532145102

SHEAVE, TRANSMISSION

$68.99

$

In Stock, only 3 left!

0

19

Poulan 812000028

RETAINING RING LT
(Superseded to 532002267)

$7.49

$

In Stock, Qty 8

0

21

Poulan 585831201

SPACER

$5.99

$

Usually ships in 3-10 days

0

22

Poulan 874770508

BOLT

$4.99

$

Usually ships in 3-10 days

0

23

Poulan 583877402

WHEEL.ASM.DR,LH
(Superseded to 581576402)

$169.99

$

Usually ships in 3-10 days

0

24

Poulan 532171271

(Superseded to 532126875)

$6.49

$

In Stock, Qty 20+

0

25

Poulan 532124788

(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

26

Poulan 532407286

FRAME.WELDMENT.PNT
(Superseded to 532404431)

$

$

Not available

27

Poulan 532132801

V-BELT
(Superseded to 591372401)

$17.99

$

In Stock, only 3 left!

0

28

Poulan 532104679

PULLEY-IDLER TI

$18.99

$

In Stock, only 1 left!

0

29

Poulan 812000032

KLIP RING

$7.49

$

Usually ships in 3-10 days

0

30

Poulan 584289201

BRACKET.IDLER.ASM.LONG

$

$

Not available

31

Poulan 581747201

BOLT.FIN.HEX.3/8-16UNC X 11.5

$4.99

$

In Stock, only 2 left!

0

32

Poulan 532102141

SHIFT ARM CRT

$7.99

$

Usually ships in 3-10 days

0

33

Poulan 874760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

34

Poulan 581010601

COUNTERWEIGHT.LH

$102.99

$

Usually ships in 3-10 days

0

36

Poulan 581864801

BRACKET.REINFORCEMENT.LH.PNT
(Superseded to 584366901)

Note: LH

$13.99

$

Usually ships in 3-10 days

0

37

Poulan 532130812

ENGINE PULLEY
(Superseded to 592642101)

$13.99

$

In Stock, only 2 left!

0

38

Poulan 874760544

(Superseded to 596218601)

$4.99

$

Usually ships in 3-10 days

0

39

Poulan 532140062

CAP.PLUNGER.BLACK

$6.49

$

Usually ships in 3-10 days

0

40

Poulan 532170488

SCREW.HEX.WSH.SLT.#10-24X.50

$6.49

$

In Stock, only 2 left!

0

44

Poulan 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

64

Poulan 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

65

Poulan 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

66

Poulan 819131316

WASHER

$4.99

$

In Stock, Qty 5

0

67

Poulan 874760524

BOLT
(Superseded to 74760524)

$2.49

$

Usually ships in 3-10 days

0

68

Poulan 873510600

NUT **

$6.49

$

Usually ships in 3-10 days

0

69

Poulan 532164173

KEEPER.BELT.ENGINE

$8.99

$

Usually ships in 3-10 days

0

71

Poulan 585830801

SPACER SPLIT .420 X .327

$13.99

$

Usually ships in 3-10 days

0

72

Poulan 819132012

WASHER

$1.99

$

Usually ships in 3-10 days

0

73

Poulan 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0
