PPCRT 17 (960920037-02) - Poulan Tiller (2016-06) ENGINE Parts Diagram

Tiller

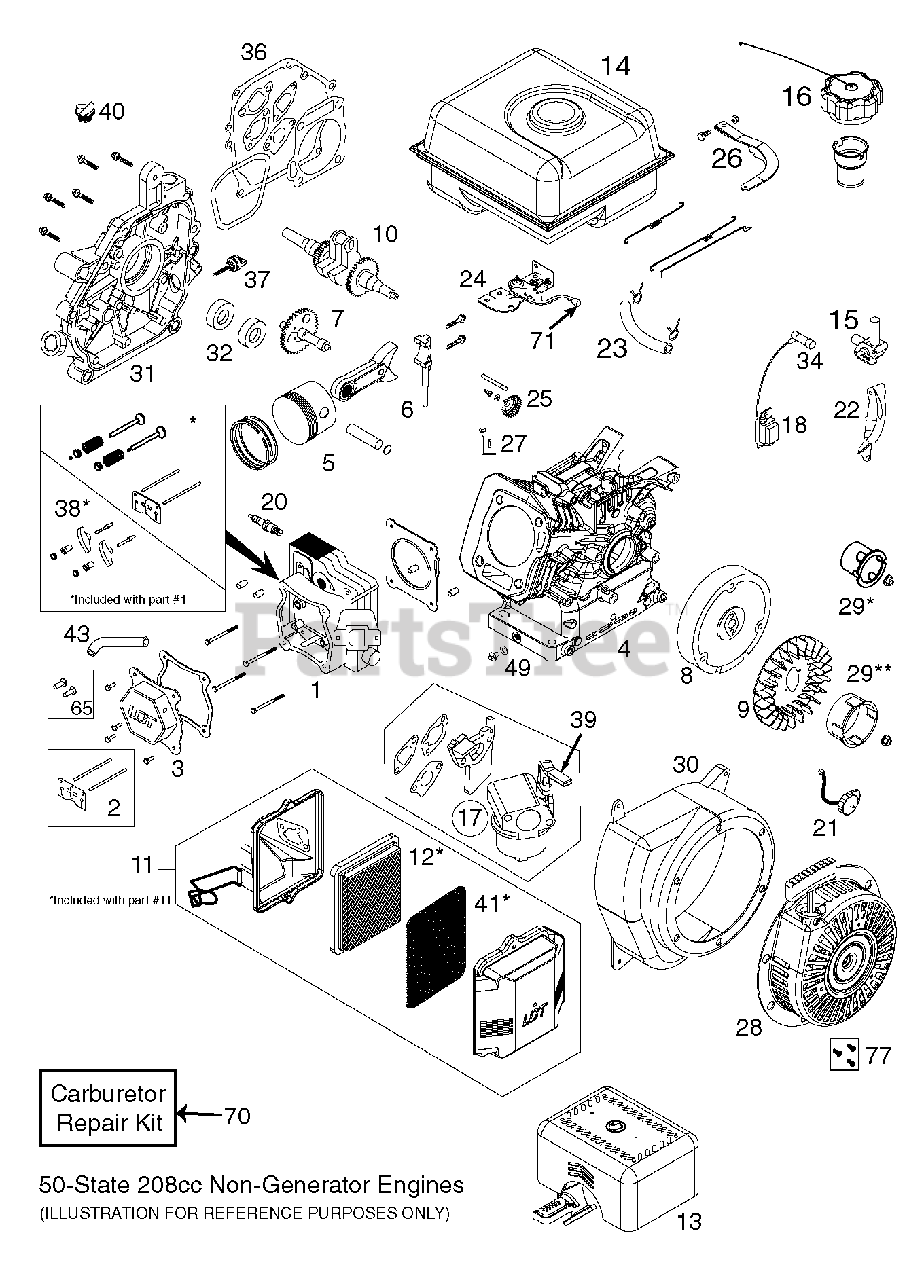

ENGINE Parts Diagram

  • Title

1

Poulan 532420578

CYLINDR.HEAD.SRV.KIT
(Superseded to 582045701)

$182.99

$

Usually ships in 3-10 days

0

2

Poulan 532420579

KIT.PUSH.ROD.SRV(SK208-1001)

$39.99

$

In Stock, only 1 left!

0

3

Poulan 532420580

VALVE COVER ASSEMBLY
(Superseded to 587176901)

$51.99

$

Usually ships in 3-10 days

0

4

Poulan 580352401

CYLINDER.GEN2.NO.LOW.OIL.SENSO
(Superseded to 532445964)

$911.99

$

Usually ships in 3-10 days

0

5

Poulan 532420582

KIT.PISTON.SRV(SK208-1400)

$169.99

$

Usually ships in 3-10 days

0

6

Poulan 532420583

KIT.CONNECT.ROD.SRV(SK208-1500

$45.99

$

Usually ships in 3-10 days

0

7

Poulan 532420584

KIT.CAMSHAFT.SRV(SK208-1600)
(Superseded to 582051401)

$102.99

$

Usually ships in 3-10 days

0

8

Poulan 532429236

FLYWHL.ASSY.MANUL.SK2081700

$66.99

$

Usually ships in 3-10 days

0

9

Poulan 532420586

KIT.COOLNG.FAN.SERV(SK208-4000

$11.99

$

In Stock, only 1 left!

0

10

Poulan 580352501

CRANKSHAFT.KEYED.#14.LCT.208CC

$

$

Not available

11

Poulan 532420588

KIT.AIRFLTR.ASY.SRV(SK208-2002

$51.99

$

In Stock, only 1 left!

0

12

Poulan 532432715

FILTER.ASSEM.PANEL.LCT.208CC

$40.99

$

Usually ships in 3-10 days

0

13

Poulan 532432716

50 STATE MUFFLER SERV KIT

$250.99

$

Usually ships in 3-10 days

0

14

Poulan 580352701

FUEL.TANK.2.7L.50STATE.LCT.208

$125.99

$

Usually ships in 3-10 days

0

15

Poulan 532429597

FUEL.PETCOCK.1/4".LCT

$40.99

$

Usually ships in 3-10 days

0

16

Poulan 580352801

CAP.FUEL.50STATE.W/CHAIN.LCT.

$97.99

$

Usually ships in 3-10 days

0

17

Poulan 532420594

KIT.CARBURETOR.SERV(SK20-2401)
(Superseded to 585020301)

$96.99

$

In Stock, only 1 left!

0

18

Poulan 580352901

IGNITION.COIL.CDI.STOP.N.CONTR

$62.99

$

Usually ships in 3-10 days

0

20

Poulan 532424939

SPARK.PLUG(2083810)

$31.99

$

In Stock, only 3 left!

0

21

Poulan 532420598

KIT.ENGINE.ON/OFF.LCT.208CC

$7.49

$

Usually ships in 3-10 days

0

22

Poulan 580353101

SHIELD.FLYWHEEL.GEN2.LCT.208CC

$

$

Not available

23

Poulan 532432144

FUEL HOSE KIT
(Superseded to 532438014)

$12.99

$

Usually ships in 3-10 days

0

24

Poulan 580353201

CONTROL.THROTTLE.S-N-C.LCT.

$66.99

$

Usually ships in 3-10 days

0

25

Poulan 532429646

GOVENOR.GEARS ASM(SK2082900)

$39.99

$

Usually ships in 3-10 days

0

26

Poulan 532420601

KIT.GOVERNOR.ARM(SUMMER ENG)
(Superseded to 532420602)

$7.49

$

In Stock, only 3 left!

0

27

Poulan 532420602

KIT.GOVERNOR.CRANK(SK208-3100)

$7.49

$

In Stock, only 3 left!

0

28

Poulan 532436673

RECOIL.STARTER.ROUND.BLACK

$68.99

$

Usually ships in 3-10 days

0

29

Poulan 532436674

START.CUP.NON-SLOTTED

$

$

Not available

30

Poulan 580353301

HOUSING.BLOWER.BLACK.LCT.208CC

$

$

Not available

31

Poulan 532443773

COVER.CRANKCASE.LCT.HIGH.OIL.F

$

$

Not available

32

Poulan 532429599

SEAL KIT (2 PCS)

$17.99

$

Usually ships in 3-10 days

0

34

Poulan 532429246

SPARK.PLUG.BOOT(SK2083800)

$15.99

$

Usually ships in 3-10 days

0

36

Poulan 532429601

GASKET.KIT.208CC(SK2084300.1)

$66.99

$

Usually ships in 3-10 days

0

37

Poulan 532420961

DIPSTICK SMALL

$12.99

$

Usually ships in 3-10 days

0

38

Poulan 532429691

ROCKER ARM KIT

$68.99

$

Usually ships in 3-10 days

0

39

Poulan 532443774

CHOKE LEVER.CARB.LCT.208CC

$20.99

$

Usually ships in 3-10 days

0

40

Poulan 532429598

NON REMOVABLE PLUG

$13.99

$

Usually ships in 3-10 days

0

41

Poulan 532443775

FOAM.PRE.FILTER.LCT.208CC

$24.99

$

Usually ships in 3-10 days

0

43

Poulan 580353401

TUBE.BREATHER.LCT.208

$6.49

$

Usually ships in 3-10 days

0

49

Poulan 532435495

KIT.OIL.DRAIN.PLUG(SK2089911

$9.99

$

In Stock, only 3 left!

0

65

Poulan 581372801

TAPPET.KIT.LCT.208CC

$22.99

$

Usually ships in 3-10 days

0

70

Poulan 580353601

CARB.REPAIR.KIT.LCT.SK9900.1

$120.99

$

Usually ships in 3-10 days

0

71

Poulan 580353501

KNOB.SPEED.CONTROL.RED.LCT.

$9.49

$

Usually ships in 3-10 days

0

77

Poulan 532432688

BOLT.KIT.RECOIL.LCT.ALL.ENGINE

$4.99

$

In Stock, only 2 left!

0

Poulan 585297201

KEYS.FLYWHEEL.208/414CC.5PACK

Note: NOT SHOWN

$26.99

$

In Stock, only 1 left!

0

Poulan 585020503

SPACER.CARBURETOR.208CC.LCT

Note: NOT SHOWN

$8.99

$

In Stock, only 2 left!

0

Poulan 586325601

Fuel Tank Strainer, LCT 208cc

Note: NOT SHOWN

$8.99

$

In Stock, only 1 left!

0

Poulan 586327301

KIT.BOLT.CYLINDER.HEAD.(4PC)

Note: NOT SHOWN

$14.99

$

Usually ships in 3-10 days

0

Poulan 586326901

KIT.BOLT.CRANKCASE.COVER.6PC

Note: NOT SHOWN

$10.99

$

In Stock, only 4 left!

0

Poulan 586326801

STUD.MUFFLER.KIT.LCT

Note: NOT SHOWN

$10.99

$

In Stock, only 4 left!

0

Poulan 587525701

Crankcase Cover Gasket

Note: NOT SHOWN

$24.99

$

Usually ships in 3-10 days

0
