PPC 31 - Poulan Pro String Trimmer CLUTCH ASSEMBLY # 213142S Parts Diagram

String Trimmer

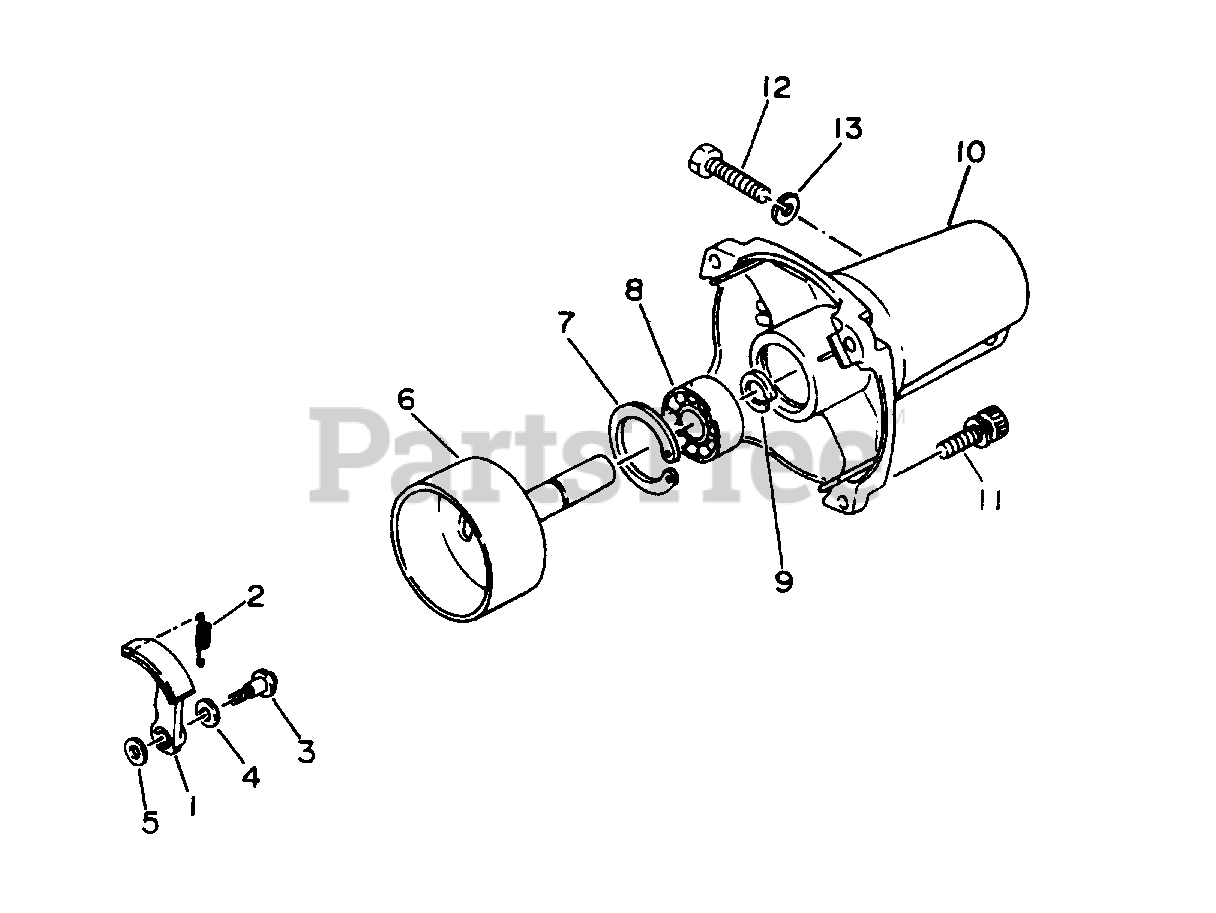

CLUTCH ASSEMBLY # 213142S Parts Diagram

  • Title

1

Poulan 213143S

Shoe

$71.99

$

Usually ships in 3-10 days

0

2

Poulan 213144S

Spring

$16.99

$

Usually ships in 3-10 days

0

3

Poulan 215172S

Bolt

$12.99

$

Usually ships in 3-10 days

0

4

Poulan 206290S

Washer

$2.49

$

Usually ships in 3-10 days

0

5

Poulan 206489S

Washer

$2.49

$

Usually ships in 3-10 days

0

6

Poulan 216228S

Drum

$69.99

$

Usually ships in 3-10 days

0

7

Poulan 211237S

Ring, Inner Retainer

$2.49

$

Usually ships in 3-10 days

0

8

Poulan 211233S

Ball Bearing

$12.99

$

Usually ships in 3-10 days

0

9

Poulan 211238S

Ring, Outer Retaining

$1.99

$

Usually ships in 3-10 days

0

10

Poulan 216830S

Housing

$112.99

$

Usually ships in 3-10 days

0

11

Poulan 213131S

Bolt, Socket Head

$5.99

$

Usually ships in 3-10 days

0

12

Poulan 211234S

Bolt

$2.49

$

Usually ships in 3-10 days

0

13

Poulan 206294S

Washer, Spring

$1.99

$

Usually ships in 3-10 days

0
