PPC 25 E - Poulan Pro String Trimmer DRIVE SHAFT & BLADE ASSEMBLY Parts Diagram

String Trimmer

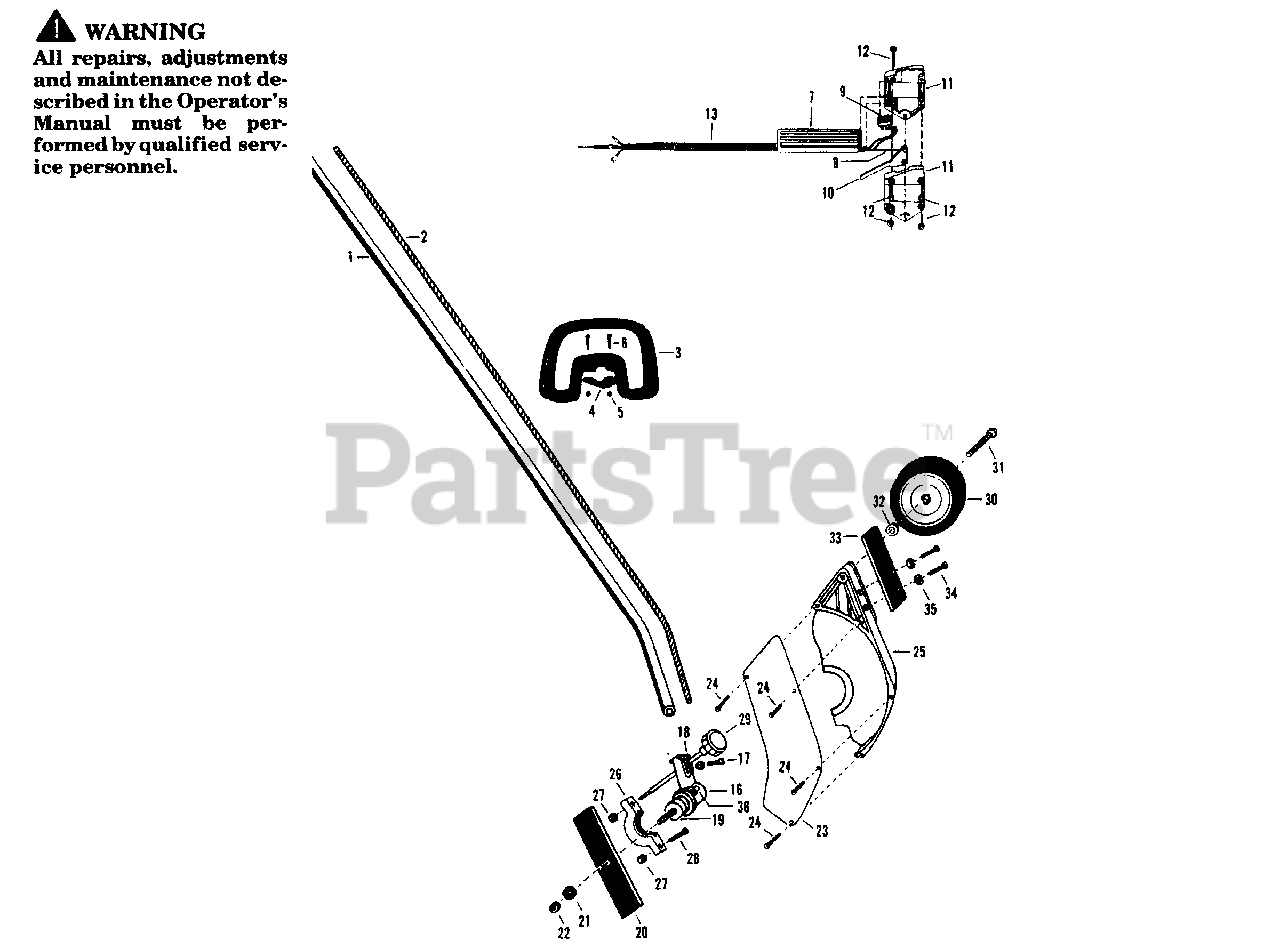

DRIVE SHAFT & BLADE ASSEMBLY Parts Diagram

  • Title

1

Poulan 216162S

Drive Shaft Housing

$46.99

$

Usually ships in 3-10 days

0

2

Poulan 216136S

Flexible Drive Shaft

$26.99

$

Usually ships in 3-10 days

0

3

Poulan 215806S

Tear Drop Handle (Incl. 4-6)

$20.99

$

Usually ships in 3-10 days

0

4

Poulan 212960S

Clamp, Handle

$6.49

$

Usually ships in 3-10 days

0

5

Poulan 212670S

Nut

$1.99

$

Usually ships in 3-10 days

0

6

Poulan 215807S

Screw, Button Hd. Cap

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 216040S

Grip

$8.99

$

Usually ships in 3-10 days

0

8

Poulan 216054S

Throttle Cable

$

$

Not available

9

Poulan 216736S

On/Off Switch w/Wires

$20.99

$

Usually ships in 3-10 days

0

10

Poulan 216041S

Trigger

$4.49

$

Usually ships in 3-10 days

0

11

Poulan 216042S

R.H. & L.H. Housing

$7.99

$

Usually ships in 3-10 days

0

12

Poulan 215512S

Screw Kit, Throttle Housing

$2.99

$

Usually ships in 3-10 days

0

13

Poulan 215516S

Cable & Wire Cover

$2.49

$

Usually ships in 3-10 days

0

16

Poulan 216140S

Gear Head Ass'y (Inc. 18 - 19) (Outside vendor part number)

$

$

Not available

18

Poulan 216305S

Screw/Washer Kit (Inc. 17 & 18)

$2.49

$

Usually ships in 3-10 days

0

19

Poulan 216149S

Cup Washer

$7.99

$

Usually ships in 3-10 days

0

20

Poulan 216152S

Blade

$14.99

$

Usually ships in 3-10 days

0

21

Poulan 209301S

Blade Washer

$2.99

$

Usually ships in 3-10 days

0

22

Poulan 209313S

Nut

$2.49

$

Usually ships in 3-10 days

0

23

Poulan 216153S

Side Plate

$9.49

$

Usually ships in 3-10 days

0

24

Poulan 216157S

Screw

$3.99

$

Usually ships in 3-10 days

0

25

Poulan 216154S

Blade Guard

$26.99

$

Usually ships in 3-10 days

0

26

Poulan 216161S

Blade Guard Bottom

$

$

Not available

27

Poulan 212670S

Nut

$1.99

$

Usually ships in 3-10 days

0

28

Poulan 205939S

Screw

$1.49

$

Usually ships in 3-10 days

0

29

Poulan 216209S

Adjustment Knob

$

$

Not available

30

Poulan 216151S

Wheel

$9.49

$

Usually ships in 3-10 days

0

31

Poulan 216158S

Bolt

$1.99

$

Usually ships in 3-10 days

0

32

Poulan 216325S

Washer

$2.49

$

Usually ships in 3-10 days

0

33

Poulan 216216S

Debris Flap

$8.99

$

Usually ships in 3-10 days

0

34

Poulan 200716S

Screw

$0.99

$

Usually ships in 3-10 days

0

35

Poulan 216227S

Washer

$2.49

$

Usually ships in 3-10 days

0

36

Poulan 216306S

Grease Plug

$2.49

$

Usually ships in 3-10 days

0
