PPB 5000 P - Poulan Pro Pole Pruner Attachment Pole Pruner Attachment Assembly Parts Diagram

Pole Pruner Attachment

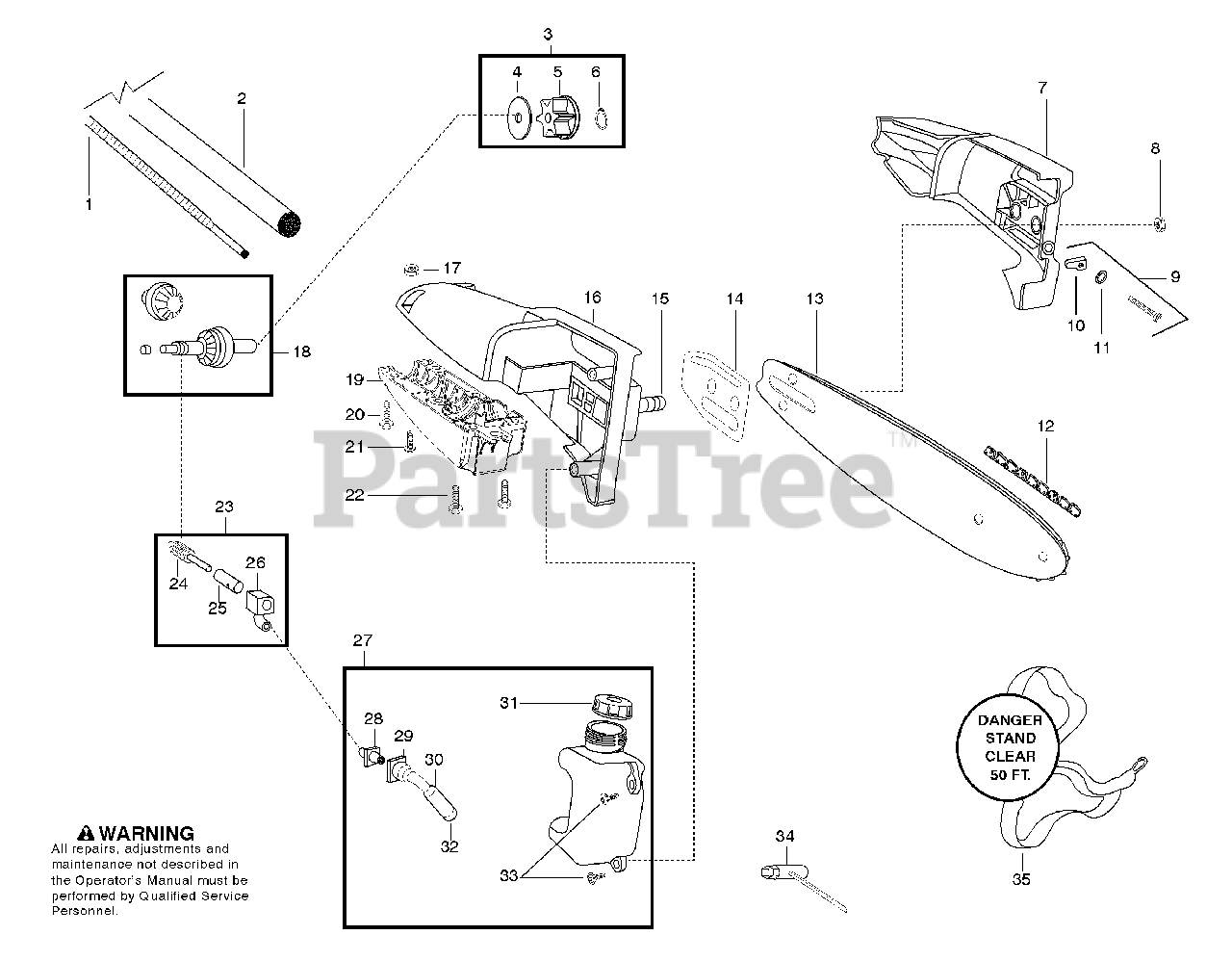

Pole Pruner Attachment Assembly Parts Diagram

  • Title

1

Poulan 545132001

Flexshaft - lower

$

$

Not available

2

Poulan 545092705

Assy. - Lower Driveshaft

$

$

Not available

3

Poulan 530071647

Kit - Sprocket Assy.

Note: (Incl. 4,5,6)

$17.99

$

Usually ships in 3-10 days

0

4

Poulan 530056521

Washer

$5.99

$

In Stock, only 2 left!

0

5

Poulan 530056520

Sprocket

$9.99

$

Usually ships in 3-10 days

0

6

Poulan 530056563

Retainer - Sprocket

$6.49

$

In Stock, only 2 left!

0

7

Poulan 530057100

Assy - Bar Clamp

Note: (Incl. 9)

$

$

Not available

8

Poulan 530015917

Nut - Bar Mounting

$3.99

$

In Stock, Qty 20+

0

9

Poulan 530069611

Kit - Bar Adjust

Note: (Incl. 10,11)

$9.49

$

In Stock, Qty 9

0

10

Poulan 530015826

Pin - Bar Adjust

$4.99

$

In Stock, Qty 20+

0

11

Poulan 530038593

Retainer - Bar Adjust

$4.99

$

In Stock, Qty 20+

0

12

Poulan 530051524

Chain - 8"
(Superseded to 585889919)

$

$

Not available

13

Poulan 530044908

Bar - 8"

$

$

Not available

14

Poulan 530056523

Plate - Bar Pad

$4.99

$

In Stock, only 1 left!

0

15

Poulan 530016133

Bolt - Bar

$6.49

$

In Stock, only 2 left!

0

16

Poulan 530056513

Housing - Upper

Note: (Incl. 15)

$

$

Not available

17

Poulan 530016284

Nut

$4.99

$

In Stock, only 4 left!

0

18

Poulan 530071646

Kit - Gear Assy.

$37.99

$

Usually ships in 3-10 days

0

19

Poulan 530056514

Housing - Lower

$

$

Not available

20

Poulan 530016312

Screw

$6.49

$

In Stock, only 3 left!

0

21

Poulan 530015805

Screw - Alignment
(Superseded to 530015886)

$6.49

$

In Stock, only 3 left!

0

22

Poulan 530015886

Screw

$6.49

$

In Stock, only 3 left!

0

23

Poulan 530071645

Kit - Oil Assy

Note: (Incl. 24,25,26,28)

$26.99

$

Usually ships in 3-10 days

0

24

Poulan 530053764

Assy. - Gear Plunger

$9.99

$

Usually ships in 3-10 days

0

25

Poulan 530053765

Barrel

$

$

Not available

26

Poulan 530057347

Assy- Oil Block

Note: (Incl. 25)

$12.99

$

In Stock, only 1 left!

0

27

Poulan 530056528

Assy - Oil Tank
(Superseded to 530150266)

Note: (Incl. 28,29,30,31,32)

$26.99

$

In Stock, only 1 left!

0

28

Poulan 530056524

Fitting - Oil Line

$4.99

$

Usually ships in 3-10 days

0

29

Poulan 530021160

Intake - Oil Line

$7.49

$

In Stock, only 1 left!

0

30

Poulan 530037821

Filter - Oil
(Superseded to 530056533)

$6.49

$

In Stock, only 2 left!

0

31

Poulan 530053072

Cap - Oil
(Superseded to 530150552)

$6.49

$

Usually ships in 3-10 days

0

32

Poulan 530030189

Plug - Oil Filter
(Superseded to 530056533)

$6.49

$

In Stock, only 2 left!

0

33

Poulan 530015843

Screw

$6.49

$

Usually ships in 3-10 days

0

34

Poulan 530031163

Wrench - Bar

$9.99

$

In Stock, Qty 12

0

35

Poulan 530094408

Strap-Shoulder
(Superseded to 530094417)

$

$

Not available

Poulan 545212830

Manual

Note: Not Shown

$

$

Not available

Poulan 545003066

Decal-shaft warning

Note: Not Shown

$

$

Not available

Poulan 530055395

Clamp harness-lower
(Superseded to 530071605)

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Poulan 530055392

Clamp harness-upper
(Superseded to 530071605)

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Poulan 530016406

Screw

Note: (harness clamp) Not Shown

$6.49

$

In Stock, only 1 left!

0

Poulan 530150031

Hanger-Att. (90 deg.)

Note: Not Shown

$4.99

$

In Stock, only 4 left!

0

Poulan 530031159

Wrench-hex (5/32)

Note: Not Shown

$4.99

$

In Stock, only 1 left!

0
