PPB 5000 P - Poulan Pro Chainsaw (2009-01) Product Completed Parts Diagram

Chainsaw

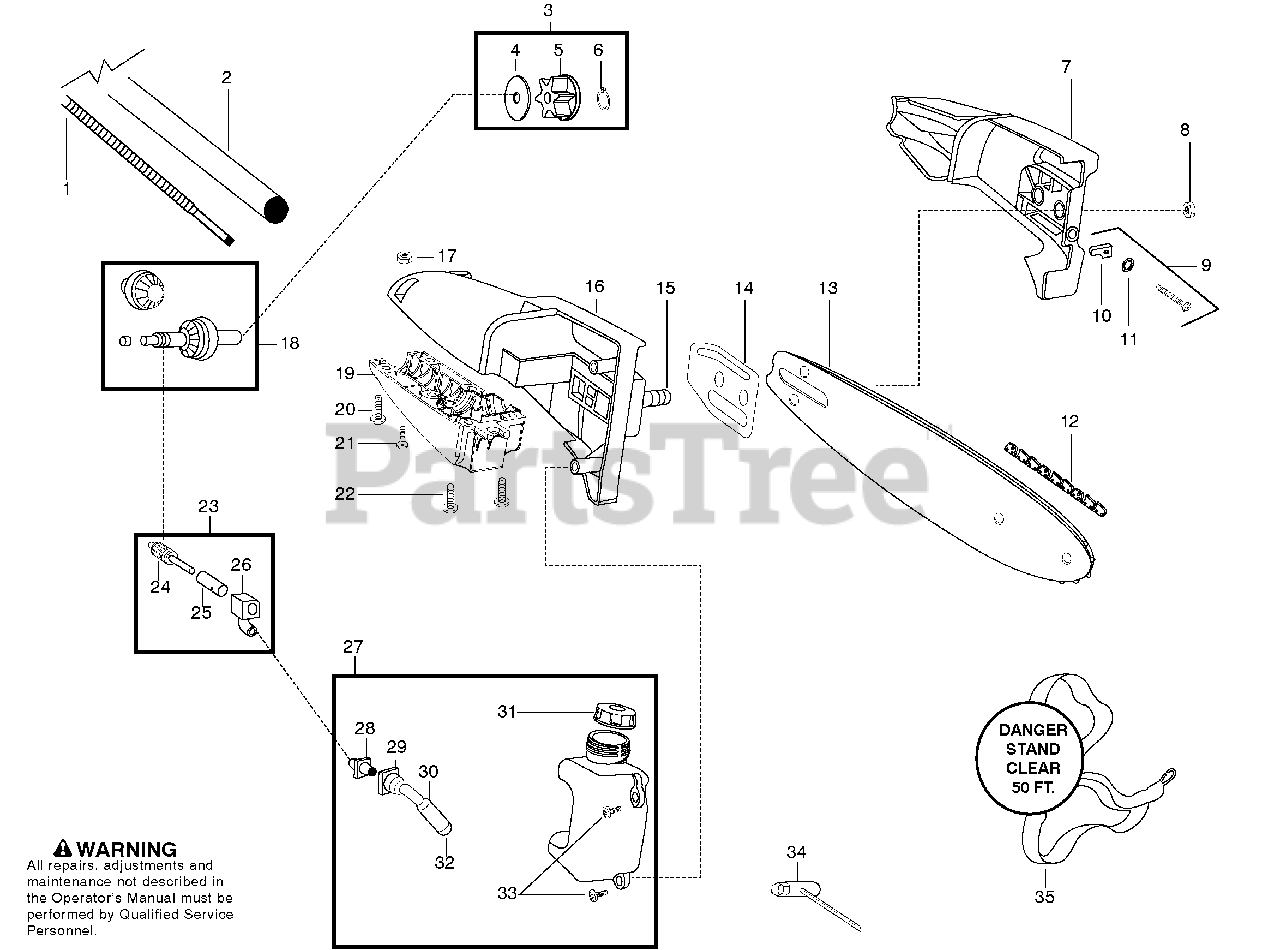

Product Completed Parts Diagram

  • Title

1

Electrolux/AYP 545132001

Flexshaft - lower

$

$

Not available

2

Electrolux/AYP 545092705

Assy. - Lower Driveshaft

$

$

Not available

3

Electrolux/AYP 530071647

Kit - Sprocket Assy.

Note: (Incl. 4,5,6)

$17.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 530056521

Washer

$5.99

$

In Stock, only 2 left!

0

5

Electrolux/AYP 530056520

Sprocket

$9.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 530056563

Retainer - Sprocket

$6.49

$

In Stock, only 2 left!

0

7

Electrolux/AYP 530057100

Assy - Bar Clamp

Note: (Incl. 9)

$

$

Not available

8

Electrolux/AYP 530015917

Nut - Bar Mounting

$3.99

$

In Stock, Qty 9

0

9

Electrolux/AYP 530069611

Kit - Bar Adjust

Note: (Incl. 10,11)

$9.49

$

In Stock, Qty 13

0

10

Electrolux/AYP 530015826

Pin - Bar Adjust

$4.99

$

In Stock, Qty 20+

0

11

Electrolux/AYP 530038593

Retainer - Bar Adjust

$4.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 530051524

Chain - 8"
(Superseded to 585889919)

$

$

Not available

13

Electrolux/AYP 530044908

Bar - 8"

$

$

Not available

14

Electrolux/AYP 530056523

Plate - Bar Pad

$4.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 530016133

Bolt - Bar

$6.49

$

In Stock, only 2 left!

0

16

Electrolux/AYP 530056513

Housing - Upper

Note: (Incl. 15)

$

$

Not available

17

Electrolux/AYP 530016284

Nut

$4.99

$

In Stock, only 4 left!

0

18

Electrolux/AYP 530071646

Kit - Gear Assy.

$37.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 530056514

Housing - Lower

$

$

Not available

20

Electrolux/AYP 530016312

Screw

$6.49

$

In Stock, only 3 left!

0

21

Electrolux/AYP 530015805

Screw - Alignment
(Superseded to 530015886)

$6.49

$

In Stock, only 3 left!

0

22

Electrolux/AYP 530015886

Screw

$6.49

$

In Stock, only 3 left!

0

23

Electrolux/AYP 530071645

Kit - Oil Assy

Note: (Incl. 24,25,26,28)

$26.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 530053764

Assy. - Gear Plunger

$9.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 530053765

Barrel

$7.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 530057347

Assy- Oil Block

Note: (Incl. 25)

$12.99

$

In Stock, only 1 left!

0

27

Electrolux/AYP 530056528

Assy - Oil Tank
(Superseded to 530150266)

Note: (Incl. 28,29,30,31,32)

$26.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 530056524

Fitting - Oil Line

$4.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 530021160

Intake - Oil Line

$7.49

$

In Stock, only 1 left!

0

30

Electrolux/AYP 530037821

Filter - Oil
(Superseded to 530056533)

$6.49

$

In Stock, only 2 left!

0

31

Electrolux/AYP 530053072

Cap - Oil
(Superseded to 530150552)

$6.49

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 530030189

Plug - Oil Filter
(Superseded to 530056533)

$6.49

$

In Stock, only 2 left!

0

33

Electrolux/AYP 530015843

Screw

$6.49

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 530031163

Wrench - Bar

$9.99

$

In Stock, Qty 12

0

35

Electrolux/AYP 530094408

Strap-Shoulder
(Superseded to 530094417)

$

$

Not available

35

Electrolux/AYP 545212830

Manual

Note: Not Shown

$

$

Not available

35

Electrolux/AYP 545003066

Decal-shaft warning

Note: Not Shown

$

$

Not available

35

Electrolux/AYP 530055395

Clamp harness-lower
(Superseded to 530071605)

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 530055392

Clamp harness-upper
(Superseded to 530071605)

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 530016406

Screw (harness clamp)

Note: Not Shown

$6.49

$

In Stock, only 1 left!

0

35

Electrolux/AYP 530150031

Hanger-Att.(90 deg.)

Note: Not Shown

$4.99

$

In Stock, only 4 left!

0

35

Electrolux/AYP 530031159

Wrench-hex (5/32)

Note: Not Shown

$4.99

$

In Stock, only 1 left!

0
