PPB 4218 - Poulan Pro Chainsaw, Type 2 (2008-07) Engine - Type 2 Parts Diagram

Chainsaw, Type 2

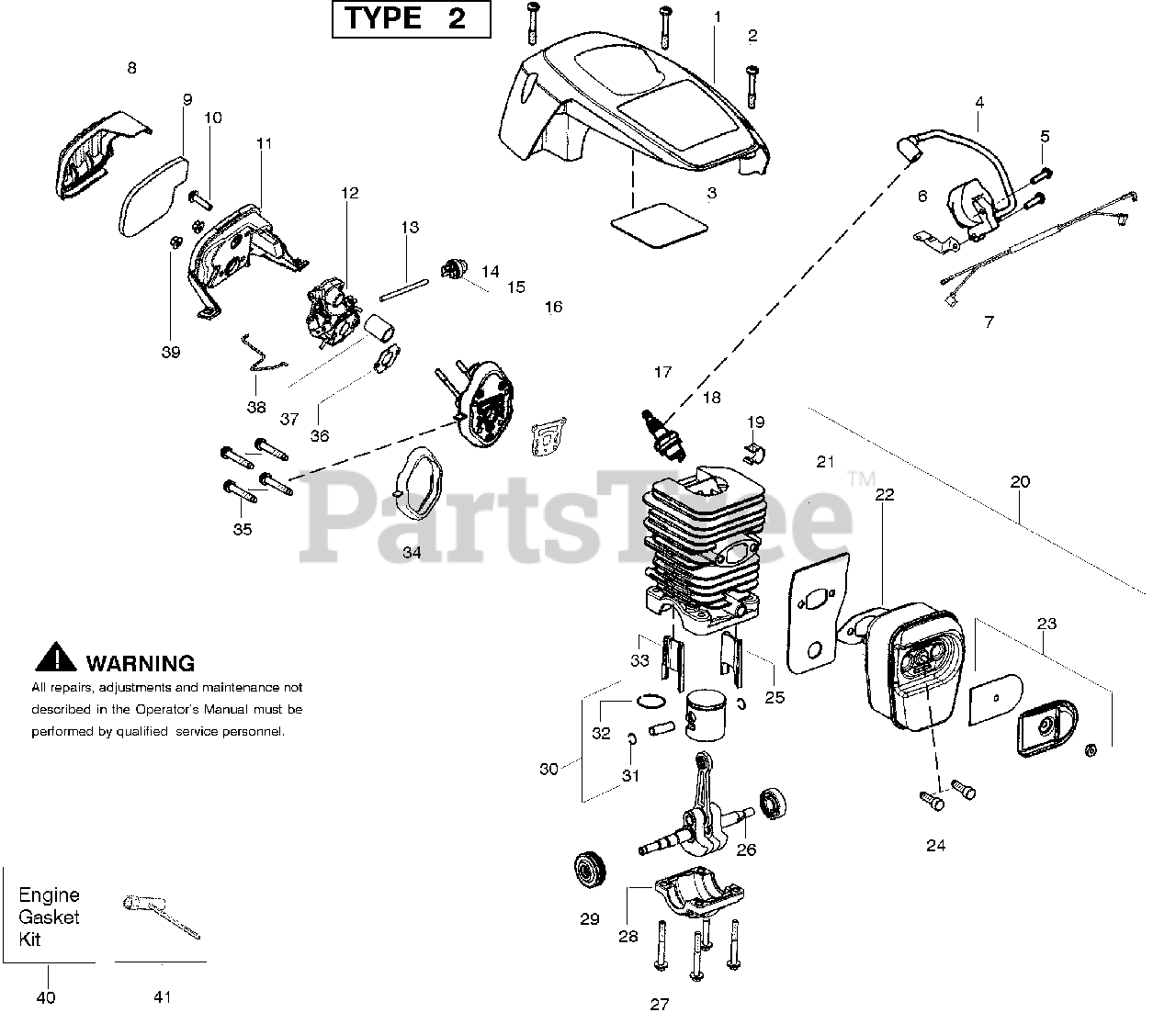

Engine - Type 2 Parts Diagram

  • Title

1

Electrolux/AYP 530058837

Shield-Cylinder

Note: (incl. #3)

$15.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 530016153

Screw

$6.49

$

In Stock, only 2 left!

0

3

Electrolux/AYP 530059006

Reflector-Tape

$

$

Not available

4

Electrolux/AYP 530039238

Module - Ignition

$74.99

$

In Stock, only 4 left!

0

5

Electrolux/AYP 530016432

Screw

$6.49

$

In Stock, Qty 7

0

6

Electrolux/AYP 530047442

Strap-Ground

$3.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 530057943

Assy-Wire Harness

$7.99

$

In Stock, Qty 12

0

8

Electrolux/AYP 530058687

Cover-Air Filter

$5.99

$

In Stock, Qty 9

0

9

Electrolux/AYP 530057925

Filter-Air

$5.99

$

In Stock, only 1 left!

0

10

Electrolux/AYP 530016425

Screw

$6.49

$

In Stock, only 1 left!

0

11

Electrolux/AYP 530057892

Housing-Air Filter

$8.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 545070601

Carb-Zama W-26B

Note: (Incl. 14)

$56.99

$

In Stock, Qty 6

0

13

Electrolux/AYP 530069247

Kit-Fuel Line (Small)

$7.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 530047721

Bulb-Purge "snap-in"

$9.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 530071889

Kit-Carb. Adaptor

Note: ( Incl. # 16,34,37)

$26.99

$

In Stock, only 1 left!

0

16

Electrolux/AYP 530071894

Gasket-cyl. o-ring (kit)

$11.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 952030150

Accy-Spark Plug (RCJ-7Y)

$3.49

$

In Stock, Qty 20+

0

18

Electrolux/AYP 530071884

Kit-Cylinder

Note: (Incl. 25,33)

$56.99

$

In Stock, only 1 left!

0

19

Electrolux/AYP 530016136

Clip-High Tension Lead

$3.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 545006007

Kit-Muffler

Note: (Incl. 21,22,23,24)

$26.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 530057942

Backplate-Muffler

$

$

Not available

22

Electrolux/AYP 530071894

Gasket-Muffler (kit)

$11.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 545006056

Kit-Spark Arrestor

$10.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 530016338

Bolt-Muffler

$3.99

$

In Stock, only 2 left!

0

25

Electrolux/AYP 545015301

Insert-Left (black) Cyl.

$4.99

$

In Stock, only 4 left!

0

26

Electrolux/AYP 530012537

Assy-Crankshaft/Rod
(Superseded to 545112901)

$66.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 530016417

Bolt

$6.49

$

In Stock, Qty 5

0

28

Electrolux/AYP 530057941

Cap-Crankcase

$8.99

$

In Stock, only 1 left!

0

29

Electrolux/AYP 530056363

Assy-Bearing/Seal

$18.99

$

In Stock, only 2 left!

0

30

Electrolux/AYP 530071883

Kit-Piston

Note: (Incl. 31,32)

$34.99

$

In Stock, only 4 left!

0

31

Electrolux/AYP 530015697

Retainer-Piston Pin

$6.49

$

In Stock, Qty 6

0

32

Electrolux/AYP 530038729

Ring-Piston
(Superseded to 545160401)

$6.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 545015401

Insert-Right (gray) Cyl.

$6.49

$

In Stock, only 3 left!

0

34

Electrolux/AYP 530071894

Seal-Adaptor (kit)

$11.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 530016426

Screw

$6.49

$

In Stock, only 2 left!

0

36

Electrolux/AYP 530071894

Gasket-Carb. (kit)

$11.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 530057926

Tube-Intake

$5.99

$

In Stock, Qty 6

0

38

Electrolux/AYP 530057909

Wire-Throttle

$

$

Not available

39

Electrolux/AYP 530016101

Nut-Carb.

$6.49

$

In Stock, only 2 left!

0

40

Electrolux/AYP 530071894

Kit-Gasket

Note: (Incl . 16,22,34,36)

$11.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 530031163

Wrench-Bar

$9.99

$

In Stock, Qty 12

0

41

Electrolux/AYP 545186810

Manual-Operator

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 530059107

Decal-Warning

Note: Not Shown

$

$

Not available
