PPB 330 - Poulan String Trimmer (2009-01) Shaft Parts Diagram

String Trimmer

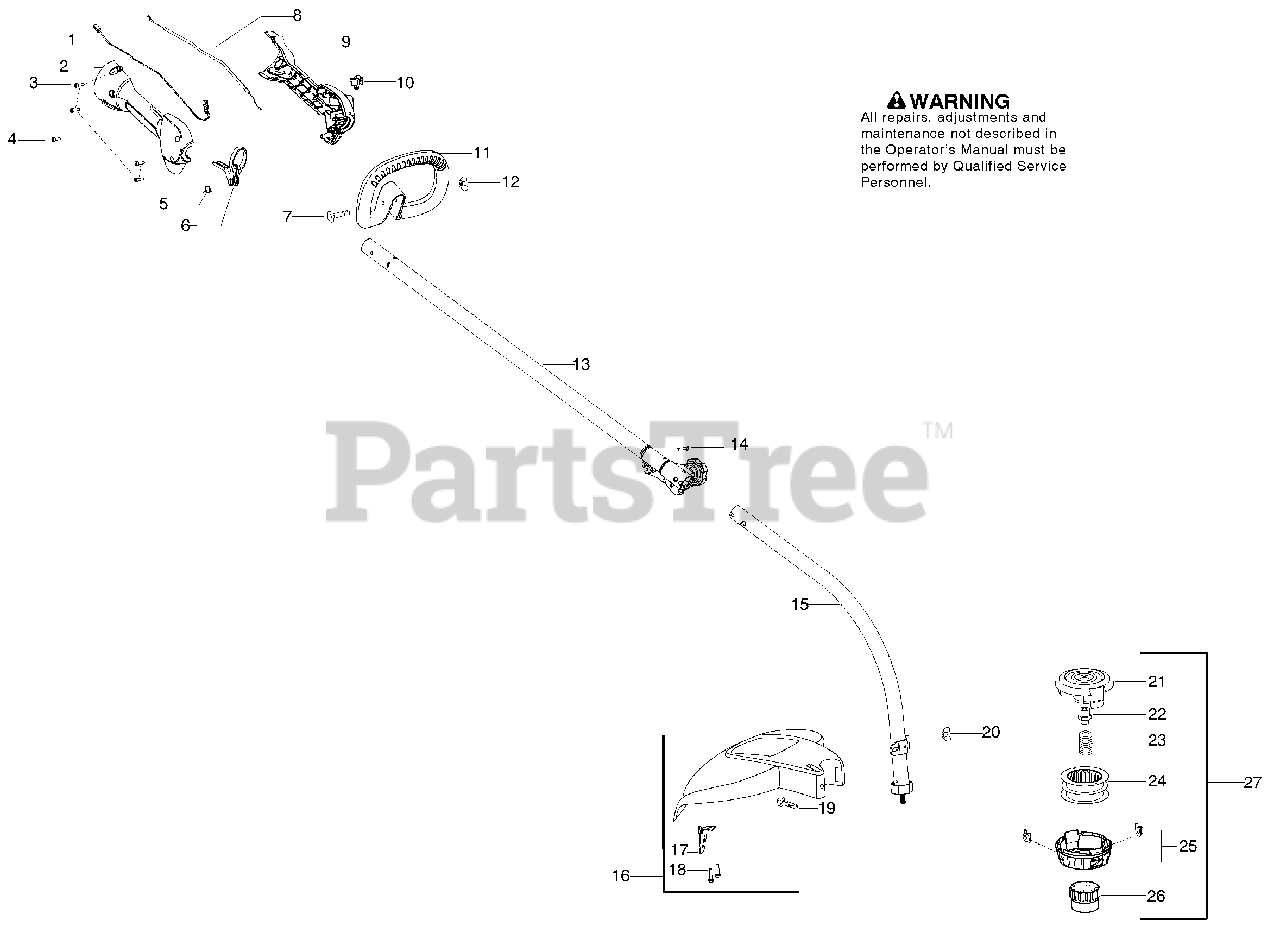

Shaft Parts Diagram

  • Title
1

Electrolux/AYP 545191801

Assy-Switch Wire

$

$

Not available

2

Electrolux/AYP 545189402

Housing-Throttle (RH)

$

$

Not available

$6.49

$

In Stock, only 2 left!

0

4

Electrolux/AYP 530015805

Screw 10-14 x 1/2
(Superseded to 530015886)

$6.49

$

In Stock, only 3 left!

0

5

Electrolux/AYP 545190001

Spring-Trigger

$3.49

$

In Stock, only 4 left!

0

6

Electrolux/AYP 545008073

Kit - Trigger
(Superseded to 545008077)

Note: (Incl. 5)

$

$

Not available

7

Electrolux/AYP 530015786

Bolt - 1/4-20 x 2

$4.99

$

In Stock, only 4 left!

0

8

Electrolux/AYP 545199301

Assy - Throttle Cable

$

$

Not available

9

Electrolux/AYP 545189302

Housing-Throttle (LH)

$

$

Not available

10

Electrolux/AYP 545008040

Kit-Switch
(Superseded to 545049309)

$4.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 530058583

Assy - Handle Assist

Note: (Incl. 7,12)

$6.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 530016152

Wingnut - 1/4-20
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

13

Electrolux/AYP 545006039

Kit-Driveshaft Upper

Note: (Incl.#14)

$

$

Not available

14

Electrolux/AYP 530016344

Screw - 12-24 x .480

$

$

Not available

15

Electrolux/AYP 545024301

Kit-Driveshaft Lower
(Superseded to 530071788)

$66.99

$

In Stock, only 2 left!

0

16

Electrolux/AYP 530071824

Kit-Shield

Note: (Incl. 17,18,19,20)

$31.99

$

Usually ships in 3-10 days

0

17

$4.99

$

In Stock, only 2 left!

0

18

Electrolux/AYP 530015814

Screw - 10-14 x 3/4

$6.49

$

In Stock, Qty 16

0

19

Electrolux/AYP 530015820

Bolt - 1/4-20 x 1-1/4

$4.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 530016152

Wingnut - 1/4-20
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

$11.99

$

Usually ships in 3-10 days

0

$11.99

$

In Stock, only 4 left!

0

23

Electrolux/AYP 537338801

Spring
(Superseded to 537338801)

$6.49

$

In Stock, only 2 left!

0

24

$

$

Not available

25

Electrolux/AYP 545003365

Kit - Cover and eyelet

$9.49

$

In Stock, only 1 left!

0

26

Electrolux/AYP 537419601

Knob
(Superseded to 537419601)

$6.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 952701717

Accy - TNG 7 Cutting Head
(Superseded to 590267601)

Note: (Incl. 21,22,23,24,25,26)

$32.99

$

In Stock, only 2 left!

0

27

Electrolux/AYP 545186798

Manual

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 545209101

Decal-Shaft Warning (lower)

Note: Not Shown

$

$

Not available

27

Electrolux/AYP 545167716

Decal-Shaft Warning (upper)

Note: Not Shown

$

$

Not available
