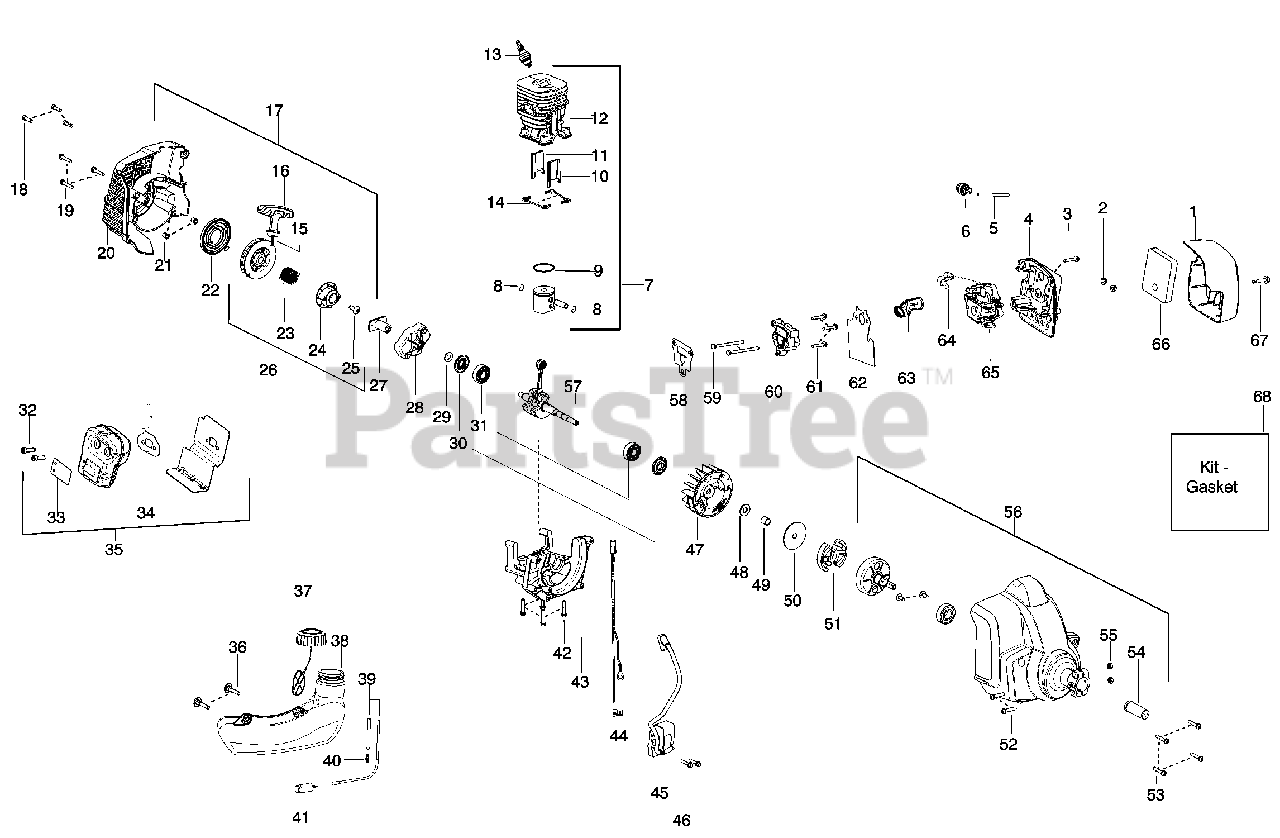

PPB 330 - Poulan Pro String Trimmer, Type 2 Engine Assembly Parts Diagram

String Trimmer, Type 2

Engine Assembly Parts Diagram

  • Title

1

Poulan 545189001

Cover - Airbox

$8.99

$

In Stock, only 1 left!

0

2

Poulan 530016101

Nut - Carb. Screw

$6.49

$

Usually ships in 3-10 days

0

3

Poulan 530016301

Screw 8-32

$6.49

$

In Stock, only 4 left!

0

4

Poulan 545188901

Base - Airbox

$9.49

$

Usually ships in 3-10 days

0

5

Fuel line - Purge Bulb

Note: (Ref. 39)

$

$

Not available

6

Poulan 530047721

Assy - Purge Bulb

$9.49

$

Usually ships in 3-10 days

0

7

Poulan 545008046

Kit - Piston/Cylinder

Note: (Incl. 8,9,10,11,12)

$

$

Not available

8

Poulan 545194801

Retainer - Piston pin

$3.99

$

In Stock, only 1 left!

0

9

Poulan 545194601

Ring - Piston

$6.49

$

In Stock, only 1 left!

0

10

Poulan 545194901

Insert - Front Transfer Port

$2.49

$

Usually ships in 3-10 days

0

11

Poulan 545195001

Insert - Rear Transfer Port

$

$

Not available

12

Poulan 545181801

Cylinder - Machined

$

$

Not available

13

Poulan 952030249

Spark Plug

Note: (RCJ- 6Y)

$4.49

$

In Stock, Qty 20+

0

14

Poulan 545008044

Seal - Cylinder

Note: (Kit)

$10.99

$

In Stock, only 1 left!

0

15

Poulan 545029901

Kit - Rope

$14.99

$

In Stock, only 2 left!

0

16

Poulan 545208401

Handle - Starter

$7.99

$

Usually ships in 3-10 days

0

17

Poulan 545212701

Assy - Starter/Shroud

Note: (Incl. 15,16,20,21,22,26)

$31.99

$

In Stock, Qty 7

0

18

Poulan 530016449

Screw M4 x 1.75

$6.49

$

In Stock, only 2 left!

0

19

Poulan 530015897

Screw m5x25mm

$6.49

$

In Stock, Qty 19

0

20

Poulan 545191201

Assy - Starter Hsg. w/eyelet
(Superseded to 545212701)

$31.99

$

In Stock, Qty 7

0

21

Poulan 545185301

Spacer

$3.99

$

Usually ships in 3-10 days

0

22

Poulan 545008013

Kit - Starter Spring

$6.99

$

In Stock, Qty 8

0

23

Poulan 545188301

Spring - Starter Hub

$6.49

$

In Stock, only 1 left!

0

24

Poulan 545188001

Hub - Starter

$6.49

$

Usually ships in 3-10 days

0

25

Poulan 545112801

Screw m6

$4.99

$

In Stock, only 3 left!

0

26

Poulan 545008049

Kit - Starter Pulley

Note: (Incl. 23,24,25)

$31.99

$

Usually ships in 3-10 days

0

27

Poulan 545188201

Coupling - Starter

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 545188701

Assy - Starter Cup

$7.49

$

In Stock, only 3 left!

0

29

Poulan 530015828

Washer - Flat

$4.99

$

Usually ships in 3-10 days

0

30

Poulan 545008044

Seal - Crankshaft

Note: (kit)

$10.99

$

In Stock, only 1 left!

0

31

Poulan 545013401

Bearing - Crankshaft

$10.99

$

Usually ships in 3-10 days

0

32

Poulan 530058982

Bolt - Muffler

$4.99

$

In Stock, Qty 7

0

33

Poulan 545008070

Kit - Spark Arrestor
(Superseded to 545224001)

$4.99

$

In Stock, only 1 left!

0

34

Poulan 545008044

Gasket - Muffler

Note: (kit)

$10.99

$

In Stock, only 1 left!

0

35

Poulan 545180701

Assy - Muffler

Note: (Incl. 32,33,34)

$18.99

$

In Stock, only 1 left!

0

36

Poulan 530016445

Screw - Tank Retainer

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 545215901

Assy - Fuel Cap w/ret.
(Superseded to 578931605)

$9.49

$

Usually ships in 3-10 days

0

38

Poulan 545182101

Assy - Tank
(Superseded to 578942701)

Note: (Incl. 37,39,40,41)

$

$

Not available

39

Poulan 530069599

Kit - Fuel line

Note: (Incl. 40)

$7.49

$

In Stock, only 2 left!

0

40

Poulan 530023877

Fitting - Fuel Line

$5.99

$

In Stock, Qty 17

0

41

Poulan 530095646

Assy - Fuel Pickup

$6.99

$

In Stock, Qty 16

0

42

Poulan 530015897

Screw - m5x25mm

$6.49

$

In Stock, Qty 19

0

43

Poulan 545181901

Crankcase

$21.99

$

Usually ships in 3-10 days

0

44

Poulan 545191601

Assy - Leadwire

$4.99

$

Usually ships in 3-10 days

0

45

Poulan 545189701

Module - Ignition

$37.99

$

In Stock, only 1 left!

0

46

Poulan 530016357

Screw 8-32

$6.49

$

In Stock, only 4 left!

0

47

Poulan 545120401

Flywheel

$14.99

$

Usually ships in 3-10 days

0

48

Poulan 530016463

Washer

$6.99

$

In Stock, only 3 left!

0

49

Poulan 530057852

Spacer - Flywheel

$10.99

$

In Stock, only 2 left!

0

50

Poulan 530094189

Washer - Clutch

$6.99

$

In Stock, only 1 left!

0

51

Poulan 545008038

Kit - Clutch Assy.
(Superseded to 530055122)

$20.99

$

In Stock, Qty 5

0

52

Poulan 530015774

Screw 10-24 x 1"

$6.49

$

In Stock, only 1 left!

0

53

Poulan 530015897

Screw M5 x 25mm

$6.49

$

In Stock, Qty 19

0

54

Poulan 545186401

Guide - Clutch Drum

$

$

Not available

55

Poulan 530015768

Locknut 10-24

$6.49

$

In Stock, only 2 left!

0

56

Poulan 545212401

Assy - Fan Housing

Note: (Incl. 52,54,55)

$

$

Not available

57

Poulan 545008047

Kit - Crankshaft Assy.
(Superseded to 545194001)

$39.22

$

Usually ships in 3-10 days

0

58

Poulan 545008044

Gasket - Adapter/Cyl.

Note: (kit)

$10.99

$

In Stock, only 1 left!

0

59

Poulan 530016418

Bolt M5 x .80

$4.99

$

Usually ships in 3-10 days

0

60

Poulan 574816201

Adaptor - Carburetor
(Superseded to 575391501)

$10.99

$

In Stock, only 1 left!

0

61

Poulan 530016441

Screw .20 x 32

$6.49

$

Usually ships in 3-10 days

0

62

Poulan 545008044

Gasket - Carb./Adapter

Note: (kit)

$10.99

$

In Stock, only 1 left!

0

63

Poulan 545190501

Boot - Carb.

$4.99

$

In Stock, only 4 left!

0

64

Poulan 574719701

Lever - Choke

$11.99

$

In Stock, only 2 left!

0

65

Poulan 545008054

Kit - Carburetor
(Superseded to 525810501)

Note: (Incl. 5,6)

$

$

Not available

66

Poulan 545195901

Filter - Air

$4.99

$

Usually ships in 3-10 days

0

67

Poulan 530016465

Bolt - Knob

$4.99

$

Usually ships in 3-10 days

0

68

Poulan 545008044

Kit - Gasket

Note: (Incl. 14,30,34,58,62)

$10.99

$

In Stock, only 1 left!

0
